Description
Technical Data
Applications
- Effluent pumping in industrial wastewater treatment plants.
- Sewage wastewater and solid treatment in various factories and building sites.
- Food processing factory.
- Confined livestock feeding industry.
- Pulp and paper factory.
- Residential houses.
- Restaurants and shops.
- Markets and supermarkets.

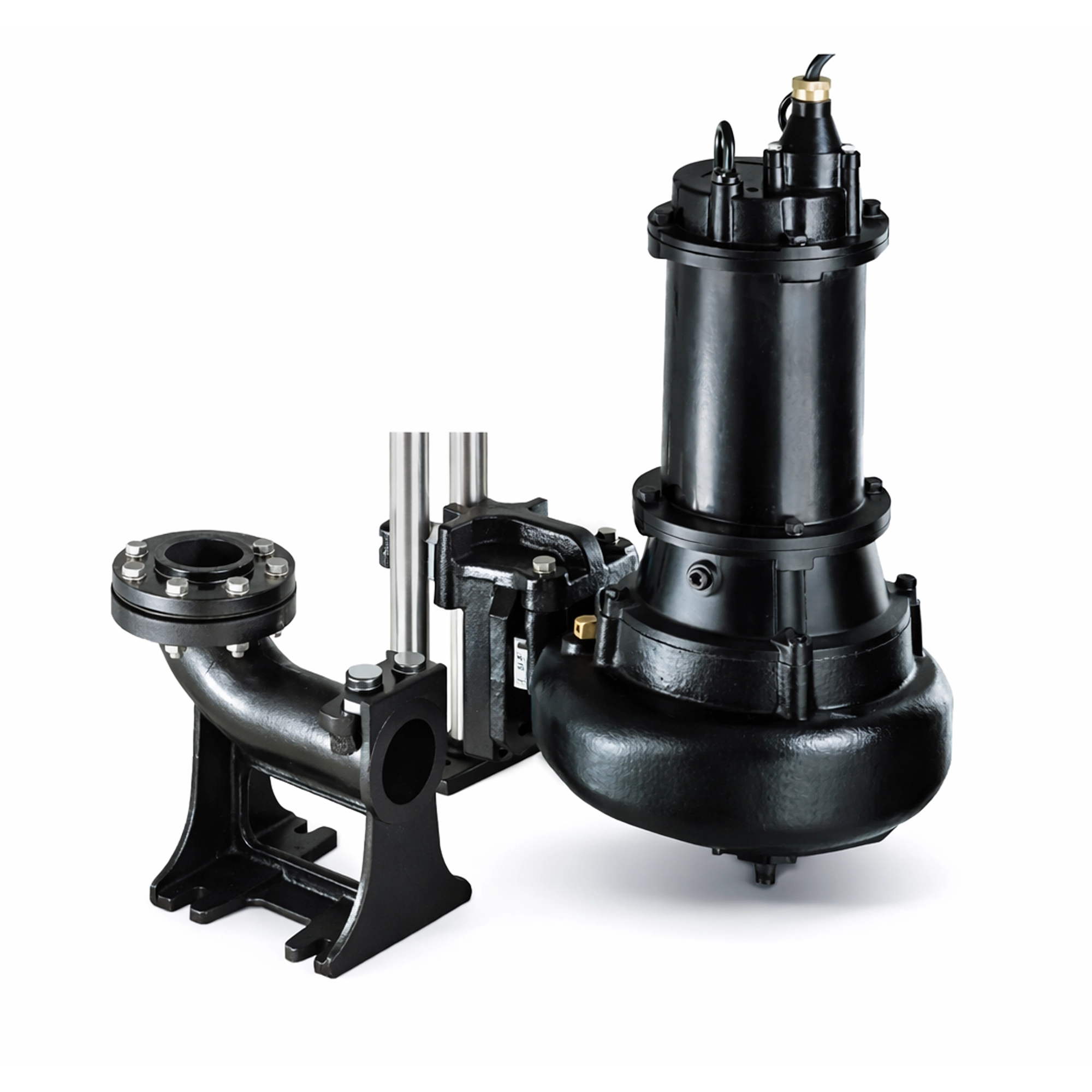

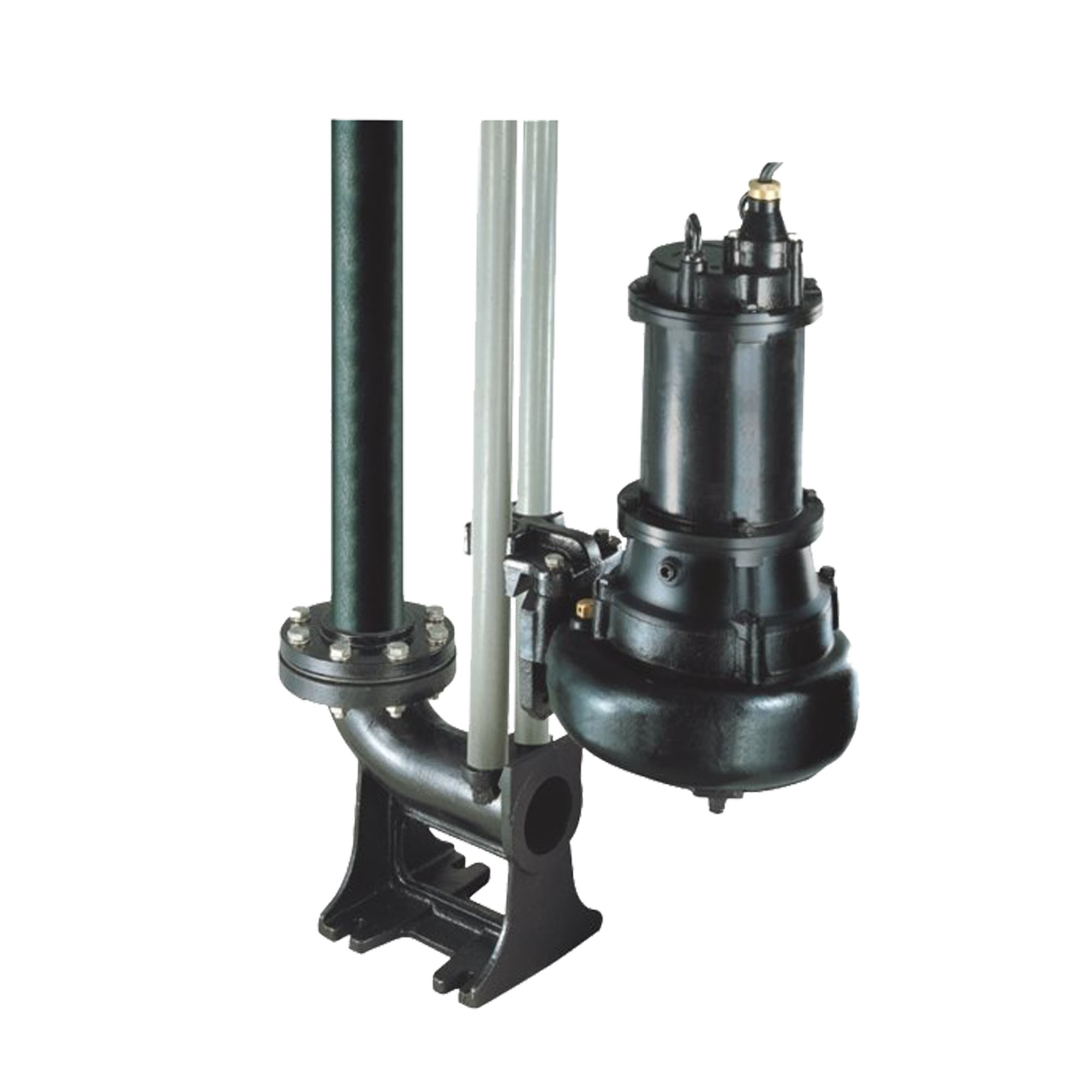

The automatic connecting device performs connection and disconnection between a pump and piping only by lifting the pump down I up along guide pipes, so the maintenance and inspection work can be done without entering the pump sump.
Performance Curve
| Model | Motor | Pump | ||||||||
| Power | Phase | Volt | Revolution | Pump Outlet Discharge | Max. Head | Max. Flow | Solid Passage | |||
| HP | KW | PH | V | Rpm | Inch | Mm | Ft | Gal/Min | Inch | |
| GSTO-532 | 5 | 3.7 | 3 | 230V | 1800 | 4 | 100 | 59 | 533 | 2.1 x 1.9 |
Dimensions
| Size (inch) | Weight (lbs.) | ||||||||
| A | B | C | D | E | F | G | H | I | |
| 29.7 | 14.4 | 12.2 | 4.6 | 11.1 | 25.9 | 29.4 | 10.6 | Ø 3.9 (Ø 3.1) | 268.4 |
Parts and Materials
Components
Installation
