Description

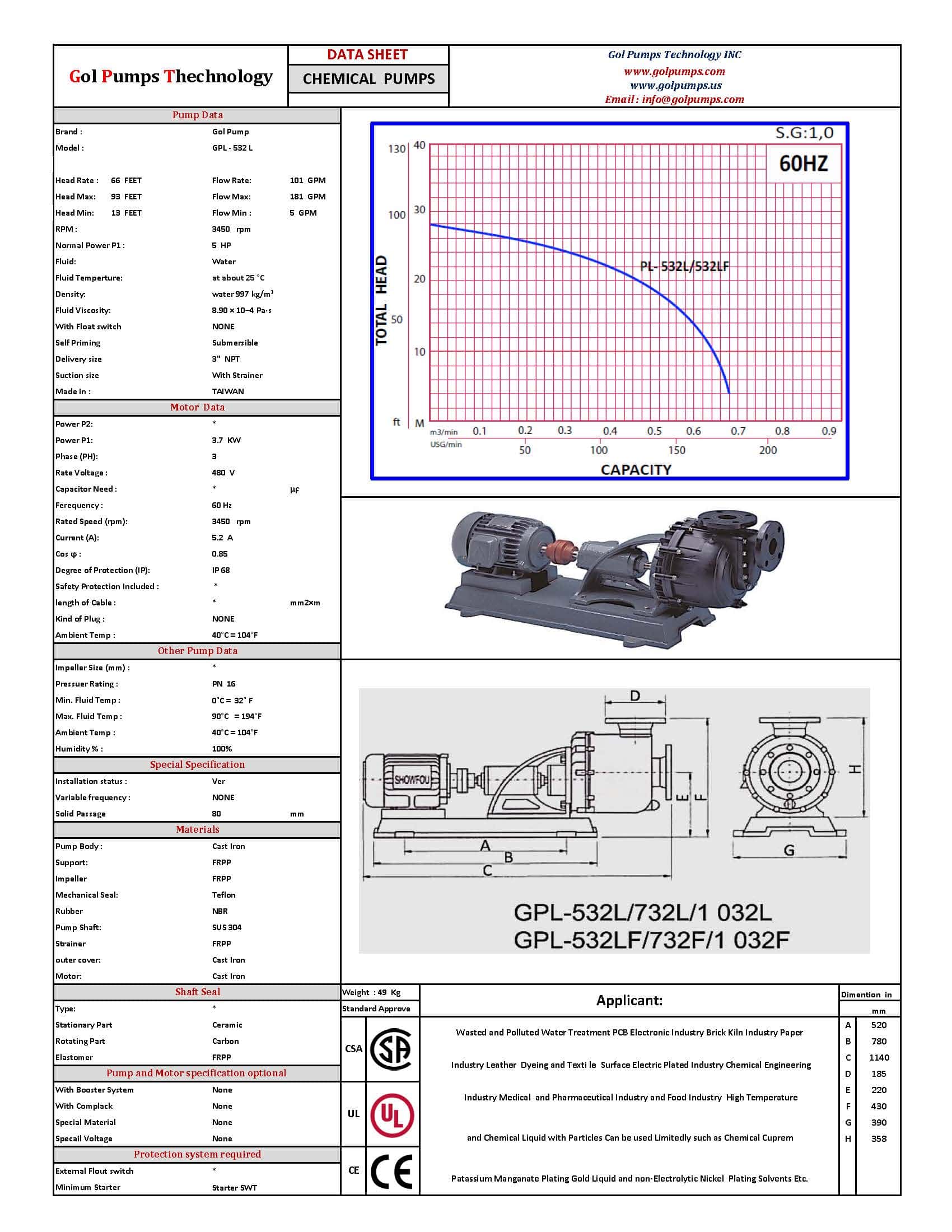

Download Data Sheet PDF | Download GPL-Manual

FRPP: Fiber Reinforced Polypropylene

• Equipped with Teflon Bellow Seal
• The weight of motor are not included
• Especially design for electroplating industries.
• The motors of PUPL-F need to be ordered separately

Applications

• Wasted and polluted water treatment.
• PCB electronic industry brick kiln industry.
• Paper industry, leather industry, dyeing and text.
• Surface electric plated industry.
• Chemical engineering industry.
• Medical and pharmaceutical industry and food industry.

More Spec.

Performance Curve:

Structure:

Dimensions:

Installation:

1. For the first installation, please fill the pump the liquid to prevent the mechanical seal damage.
2. Lay down a strainer at the suction inlet of pipe to avoid incoming rubbish and foreign matter, and we also recommend you to use a foot valve at the suction inlet of pipe to get  even better performance.
3. Place a check valve at discharge pipe line and air bypass under the check valve in order to avoid breakage by water hammer.
4. In case of high temperature liquid over 40″C, place flexible joints and bending in pipe line to avoid piping load to pump by pipe’s expansion.
5. Avoid deformation of pump by over-tightening when using a flexible joint, a loose flange made of metal or an inner packing on the piping line.
6. Place each flange surface of pipe and pump in parallel and do not over-tightening by bolts.
7. Use resin pipe, avoid metal pipe as much as possible.
