GPE-0532F Chemical Pump – 0.5HP, 230V , 3P, 3,012GPH – FRPP

$1,101.00

 Download Data Sheet PDF | Download GPE-Manual

FRPP: Fiber Reinforced Polypropylene

Material:

Gol pump provide FRPP and PVDF pump body to meet customer’s requirement.

Features

Seal less structure

The seal less principal of fluid in our Show flour vertical seal less is to utilize the pressure, viscosity, and friction of the fluid. During running, the fluid flowing to shaft caused by inner pressure. But the specially designed two-layered impeller enables to seal up the fluid successfully and reduce the suction air to enter the pump, the inner will keep high vacuum situation.



Estimated Delivery: 3 – 5 Business Days

SKU: 3846110 Categories: , ,

Description

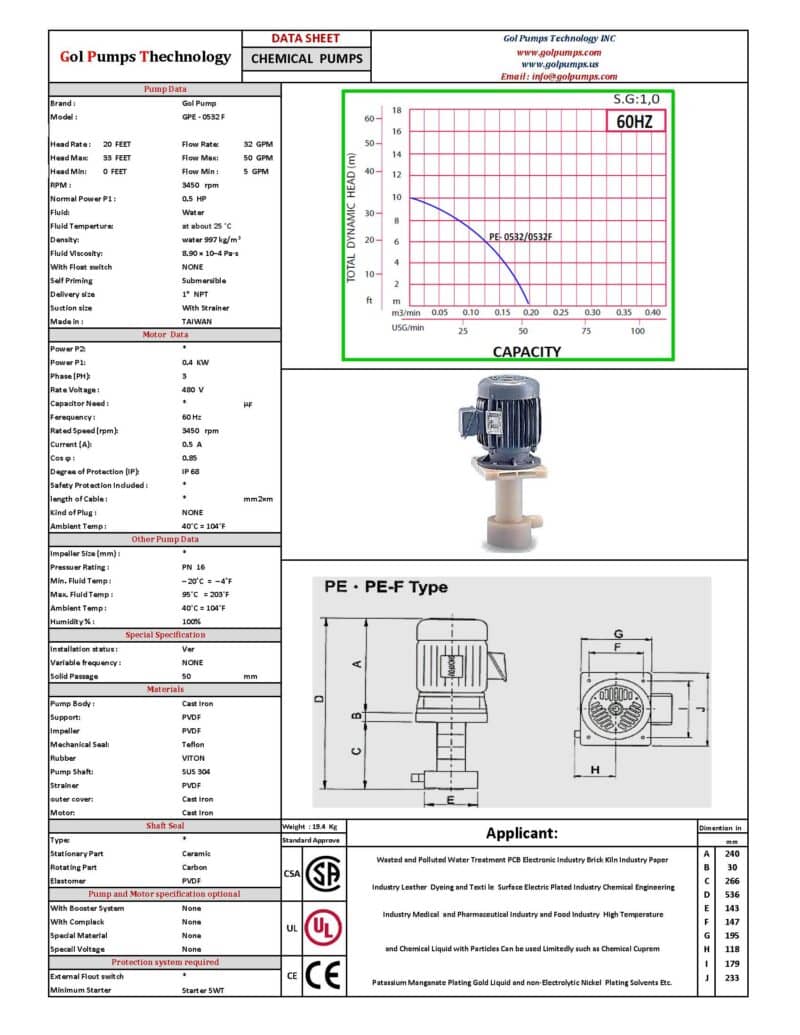

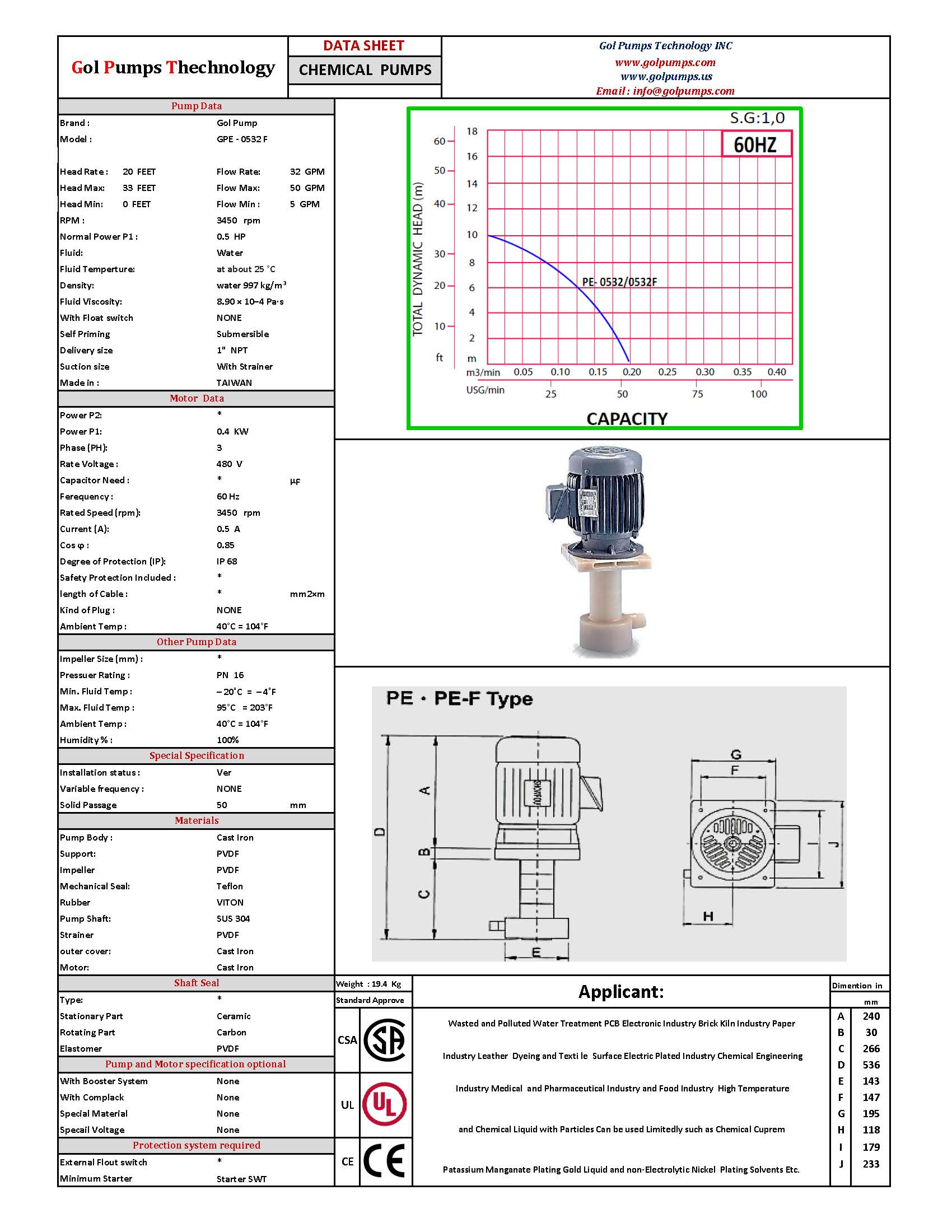

GPE-0532F Chemical Pump - Data Sheet

 Download Data Sheet PDF | Download GPE-Manual

FRPP: Fiber Reinforced Polypropylene

Material:

Gol pump provide FRPP and PVDF pump body to meet customer’s requirement.

Features

Seal less structure

The seal less principal of fluid in our Show flour vertical seal less is to utilize the pressure, viscosity, and friction of the fluid. During running, the fluid flowing to shaft caused by inner pressure. But the specially designed two-layered impeller enables to seal up the fluid successfully and reduce the suction air to enter the pump, the inner will keep high vacuum situation.

Dry Cunning Ability

Superior construction design, there is no any contact between the pump body and the impeller. Owing to no any friction caused in running, the long period dry running will not cause any damage with pump
Hz TYPE S.G MOTOR PUMP
FRPP POWER PHASE VOLT BORE SIZE MAX. HEAD MAX.FLOW
KW/HP PH V INLET(INCH) OUTLET(INCH) FT GAL/MIN
60 GPE-0532F 1 0.4KW/0.5HP 3 230V-3PH 2 1 33 50

More Spec.

WEIGHT HEIGHT PUMP DIA
LBS INCH INCH
43 21 9

Performance Curve:

GPE-0532F Chemical Pump - Performance Curve

Features:

GPE-0532F Chemical Pump - Parts

Dimensions:

GPE-0532F Chemical Pump - Dimensions

TYPE Bore Size A B C D E F G H I J
Inlet Outlet
GPE-0532F 2 1 9 1 10 21 6 6 8 5 7 9
