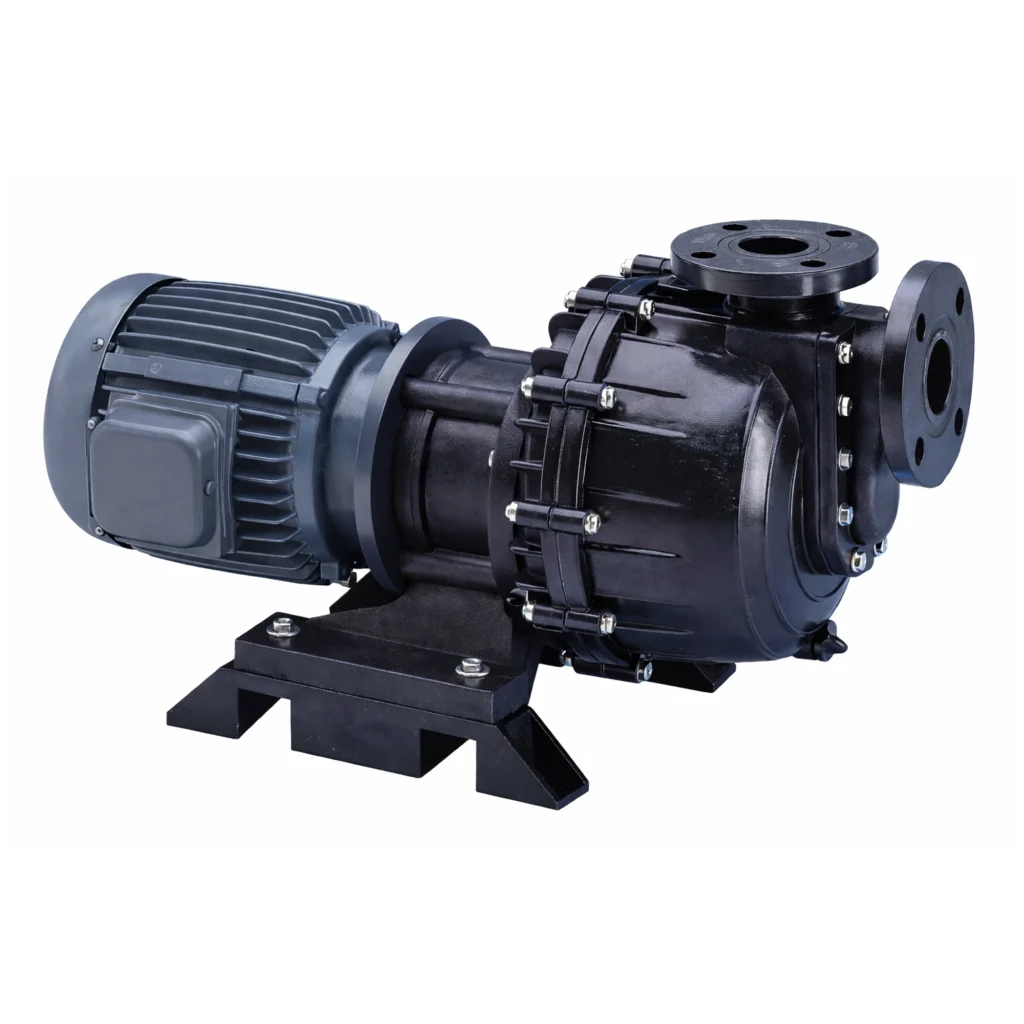

GPD-532L Chemical Pump – 5HP, 230V , 3P, 10,800GPH – FRPP

$2,494.00

Download PDF | Download GPD-Manual

FRPP: Fiber Reinforced Polypropylene

  • Equipped with Teflon Bellow Seal
  •  The weight of motor are not included.
  • Especially design for electroplating industries.
  • The motors of PUPL-F need to be ordered separately.

Material:

Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.

Features

Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids

Self-priming ability

Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate

Teflon Bellow Seal

Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.

Estimated Delivery: 3 – 5 Business Days

SKU: 3846108 Categories: , ,

Description

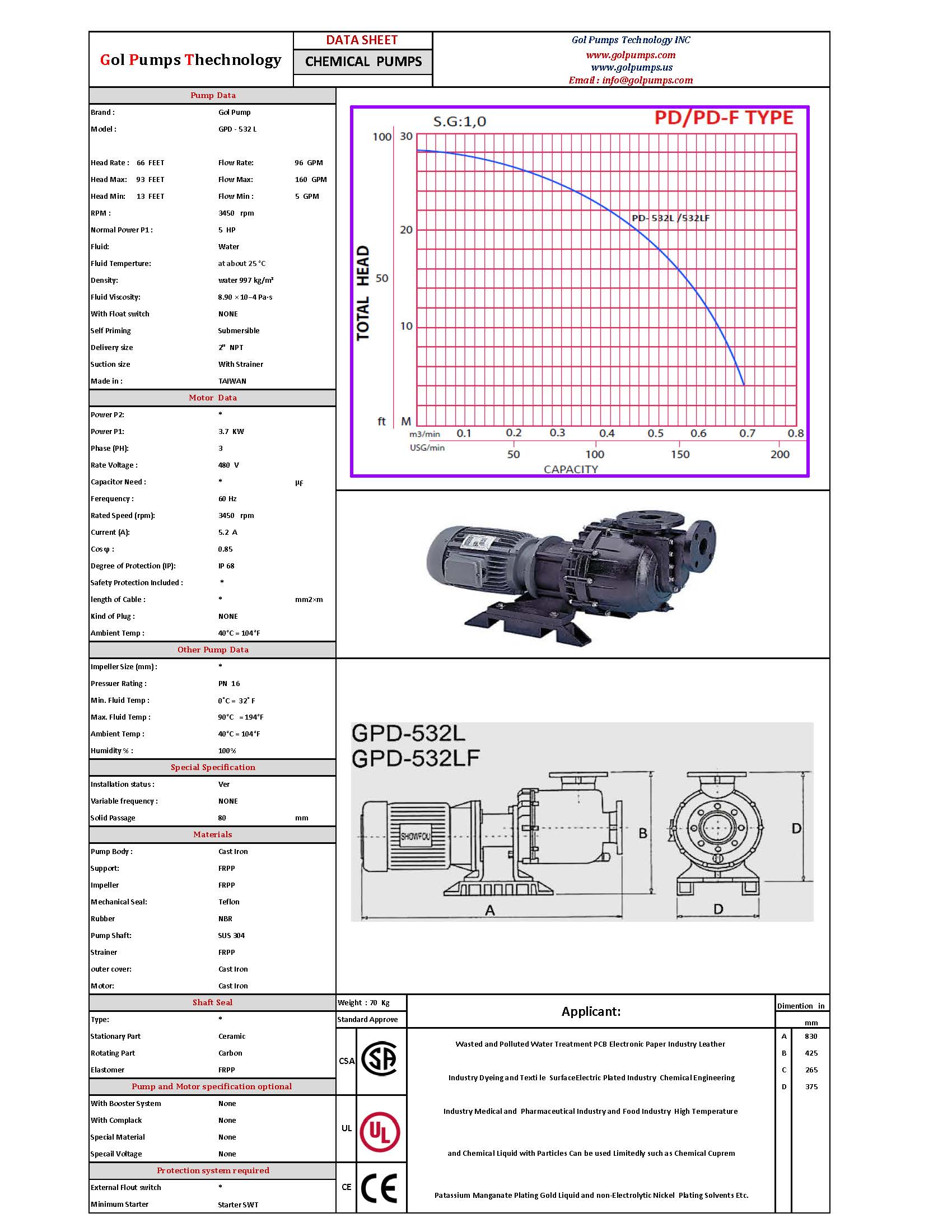

GPD-532L Chemical Pump - Data Sheet

Download PDF | Download GPD-Manual

FRPP: Fiber Reinforced Polypropylene

TYPE S.G MOTOR PUMP
FRPP PVDF POWER PHASE VOLT PUMP OUTLET DISCHARGE GPH MAX.HEAD MAX.FLOW
HP KW PH V INCH FT GAL/MIN
GPD-532L 1 5 3.7 3 230V-3PH 3 10 800 92 180

More Spec.

WEIGHT HEIGHT WIDTH LENGTH
LBS INCH INCH INCH
154 17 10 33
  • Equipped with Teflon Bellow Seal
  •  The weight of motor are not included.
  • Especially design for electroplating industries.
  • The motors of PUPL-F need to be ordered separately.

Material:

Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.

Features

Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids

Self-priming ability

Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate

Teflon Bellow Seal

Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.

Structure:

GPD-532L Chemical Pump - Structure

Performance Curve:

GPD-532L Chemical Pump - Performance Curve

Dimensions  (GPD-532L):

GPD-532L Chemical Pump - Dimensions
