Description

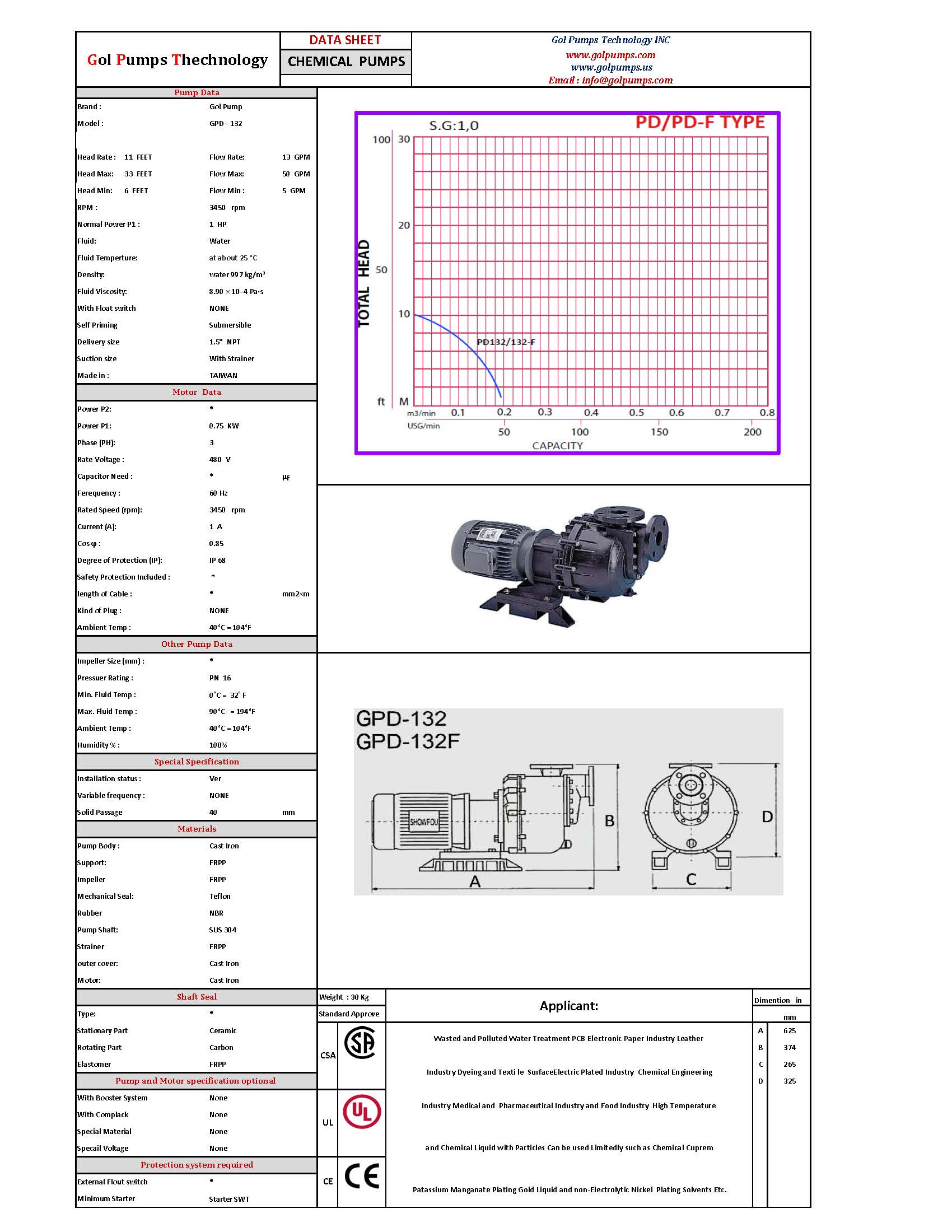

Download Data Sheet PDF | Download GPD-Manual
FRPP: Fiber Reinforced Polypropylene
| TYPE | S.G | MOTOR | PUMP | |||||||
| FRPP | PVDF | POWER | PHASE | VOLT | PUMP OUTLET DISCHARGE | GPH | MAX.HEAD | MAX.FLOW | ||
| HP | KW | PH | V | INCH | FT | GAL/MIN | ||||
| GPD-132 | 1 | 1 | 0.75 | 3 | 230V-3PH | 15 | 3012 | 33 | 50.2 | |
More Spec.
| WEIGHT | HEIGHT | WIDTH | LENGTH |
| LBS | INCH | INCH | INCH |
| 66 | 15 | 10 | 25 |
- Equipped with Teflon Bellow Seal
- The weight of motor are not included.
- Especially design for electroplating industries.
- The motors of PUPL-F need to be ordered separately.
Material:
Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.
Features
Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids
Self-priming ability
Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate
Teflon Bellow Seal
Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.
Structure:
Performance Curve:
Dimensions (GPD-132):
