Description
Description & Features

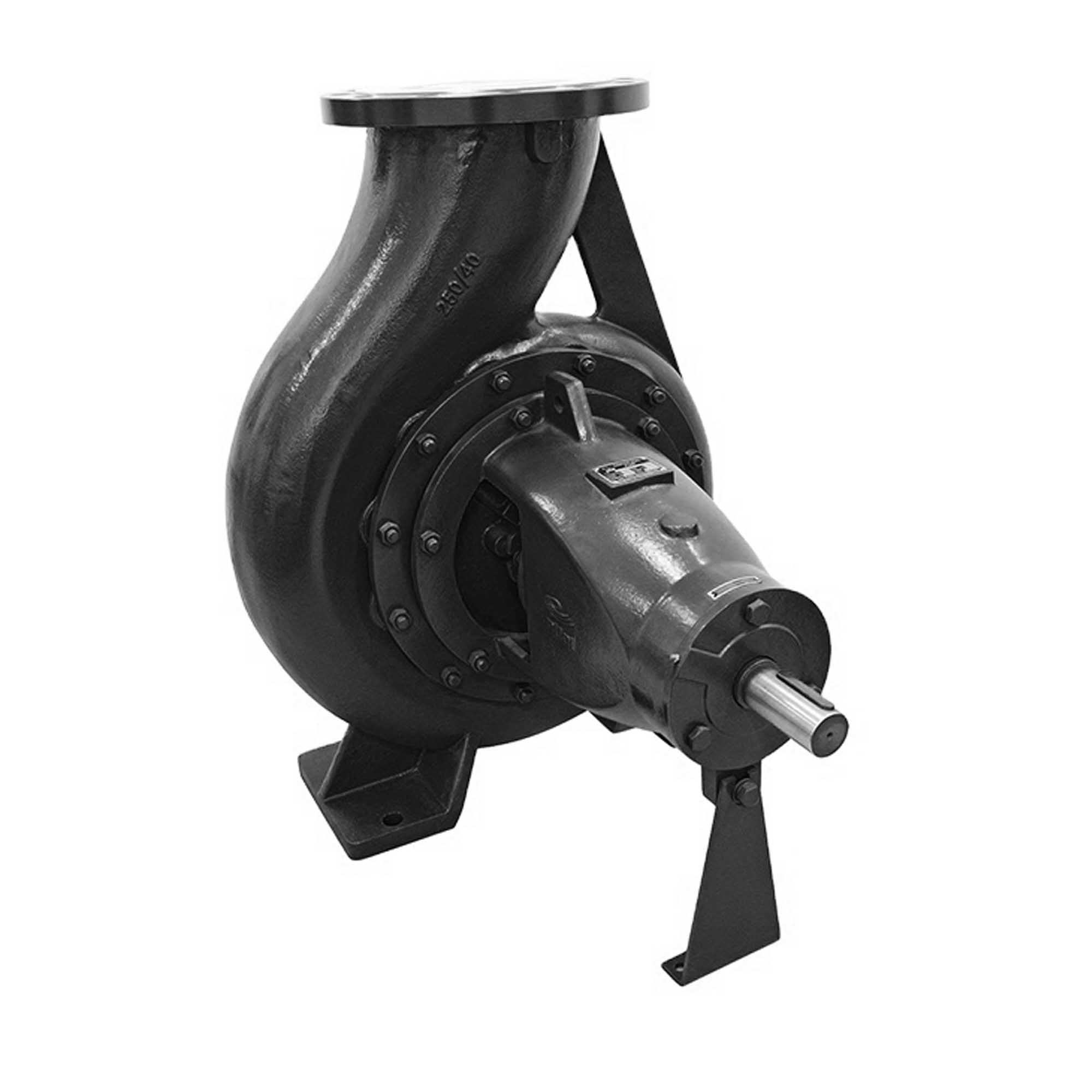

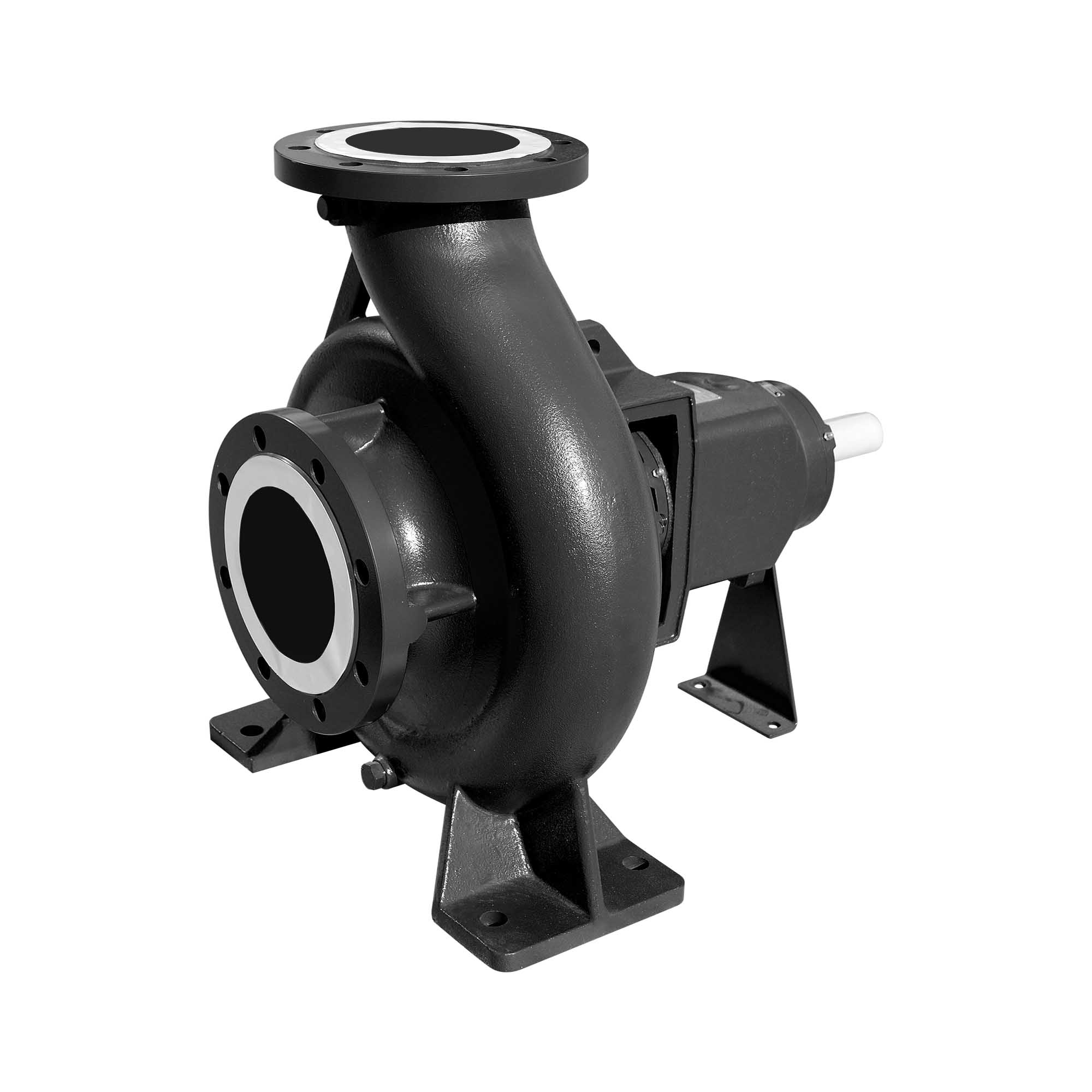

EA series end suction centrifugal pumps are designed complying to BS EN733 /DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
EA Performance Table – EA32/16 ~ 60Hz – 3500 rpm
| Head | Flow | Speed | Power |
Impeller Dia. |
Port Sizes |
||||||
|
ft |
m | GPM | m³/h | L/S | rpm | KW | HP |
mm |
inch |
Inlet-mm/inch |
Oulet-mm/inch |
| 201 | 61.2 | 57 | 13 | 4 | 3500 | 7.5 | 10 | 174 | 6.85″ | 50/2″ | 32/1.25″ |
| 186.3 | 57 | 95 | 22 | 6.03 | |||||||
| 174.4 | 53.2 | 114 | 26.1 | 7.24 | |||||||
EA Performance Table – EA32/16 ~ 60Hz – 1750 rpm
| Head | Flow | Speed | Power |
Impeller Dia. |
Port Sizes |
||||||
|
ft |
m | GPM | m³/h | L/S | rpm | KW | HP |
mm |
inch |
Inlet-mm/inch |
Oulet-mm/inch |
| 51 | 15.4 | 28 | 5.2 | 2 | 1750 | 1.1 | 1.5 | 174 | 6.85″ | 50/2″ | 321.25″ |
| 48.3 | 15 | 46 | 9 | 3 | |||||||
| 45.4 | 55 | 55 | 10.4 | 3.49 | |||||||
End Suction Pumps Performance Curves EA Series – 3500 rpm
End Suction Pumps Performance Curves EA Series – 1750 rpm
Application:
EA Series Explode View & List of Parts
-
- Water supply and drainage
- HVAC and Cooling Tower
- Booster and Pressurization Set
- Irrigation and agriculture
- Water supply and drainage
Material: Cast Iron
| Part |
Standard Material |
| Casing | Cast Iron |
| Impeller | Brass |
| Shaft | ASTM420 |
| Shaft Seal | Mechanical Seal |
EA Series Installation Dimension List
| (inch) |
Weight |
|||||||||||||||||||
| D2 | D1 | a | f | h1 | h2 | b | c | n3 | m1 | m2 | n1 | n2 | s1 | s2 | w | d | i | t | u |
lbs |
| 1.25 | 2 | 3 | 14.2 | 5.2 | 6.3 | 2 | 0.55 | 4 | 4 | 2.7 | 9.5 | 7.5 | 0.55 | 0.55 | 10.5 | 0.95 | 2 | 1.06 | 0.31 | 78 |
| (mm) |
Weight |
|||||||||||||||||||
| D2 | D1 | a | f | h1 | h2 | b | c | n3 | m1 | m2 | n1 | n2 | s1 | s2 | w | d | i | t | u |
kg |
| 32 | 50 | 80 | 360 | 132 | 160 | 50 | 14 | 100 | 100 | 70 | 240 | 315 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 35 |
EA Series Exploded View & List of Parts
