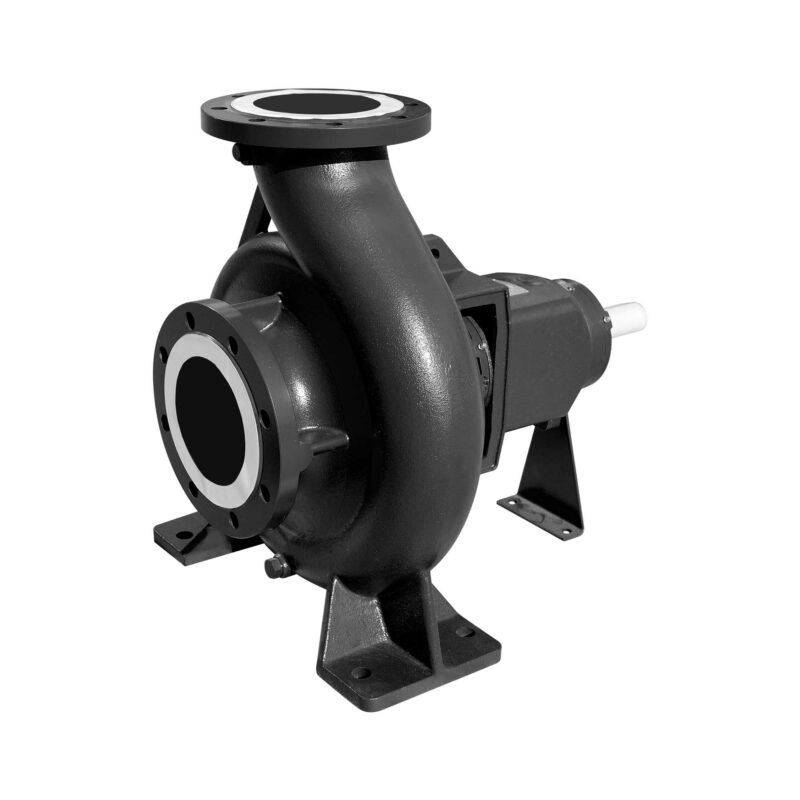

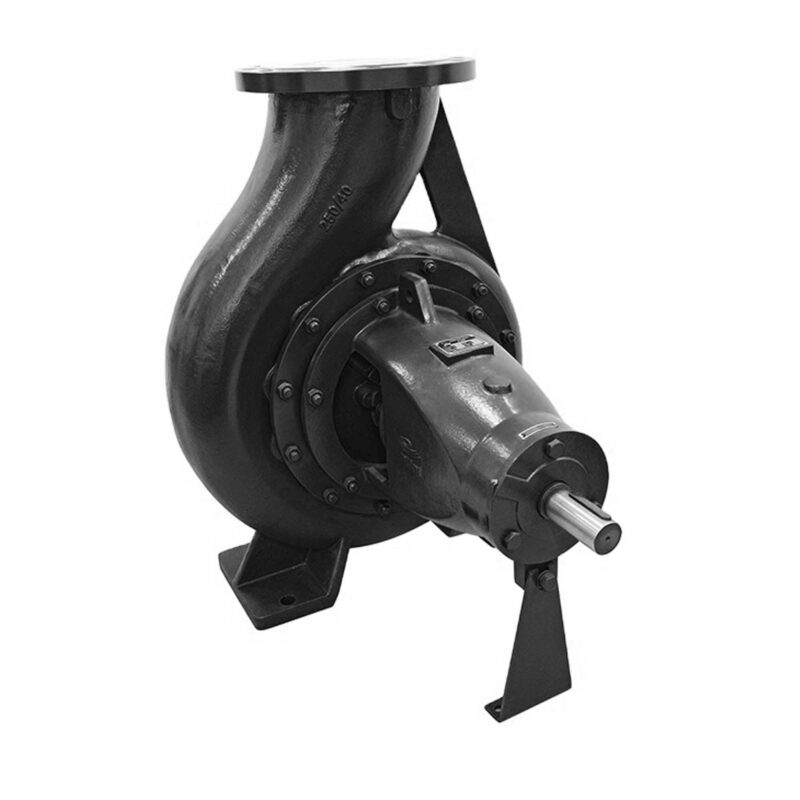

EA series end suction centrifugal pumps are designed complying to BS EN733 /DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
EA Series Explode View & List of Parts
Estimated Delivery Time: 3 – 5 Business Days
Unit Price Only
$2,856.53
Note: This item is heavy and delivery requires a forklift or loading dock for unloading only at commercial locations.
If the delivery address is residential and a forklift/dock is not available, please add the Liftgate + Non-Commercial Delivery Service from here:
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
EA series end suction centrifugal pumps are designed complying to BS EN733 /DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
| Head | Flow | Speed | Power |
Impeller Dia. |
Port Sizes |
||||||
|
ft |
m | GPM | m³/h | L/S | rpm | KW | HP |
mm |
inch |
Inlet-mm/inch |
Oulet-mm/inch |
| 177 | 54 | 206 | 39 | 13.08 | 1750 | 18.5 | 24.8 | 329 | 13″ | 80/3″ | 65/2.5″ |
| 162.4 | 49.5 | 344 | 65 | 22 | |||||||
| 151.5 | 46.2 | 413 | 78 | 26.16 | |||||||
EA Series Explode View & List of Parts
| Part |
Standard Material |
| Casing | Cast Iron |
| Impeller | Brass |
| Shaft | ASTM420 |
| Shaft Seal | Mechanical Seal |
EA Series Installation Dimension List
| (inch) |
Weight |
|||||||||||||||||||
| D2 | D1 | a | f | h1 | h2 | b | c | n3 | m1 | m2 | n1 | n2 | s1 | s2 | w | d | i | t | u |
lbs |
| 2.5 | 3 | 5 | 19 | 9 | 11 | 3 | 0.7 | 4.3 | 6.3 | 5 | 16 | 12.4 | 0.7 | 0.55 | 13.5 | 1.25 | 3 | 1.37 | 0.4 | 243 |
| (mm) |
Weight |
|||||||||||||||||||
| D2 | D1 | a | f | h1 | h2 | b | c | n3 | m1 | m2 | n1 | n2 | s1 | s2 | w | d | i | t | u |
kg |
| 65 | 80 | 125 | 470 | 225 | 280 | 80 | 18 | 110 | 160 | 120 | 400 | 315 | 18 | 14 | 342 | 32 | 80 | 35 | 10 | 110 |
| Weight | 264 lbs |
|---|---|
| category ac pumps | |
| Horse power Ac | |
| Brands |
