Description
Description & Features

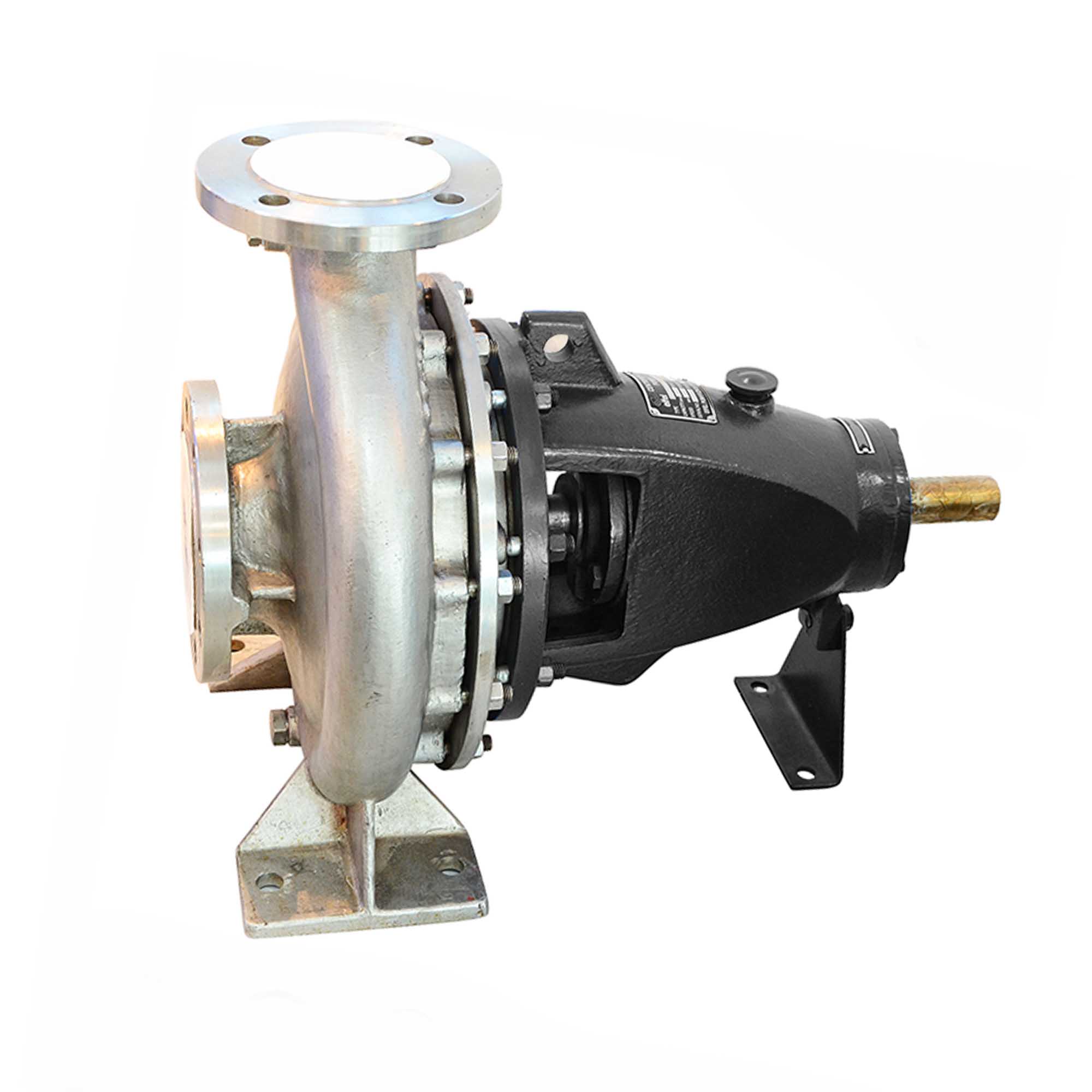

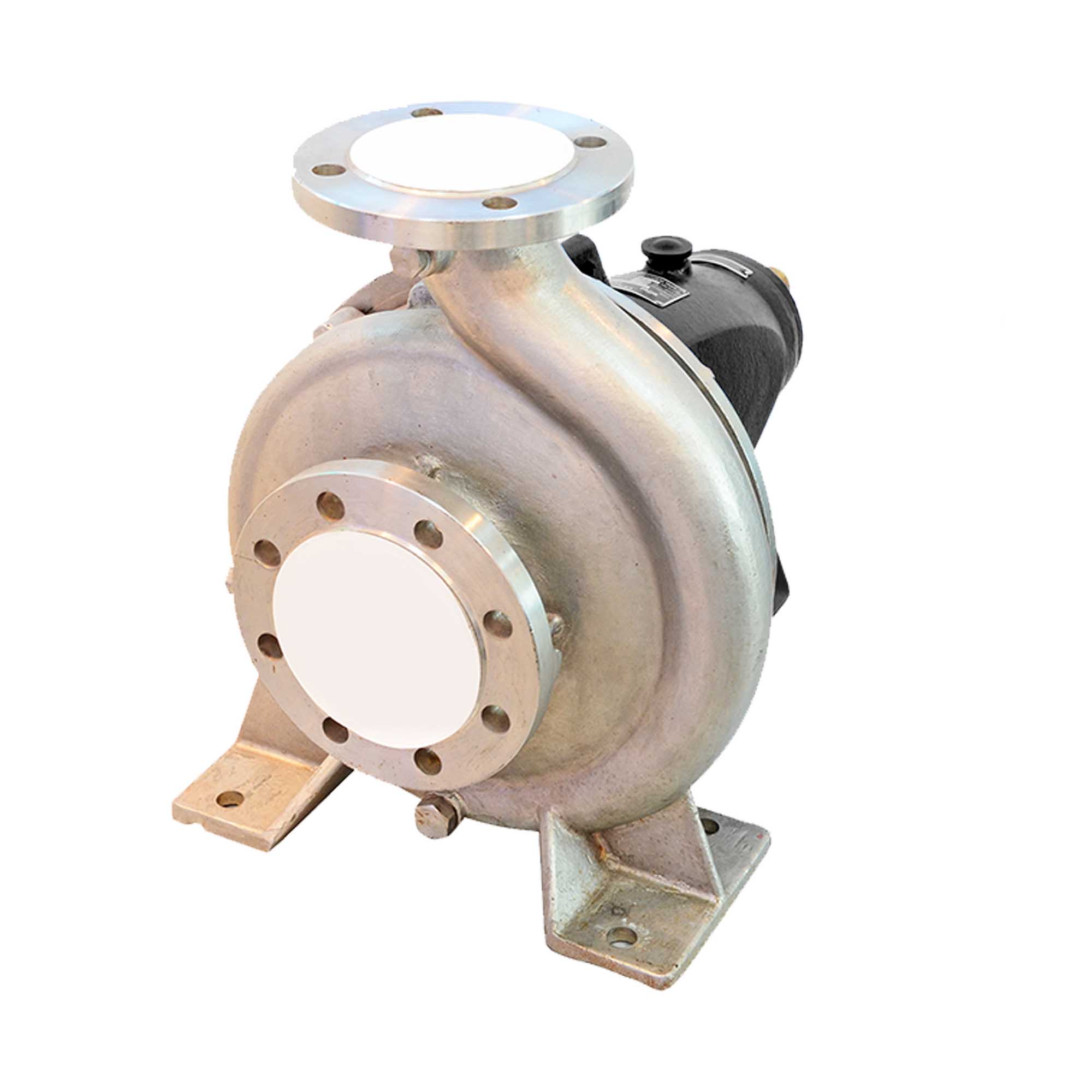

EA series end suction centrifugal pumps are designed complying to BS EN733 /DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
EA Performance Table – EA50/32 ~ 60Hz – 1750 rpm
| Head | Flow | Speed | Power |
Impeller Dia. |
Port Sizes |
||||||
|
ft |
m | GPM | m³/h | L/S | rpm | KW | HP |
mm |
inch |
Inlet-mm/inch |
Oulet-mm/inch |
| 170.1 | 52 | 160 | 30.2 | 10.14 | 1750 | 15 | 20.1 | 329 | 13 | 65/2.5″ | 50/2″ |
| 149 | 45.3 | 267 | 50.4 | 17 | |||||||
| 133 | 40.5 | 320 | 60.5 | 20.28 | |||||||
End Suction Pumps Performance Curves EA Series
Application:
EA Series Explode View & List of Parts
- Water supply and drainage
- HVAC and Cooling Tower
- Booster and Pressurization Set
- Irrigation and agriculture
- Water supply and drainage
Material: Stainless Steel
| Part |
Standard Material |
| Casing | ASTM316 |
| Impeller | ASTM316 |
| Shaft | ASTM316 |
| Shaft Seal | Gland Packin |
EA Series Installation Dimension List
| (inch) |
Weight |
|||||||||||||||||||
| D2 | D1 | a | f | h1 | h2 | b | c | n3 | m1 | m2 | n1 | n2 | s1 | s2 | w | d | i | t | u |
lbs |
| 2 | 2.5 | 5 | 18.5 | 9 | 11 | 2.5 | 0.7 | 4.3 | 5 | 4 | 14 | 11 | 0.55 | 0.55 | 13.5 | 1.25 | 3 | 1.4 | 0.4 | 250 |
| (mm) |
Weight |
|||||||||||||||||||
| D2 | D1 | a | f | h1 | h2 | b | c | n3 | m1 | m2 | n1 | n2 | s1 | s2 | w | d | i | t | u |
kg |
| 50 | 65 | 125 | 470 | 225 | 280 | 65 | 18 | 110 | 125 | 95 | 345 | 280 | 14 | 14 | 342 | 32 | 80 | 35 | 10 | 113 |
EA Series Exploded View & List of Parts
