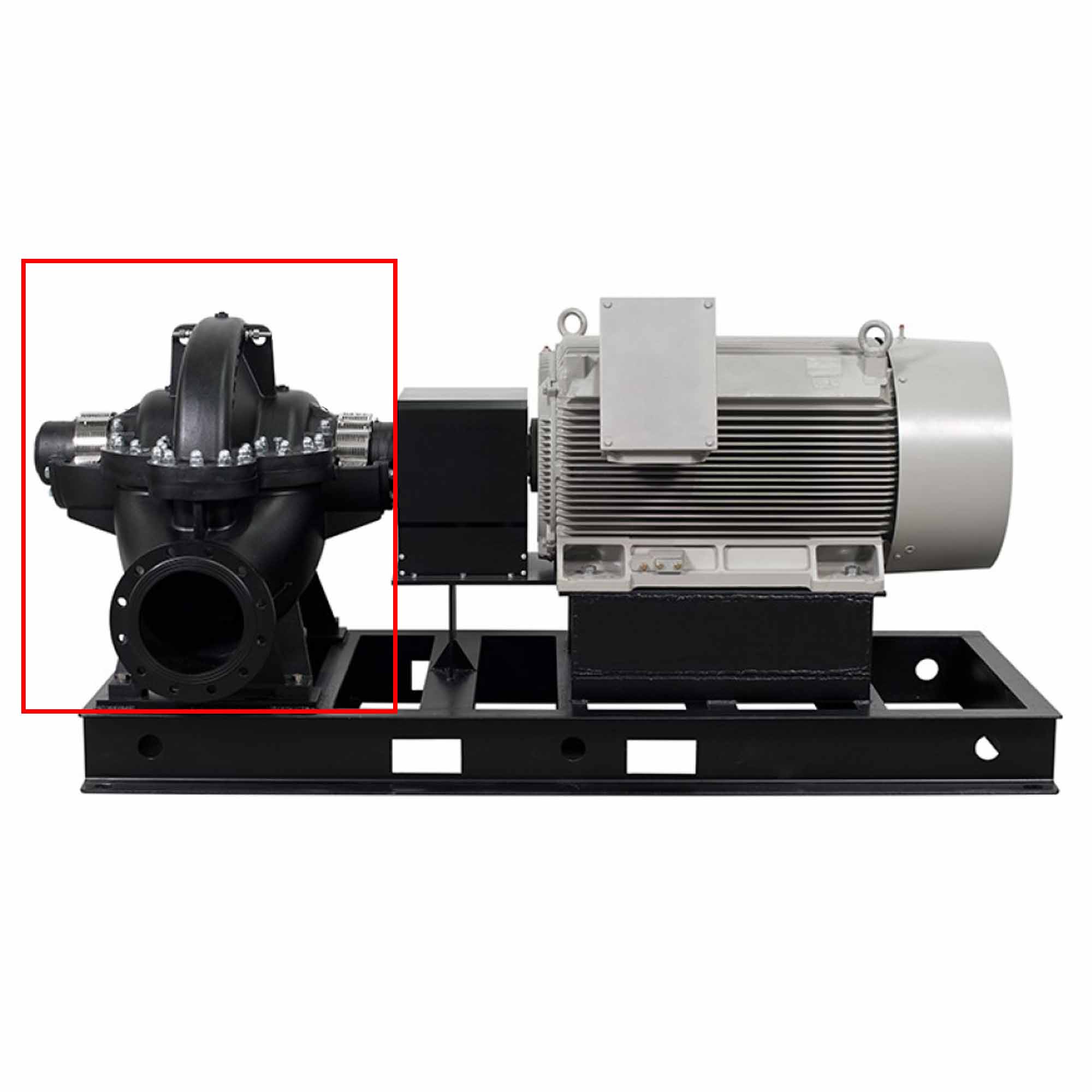

ES series split casing pumps are designed with double suction. This K in d of pumps are of high flow efficiency, low noise and long service ife, easy to install and maintain. Widely used in plant, mine, city water supply, Im i g at ion HVAC and vessel industry.
Estimated Delivery Time: 3 – 5 Business Days
Unit Price Only
$8,949.02
Forklift or loading dock required for commercial deliveries.
This item ships via freight and cannot be unloaded without proper equipment.
Residential Delivery
If the delivery address is residential , or classified as residential by the freight carrier , Liftgate + Residential Delivery Service must be added before shipment.
Important
The freight carrier determines whether an address is commercial or residential at the time the shipment is booked.
If the customer indicates the location is “commercial” (for example: farm, ranch, home-based business, or similar), but the carrier classifies the address as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.
Add the required services below if your location is residential or if a forklift/loading dock is not available.
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP

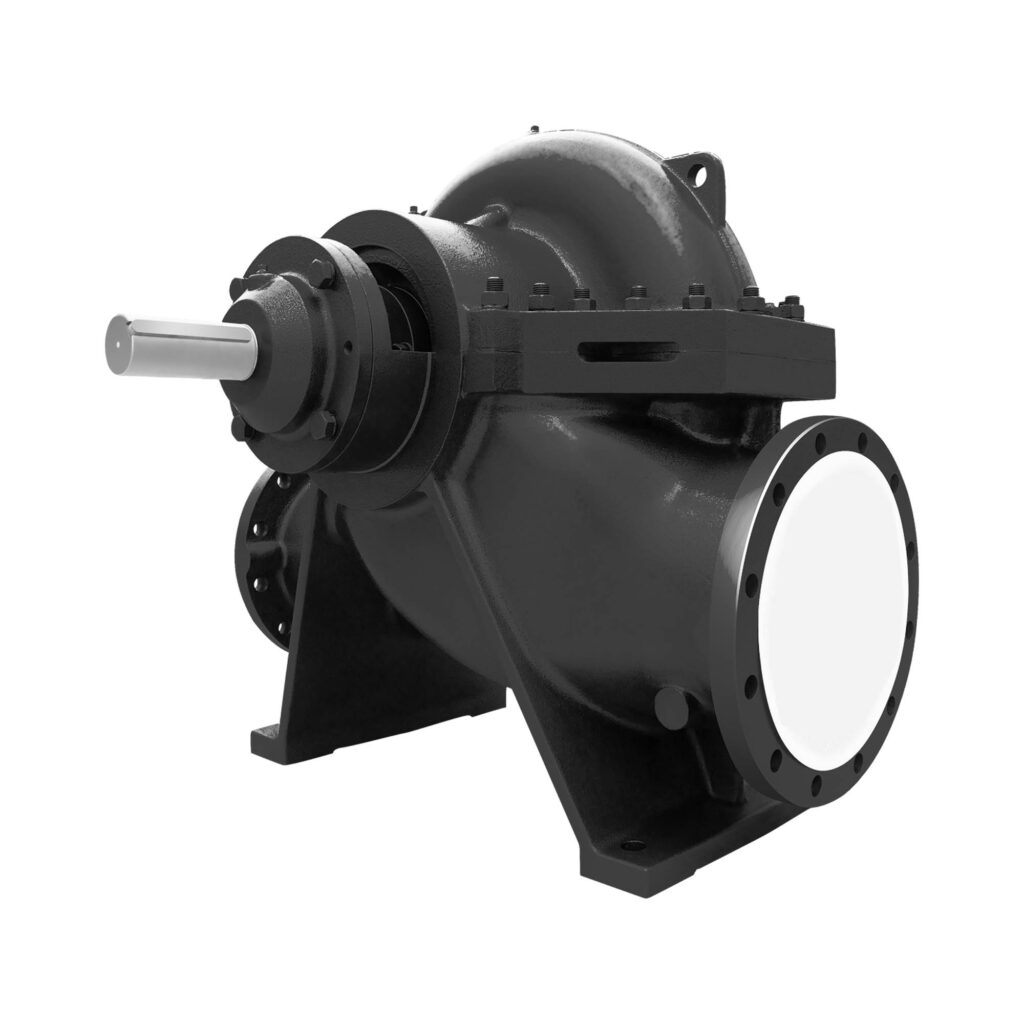

ES series split casing pumps are designed with double suction. This Kind of pumps are of high flow efficiency, low noise and long service life, easy to install and maintain. Widely used in plant, mine, city water supply, Imigation HVAC and vessel industry.
| Head | Flow | Speed | Power |
Impeller Dia. |
|||||
|
ft |
m | GPM | m³/h | L/S | rpm | KW | HP |
mm |
inch |
| 182 | 55.5 | 679 | 156 | 43 | 1780 | 55 | 75 | 320 | 13 |
| 166 | 50.5 | 1137 | 260 | 72 | |||||
| 150 | 45.6 | 1374 | 312 | 87 | |||||
C: Cast Iron, B: Brass , 45: ASTM 1045 , M: Mechanical Seal
|
Design |
Performance referring to GB/T5657.95 Q/FZEF 2014-001 standard |
|
Structure |

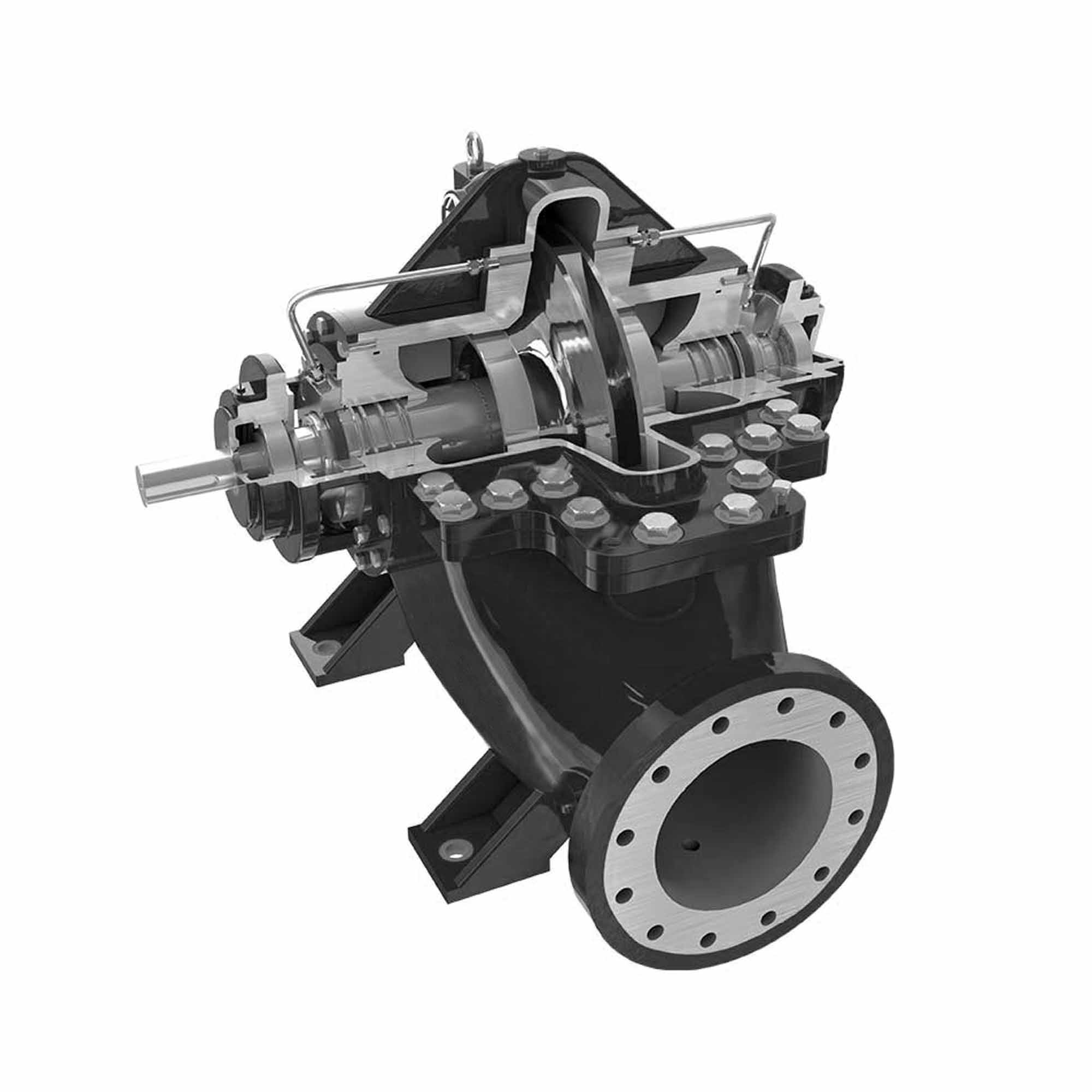

Single-stage, double-suction, split-casing |
| Flange |
Din2501 pn16 GB-T17241.6 PN 1.6 |
| Max GPH (1780 RPM) |
72000 |
| Max GPH (2980 RPM) |
108000 |
| Max GPH (1480 RPM) |
60000 |
| Max Head (1780 RPM) |
210 |
| Max head (2980 RPM) |
500 |
| Max head (1480 RPM) | 110 |
| Part | Standard material |
| Casing | Cast iron |
| Impeller | Brass |
| Shaft | A s tm 1045 |
| Shaft seal | Mechanical seal |
| (inch) |
Weight |
||||||||||||||||||||
| DN1 | DN2 | a1 | a2 | f | I2 | I3 | h | h1 | h2 | m1 | m2 | n1 | n2 | n3 | n4 | b1 | s | b | I | t | lb |
| 6 | 4 | 13 | 13 | 15 | 12 | 27 | 24 | 14 | 7 | 13 | 11 | 9 | 9 | 8 | 8 | 3 | 1 | 0 | 3 | 1.5 | 567 |
| (mm) |
Weight |
||||||||||||||||||||||
| DN1 | DN2 | a1 | a2 | f | I2 | I3 | h | h1 | h2 | m1 | m2 | n1 | n2 | n3 | n4 | b1 | d3 | s | d | b | I | t | kg |
| 150 | 100 | 330 | 330 | 385 | 300 | 685 | 605 | 355 | 170 | 320 | 270 | 235 | 235 | 200 | 200 | 80 | Φ25 | 22 | Φ34 | 10 | 80 | 37.3 | 257 |
|
Flange Dimensions (ISO7005.2 DIN2501 PN16 GB/T17241.6PN1.6) |
|
| DN1/DN2 |
100 |
| K1/K2 |
180 |
| D1/D2 |
220 |
| S1/S2 |
24 |
| n-d1/n-d2 |
8-ø17.5 |
| Weight | 566 lbs |
|---|---|
