Gol Pumps Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.
Made in Taiwan
$5,097.96
This item ships via freight and cannot be unloaded without proper equipment.
If the address is entered as “commercial” but the carrier classifies it as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Model | Pump | A7X 95 CR 25/2 |
| Motor | 6CF7356D | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 18.5 |
| HP | 25 | |
| Service Factor | 1.15 | |
| Material | Pump | Stainless Steel 304 |
| Motor | Cast Iron | |
| Voltage – Phase | 460V – Three Phase | |
| Wire | – | |
| In | A | 34 |
| Imax | A | 38 |
| Istart | A | 142.3 |
| PF (%) | Allowable Load | 0.81 |
| Overload Factor | 0.83 | |
| Efficiency (%) | Allowable Load | 84 |
| Overload Factor | 83.8 | |
| R.P.M | 3450 | |
| Thrust | N | 15500 |
| Capacitor | UF | No |
| Cable | AWG | 10 |
| Length (ft.) | 13.1 | |
| Production Country | Taiwan | |

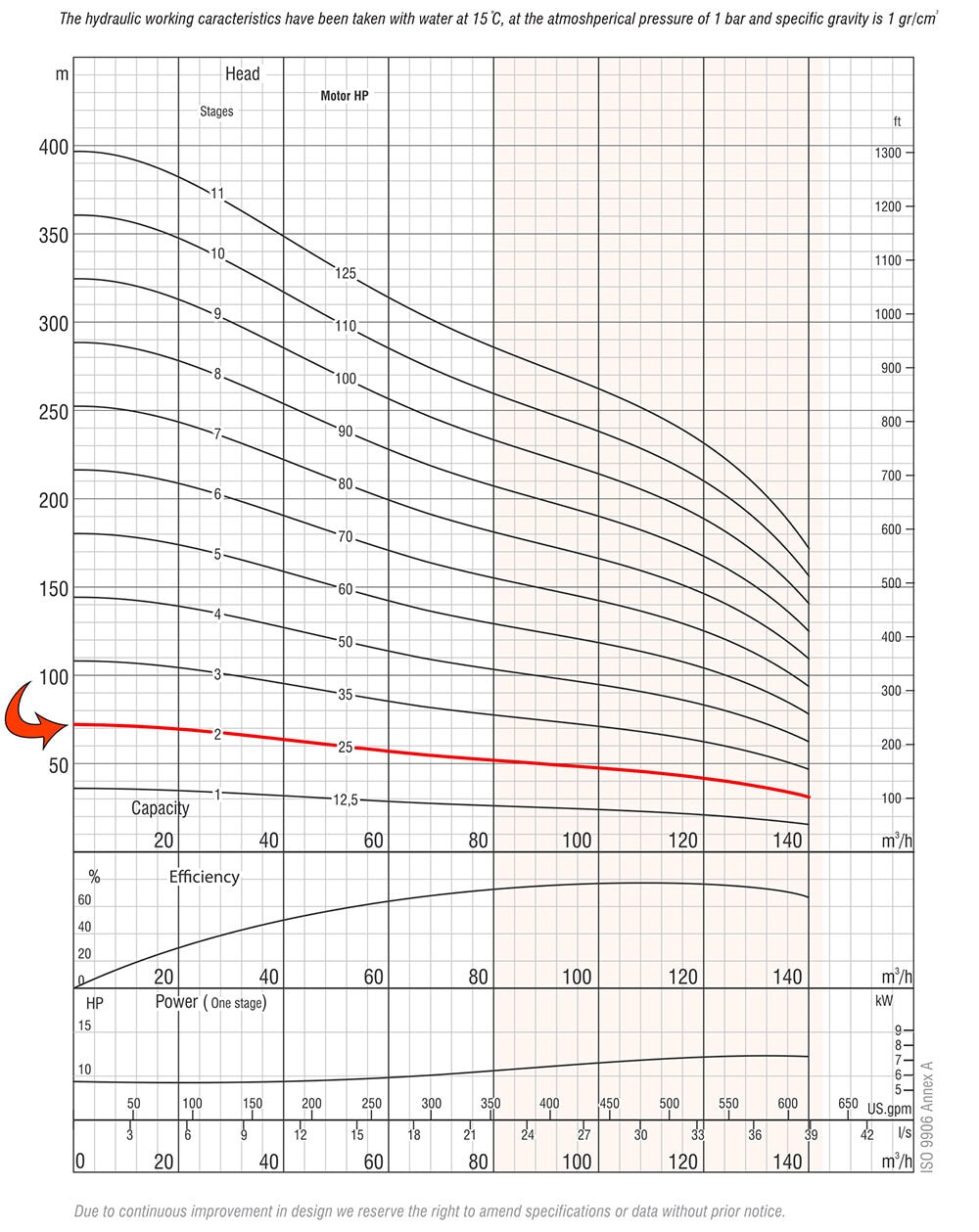

| Pump Model | Stages | Motor | Q Capacity 3500RPM | ||||||||||
| kW | HP | Gal/H | 0 | 5283 | 10567 | 18492 | 23775 | 26417 | 29059 | 31701 | 34342 | ||
| A7X 95 CR 25/2 | 2 | 18.5 | 25 | Head (ft.) | 236 | 207 | 177 | 171 | 164 | 157 | 148 | 138 | 125 |
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| LP | LM | L | ØP | Pump | Motor | Pump + Motor | ||
| NPT 5″ | 6″ | 28 | 33.7 | 61.7 | 6.8 | 66 | 145 | 211 |
| No. | Part Name | Materials |
| 1 | Suction Case | Stainless Steel (AISI 304L) |
| 2 | Strainer | Stainless Steel (AISI 304L) |
| 3 | Suction Case Wear Ring | Rubber |
| 4 | Pump Shaft | Stainless Steel (AISI 431) |
| 5 | Collet | Stainless Steel (AISI 304) |
| 6 | Impeller Wear Rings | Stainless Steel (AISI 304L) |
| 7 | Impeller | Stainless Steel (AISI 304L) |
| 8 | Stop Ring | Bronze (ASTM B145-4A) |
| 9 | Diffuser | Stainless Steel (AISI 304L) |
| 10 | Diffuser Wear Ring | Rubber |
| 11 | Nut for Collet | Stainless Steel (AISI 304L) |
| 12 | Bearing | Rubber |
| 13 | Upper Bearing | Bronze (ASTM B145-4A) |
| 14 | Discharge Case | Stainless Steel (AISI 304L) |
| 14.1 | Discharge Case Body | Stainless Steel (AISI 304L) |
| 14.2 | Valve Cup Spring | Stainless Steel (AISI 304L) |
| 14.3 | Valve Cup Guide | Stainless Steel (AISI 304L) |
| 14.4 | Valve Cup | Stainless Steel (AISI 304L) |
| 14.5 | Upper Valve Cup Seat Retainer |
Stainless Steel (AISI 304L) |
| 14.6 | Valve Cup Seat | Rubber |
| 14.7 | Lower Valve Cup Seat Retainer |
Stainless Steel (AISI 304L) |
| 15 | Coupling | Stainless Steel (AISI 431) |
| 16 | Tie Rod | Stainless Steel (AISI 304L) |
| 17 | Cable Guard | Stainless Steel (AISI 304L) |
| 18 | Tie Rod Stud | Stainless Steel (AISI 316) |
| 19 | Tie Rod Nut | Stainless Steel (AISI 304L) |
| 20 | Name Plate | Stainless Steel (AISI 304L) |
| Brands | |
|---|---|
| AC voltage | |
| Horse power Ac | |
| Phase | |
| Submersible Pump Size | |
| Material Submersible pump | |
| Pump Outlet |
