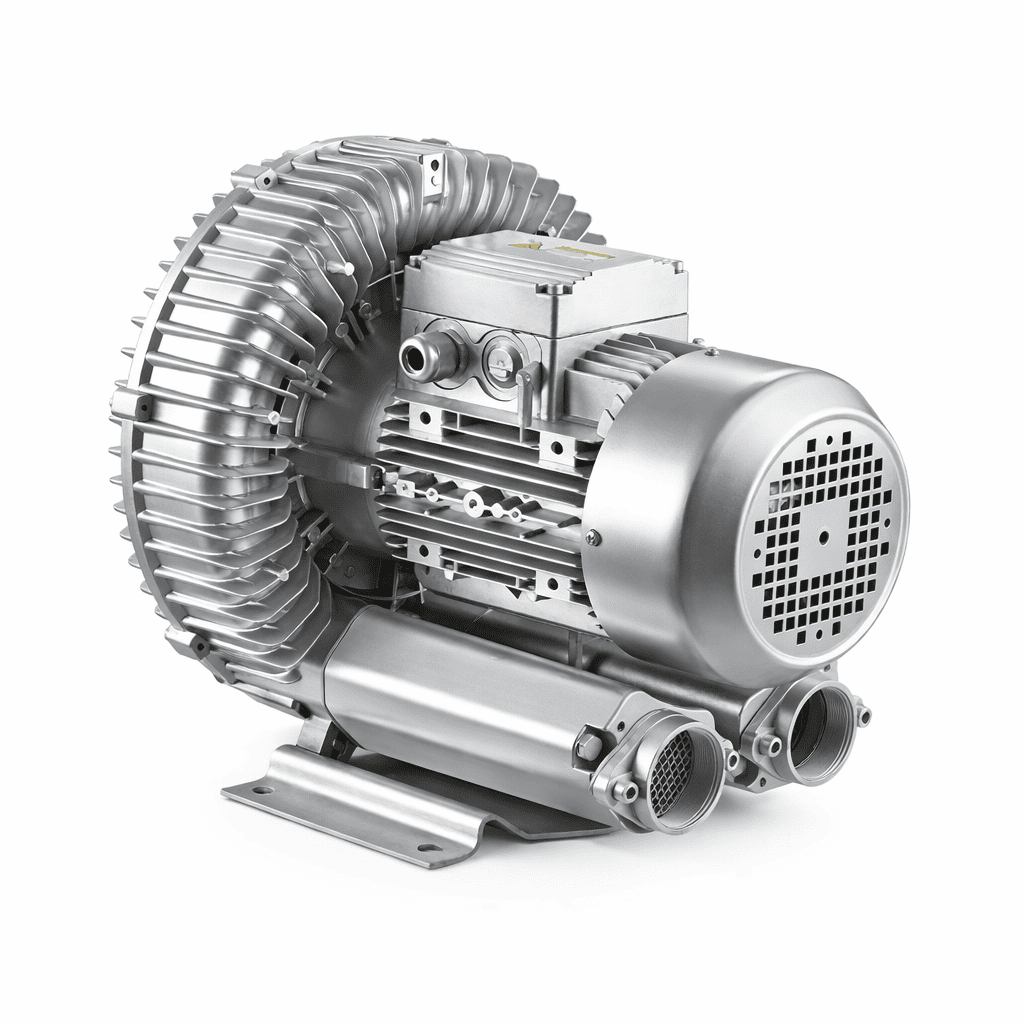

Gol Pumps 7.5HP , 5.5KW High Pressure Vortex Blower Pump , GP3-810-5500S

5/5

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Gol Pumps 7.5HP , 5.5KW High Pressure Vortex Blower Pump , GP3-810-5500S

5/5

 Unit Price Only

$1,414.99

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

Product Data >>>

 BLOWER-Manual

High Pressure Vortex Blower Pump(GB Vortex Blower)

The ring blower (channel blower, air blower) made by aluminum alloy, that make it small body and light weight. Blower blades operate without coming into contact with the pump casing and with each other. Therefore, the blades do not require lubrication. Since the system only operates with air or gas, the environment remains clean. For this reason, blowers provide a big advantage in chemical applications, aquaculture, pneumatic transfer applications, mining and treatment plants, which require a clear gas flow.

Applications:

  1. Aquaculture (fish and prawn pond aeration).
  2. Waste water treatment, sewage treatment system.
  3. Pneumatic conveying systems.
  4. Lifting and holding of parts by vacuum.
  5. Packing machines.
  6. Filling of bags/bottles/hoppers.
  7. Soil remediation.
  8. Food remediation.
  9. Laser printers.
  10. Dental suction equipment.
  11. Paper processing.
  12. Gas analysis.

Description

 BLOWER-Manual

High Pressure Vortex Blower Pump(GB Vortex Blower)

The ring blower (channel blower, air blower) made by aluminum alloy, that make it small body and light weight. Blower blades operate without coming into contact with the pump casing and with each other. Therefore, the blades do not require lubrication. Since the system only operates with air or gas, the environment remains clean. For this reason, blowers provide a big advantage in chemical applications, aquaculture, pneumatic transfer applications, mining and treatment plants, which require a clear gas flow.

The products are widely used for clothes, printing, paper making, aquiculture, liquid waste disposing, adding oxygen, photoengraving, industry absorbing, heliograph, powder and grain feeding, work scene, etc.

The motors are designed according to the DIN EN 60 034 / DIN IEC 34-1 and temperature class F. For the three phase machines the tolerances are +/- 10% for fixed voltage and +/- 5% for voltage range. The single phase machines are designed with a +/- 5 tolerances. If only 90% of the maximum allowed pressure will be used for the continuous operating then the allowed voltage range add to +/- 10%. For all single and three phase machines which designed according to the UL and CSA norm (UL 1004-1) the maximum allowed voltage tolerances are – 10 % resp. +6 %. The frequency tolerance is maximum +/- 2%.

Applications:

  1. Aquaculture (fish and prawn pond aeration).
  2. Waste water treatment, sewage treatment system.
  3. Pneumatic conveying systems.
  4. Lifting and holding of parts by vacuum.
  5. Packing machines.
  6. Filling of bags/bottles/hoppers.
  7. Soil remediation.
  8. Food remediation.
  9. Laser printers.
  10. Dental suction equipment.
  11. Paper processing.
  12. Gas analysis.



Model PH Power Voltage Current Max.Pressure
GP3-810-5500S Three phase 5.5KW – 7.5HP 220V – 60hz 13.4 7.25PSI



Max.Flow Max.Vaccume Noise Weight Packing Size
2712Gal/min 5.5PSI < 70dB 156.2lb 18in-20in-21in

Dimension:



High Pressure Vortex Blower Pump Dimension Diagram



Model

 L(in)   W(in)   H(in)   H1(in)   H2(in)   A(in)   A1(in)   Thread Type   Inlet/Outlet

 GP3-810-5500S

19 17.5 19 10 4.6 6 14 BSP 2.05″

Structure & List of Parts:

High Pressure Vortex Blower Pump Structure List of Parts Scaled

Types of Uses:

High Pressure Vortex Blower Pump Application


High Pressure Vortex Blower Pump Application

Additional information

AC voltage

Brands

category ac pumps

Horse power Ac

Phase
