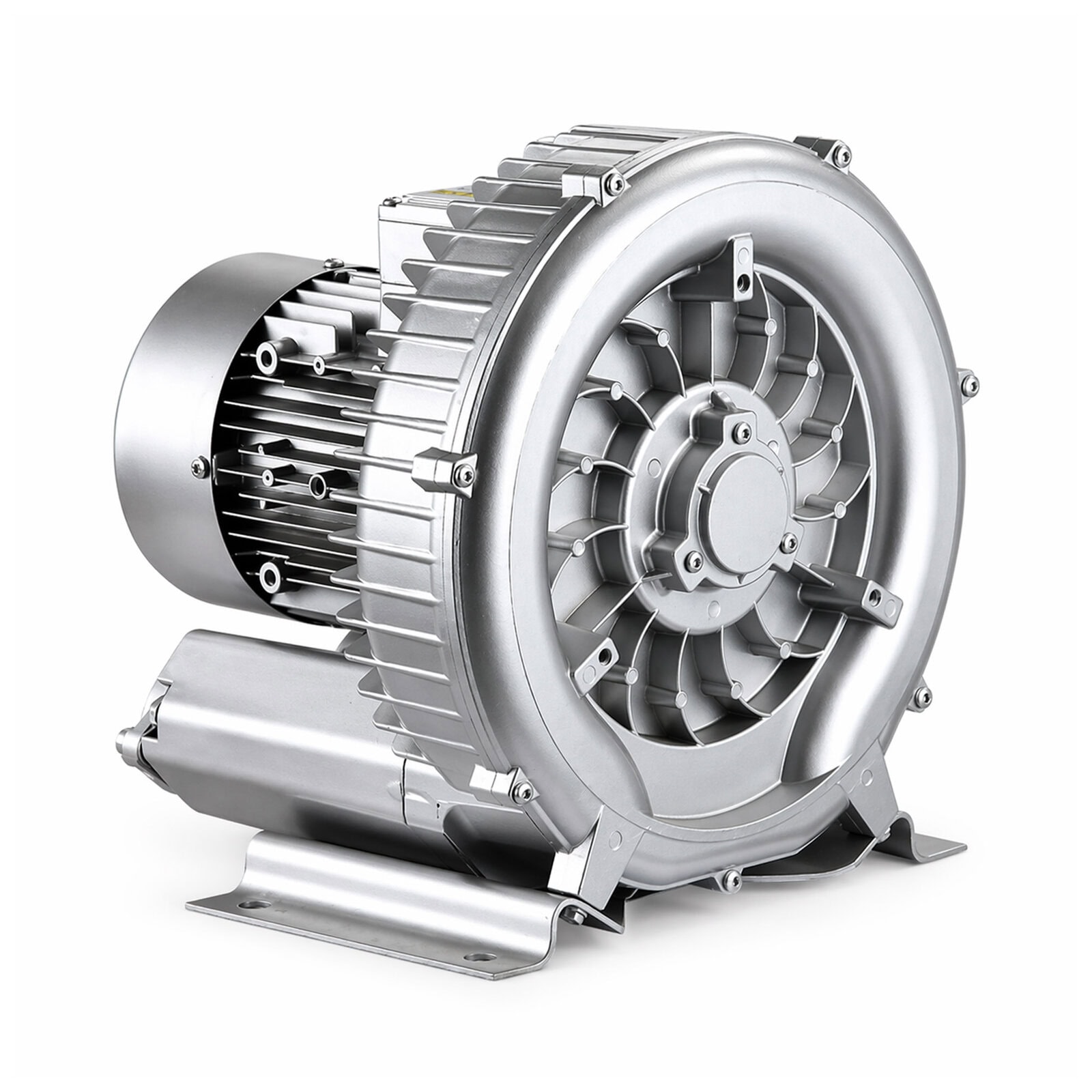

Gol Pumps 1.5HP , 1.1KW High Pressure Vortex Blower Pump , GP3-510-1100

5/5

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Gol Pumps 1.5HP , 1.1KW High Pressure Vortex Blower Pump , GP3-510-1100

5/5

 Unit Price Only

$601.72

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Cart

Advertisement

Product Data>>>

 BLOWER-Manual

High Pressure Vortex Blower Pump(GB Vortex Blower)

The ring blower (channel blower, air blower) made by aluminum alloy, that make it small body and light weight. Blower blades operate without coming into contact with the pump casing and with each other. Therefore, the blades do not require lubrication. Since the system only operates with air or gas, the environment remains clean. For this reason, blowers provide a big advantage in chemical applications, aquaculture, pneumatic transfer applications, mining and treatment plants, which require a clear gas flow.

Applications:

  1. Aquaculture (fish and prawn pond aeration).
  2. Waste water treatment, sewage treatment system.
  3. Pneumatic conveying systems.
  4. Lifting and holding of parts by vacuum.
  5. Packing machines.
  6. Filling of bags/bottles/hoppers.
  7. Soil remediation.
  8. Food remediation.
  9. Laser printers.
  10. Dental suction equipment.
  11. Paper processing.
  12. Gas analysis.

Description

 BLOWER-Manual

High Pressure Vortex Blower Pump(GB Vortex Blower)

The ring blower (channel blower, air blower) made by aluminum alloy, that make it small body and light weight. Blower blades operate without coming into contact with the pump casing and with each other. Therefore, the blades do not require lubrication. Since the system only operates with air or gas, the environment remains clean. For this reason, blowers provide a big advantage in chemical applications, aquaculture, pneumatic transfer applications, mining and treatment plants, which require a clear gas flow.

The products are widely used for clothes, printing, paper making, aquiculture, liquid waste disposing, adding oxygen, photoengraving, industry absorbing, heliograph, powder and grain feeding, work scene, etc.

The motors are designed according to the DIN EN 60 034 / DIN IEC 34-1 and temperature class F. For the three phase machines the tolerances are +/- 10% for fixed voltage and +/- 5% for voltage range. The single phase machines are designed with a +/- 5 tolerances. If only 90% of the maximum allowed pressure will be used for the continuous operating then the allowed voltage range add to +/- 10%. For all single and three phase machines which designed according to the UL and CSA norm (UL 1004-1) the maximum allowed voltage tolerances are – 10 % resp. +6 %. The frequency tolerance is maximum +/- 2%.

Applications:

  1. Aquaculture (fish and prawn pond aeration).
  2. Waste water treatment, sewage treatment system.
  3. Pneumatic conveying systems.
  4. Lifting and holding of parts by vacuum.
  5. Packing machines.
  6. Filling of bags/bottles/hoppers.
  7. Soil remediation.
  8. Food remediation.
  9. Laser printers.
  10. Dental suction equipment.
  11. Paper processing.
  12. Gas analysis.



Model PH Power Voltage Current Max.Pressure
GP3-510-1100 Three phase 1.1KW – 1.5HP 220V – 60hz 6 4.35PSI



Max.Flow Max.Vaccume Noise Weight Packing Size
1078Gal/min 3.5PSI < 60dB 51lb 15in-15in-15in

Dimension:



High Pressure Vortex Blower Pump Dimension Diagram



Model

 L(in)   W(in)   H(in)   H1(in)   H2(in)   A(in)   A1(in)   Thread Type   Inlet/Outlet

GP3-510-1100

13

13.2 13.4 7.5 2.4 4.5 10.6 BSP 2″

Structure & List of Parts:

High Pressure Vortex Blower Pump Structure List of Parts Scaled

Types of Uses:

High Pressure Vortex Blower Pump Application


High Pressure Vortex Blower Pump Application
