Description
Product Details

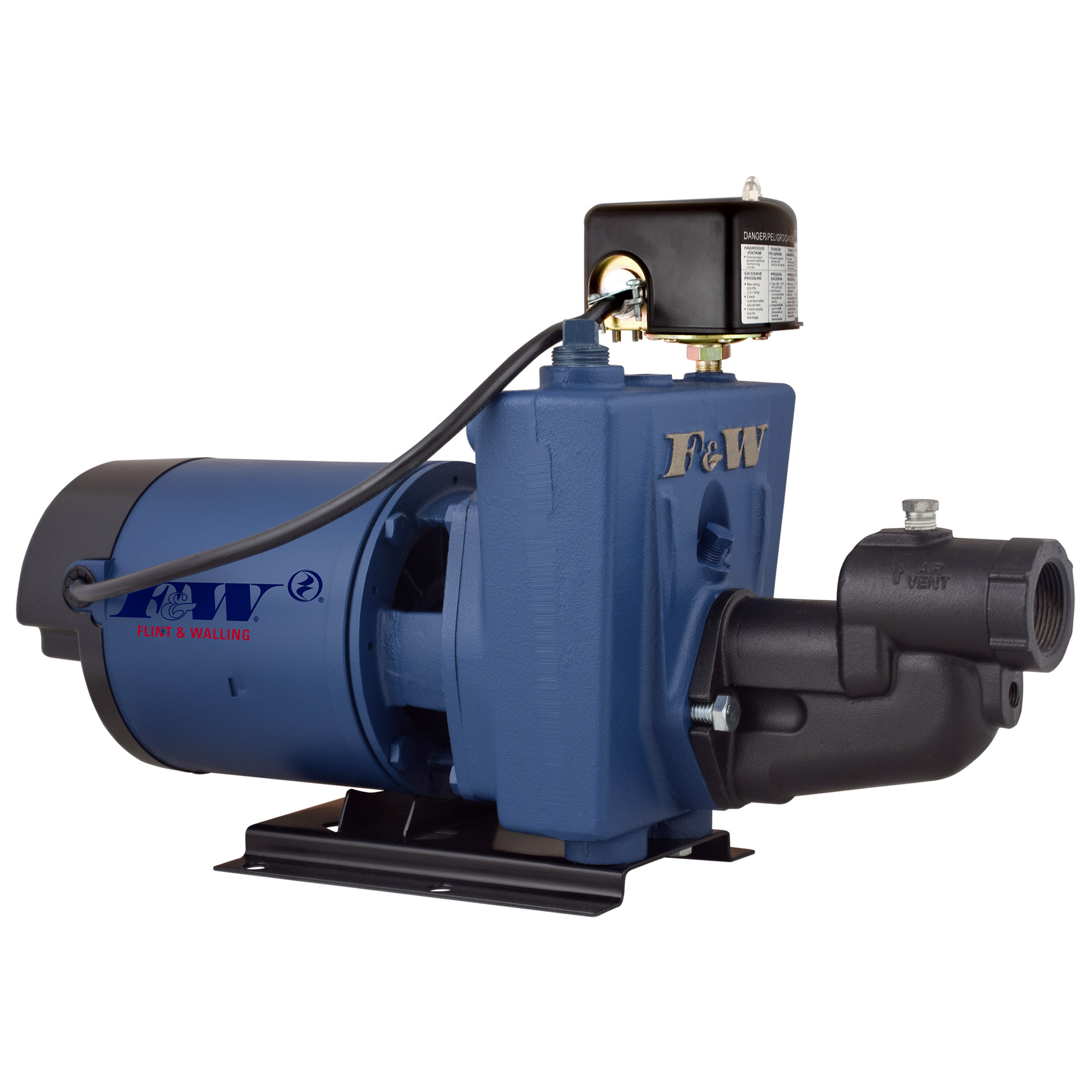

High tensile gray iron pump bodies
Large water cavities provide fast, easy priming. Separate priming ports enable quick water fill and the fast evacuation of air. Separate 1/4″ tappings are provided for the convenient mounting of pressure/vacuum gauges and the pressure switch, and for pump draining.
Buna-n Square cut ring
Reusable provides a positive seal between the pump case
and motor bracket.
Molded diffusers
Corrosion and abrasion resistant, provide precision alignment with the impeller for maximum performance. The snap- in diffuser design uses no bolts and is held in place by compression.
Impellers –
Precision balanced, these impellers are ultra-smooth for high efficiency. 1/3 through 1 HP CPJ, CPH, and EK models feature molded thermoplastic impellers. 1-1/2 HP CPJ models feature brass impellers.
Pipe plugs and priming plugs
Coated with a non-hardening, non-toxic, non-corrosive material which allows for easy removal even after the pump has been in service for years.
Standard shaft seal
Silicon carbide face is self-adjusting throughout the seal life. One size fits all models.
CPH and EK Patented uni-frame motor bracket
Unique to the water systems industry-designed to accept any NEMA J motor if motor replacement is ever necessary.
Automatic overload
Senses both start and run winding heat to ensure complete winding protection.
CPJ models
Feature NEMA J motors. All motors are dual voltage, capacitor start with automatic thermal overload protection.
Pump Performance
| Model No. | HP | Ejector* Assembly | Suction Lift Ft. | Discharge Pressures (PSI) | Suction & Discharge | Pressure Switch Setting | Shut Off Pressure PSI | Pump Shipping Weight | ||||
| 20 | 30 | 40 | 50 | 60 | ||||||||
| CAPACITY – U.S. GALLONS PER MINUTE | ||||||||||||
| CPJ15S | 1.5 | SW15E-1238 | 5 | 30 | 29.8 | 29.8 | 29.8 | 23.3 | 1-1/4″ X 1″ | 30-50 | 77 | 72 |
| 15 | 24 | 23.8 | 23.7 | 23.5 | 18.7 | 72 | ||||||
| 25 | 15 | 15 | 15 | 14.8 | 8 | 63 | ||||||
