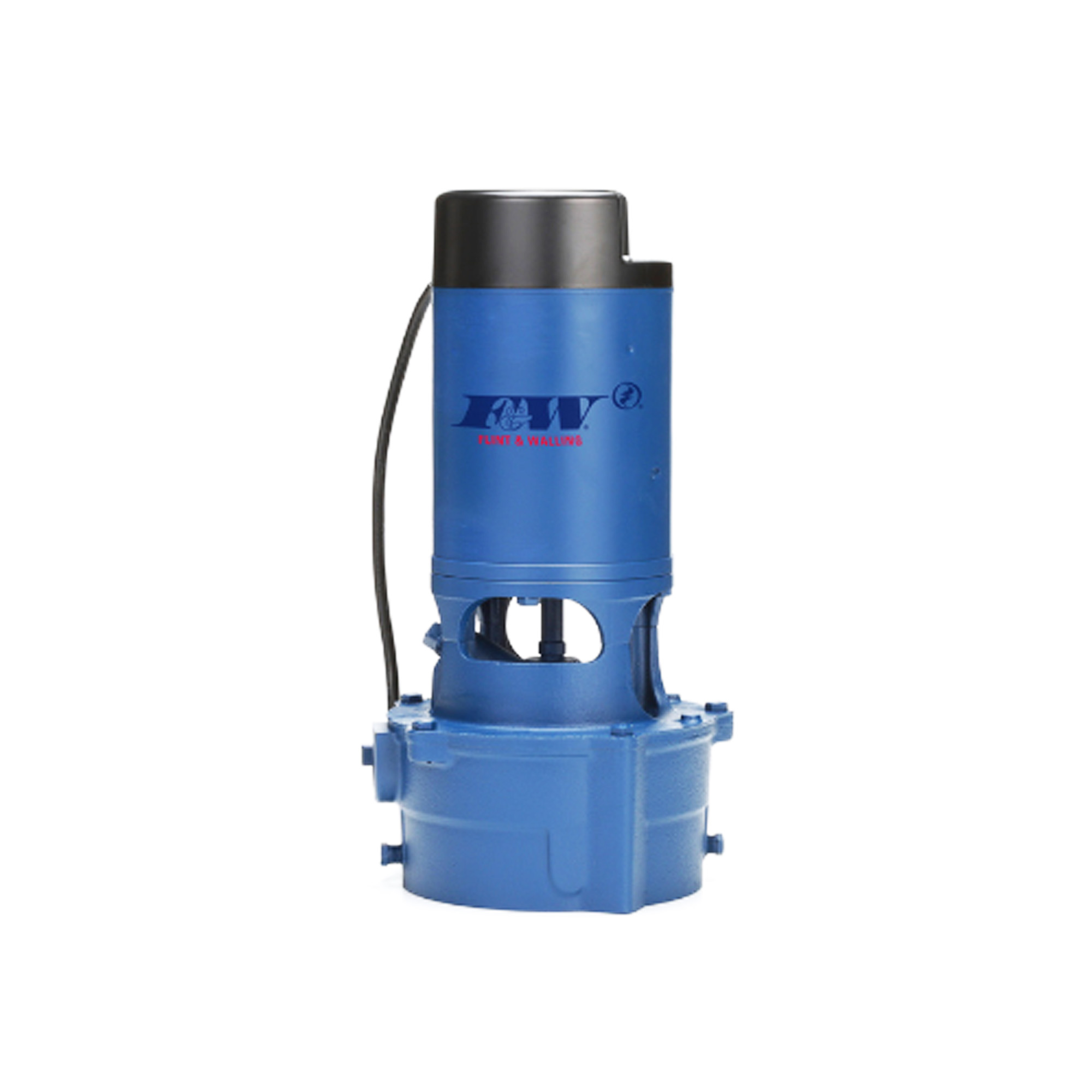

Introducing the VS Deep Well Jet Pump Series, engineered to deliver optimal performance and reliability for your water pumping needs. The VS series features a two-stage design with adjustable diaphragm pressure, ensuring maximum capacities and consistent pressure levels at all times. Its NEMA J dual voltage motor boasts copper windings, double ball bearings, and overload protection with automatic reset, enhancing durability and efficiency.
Designed for precision and longevity, the pump includes a precision-molded impeller and diffuser that ensure perfect alignment and ultra-smooth passages, contributing to high performance and reliability. The large one-piece pump case design allows for easy disassembly without disturbing the well or discharge pipes, simplifying maintenance and servicing tasks.
With its top-located priming port and discharge, the pump prevents air lock and enables easy priming, ensuring hassle-free operation. Additionally, convenient tappings are provided for draining the pump and installing pressure switches and pressure gauges, further enhancing usability and versatility.
Backed by a 1-year limited warranty, the VS Deep Well Jet Pump Series offers peace of mind and reliability, making it an ideal choice for various residential and commercial applications where dependable water pumping is essential.
Flint & Walling VS210P Deep Well Jet Pump Specifications
- DISCHARGE SIZE: 1.0″
- INLET SIZE: 1.25″
- IMPELLER MATERIAL: Thermoplastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1.0 HP
- MOTOR TYPE: NEMA J
- VOLTAGE: 1ø, 115V/230V, 60Hz
- RPM: 3450
Features and Benefits
- Large one-piece pump case design, pump can be disassembled without disturbing well or discharge pipes
- Top-located priming port and discharge prevents air lock and allows for easy priming
- Convenient tappings for draining of pump and installation of pressure switch and pressure gauge
- 1 year limited warranty
Pump Performance
| MODEL NO. | HP | SHALLOW WELL EJECTOR ASSEMBLY | SUCTION LIFT FEET | CAPACITIES – GPM AT DISCHARGE PSI | SUCTION & DISCHARGE | PRESSURE SWITCH SETTING | SHUTOFF PRESSURE PSI | SHIPPING WT | |||||||
| 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | ||||||||
| VS210P | 1 | SW10V-1030 | 5 | 16.7 | 16.7 | 16.7 | 16.7 | 14.3 | 9.0 | 1-1/4” X 1” | 30-50 | 80 | 72 | ||
| 15 | 13.3 | 13.3 | 13.3 | 13.3 | 11.7 | 5.0 | 75 | ||||||||
| 25 | 7.2 | 7.2 | 7.2 | 7.2 | 6.8 | 70 | |||||||||
