End Suction Thermal Oil Centrifugal Pump – Model GTKF-K 80-200, (3600 RPM)

End Suction Thermal Oil Centrifugal Pump - Model GTKF-K 80-200, (3600 RPM)
End Suction Thermal Oil Centrifugal Pump - Model GTKF-K 80-200, (3600 RPM) - Image 2
SKU: 2222118 Categories: , , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 2222118 Categories: , , ,

End Suction Thermal Oil Centrifugal Pump – Model GTKF-K 80-200, (3600 RPM)

Transferable Liquids

Heat transfer oil or low viscosity industrial oil without aggressive solid particles.

Shaft Sealing

Single type mechanical seals resistant to high temperature are used.

Applications

  • Oil industry
  • Chemical and Petrochemical Industry

Design Features

  • Horizontal shaft, volute, single stage, end suction, air cooled, closed impeller centrifugal pumps.
  • Suction and discharge flanges conform to EN 1092-2 / PN 16. (flanges for pumps with stainless steel body conform to EN 1092 – 1 / PN 16).
  • With the detachable design of the pump, it is possible to remove the bearing assembly, the seal bearing, the pump shaft and the impeller without removing the snail from the pipe. (Optionally, the rotor group of the pump can be removed without removing the motor from the motor carrier by applying the spacer sleeve coupling).
  • All impellers are balanced dynamically or statically in accordance with ISO 1940 class 6.3.
  • The direction of rotation is clockwise when viewed from the motor side.
  • The axial force is compensated by the balancing vanes on the rear of the impeller.
  • TKF-K type pumps use “oil lubrication” bearings as standard.
SKU 2222118 Categories , , ,

UNIT PRICE

$2,752.00

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

See Why Thousands of Customers Trust Pump Supermarket

Take a quick look inside our Miami warehouse and daciscover the people, products, and expertise behind every order we ship.

✔ 4,000+ Products in Stock ✔ Fast Nationwide Shipping ✔ Expert Technical Support ✔ Trusted by Thousands of Customers

Description

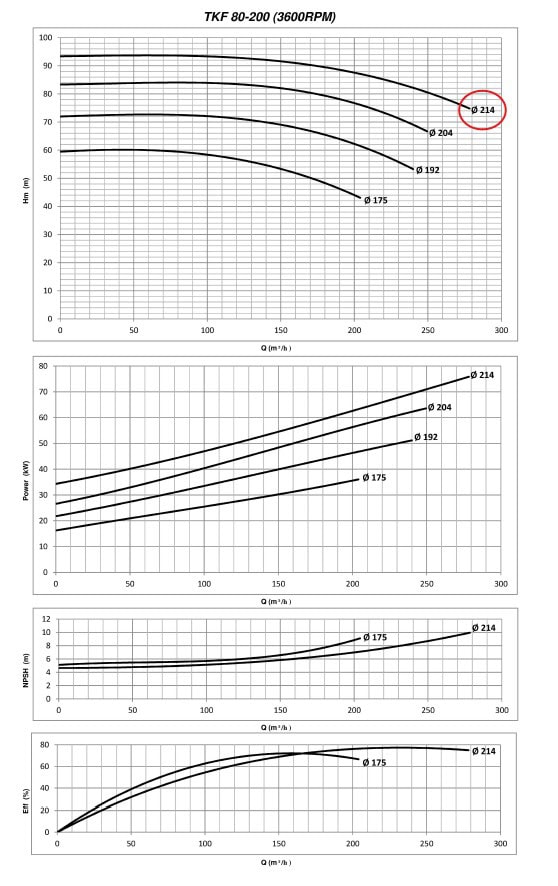

Pump Curve



Pump Code Guide

Parts List

Performance

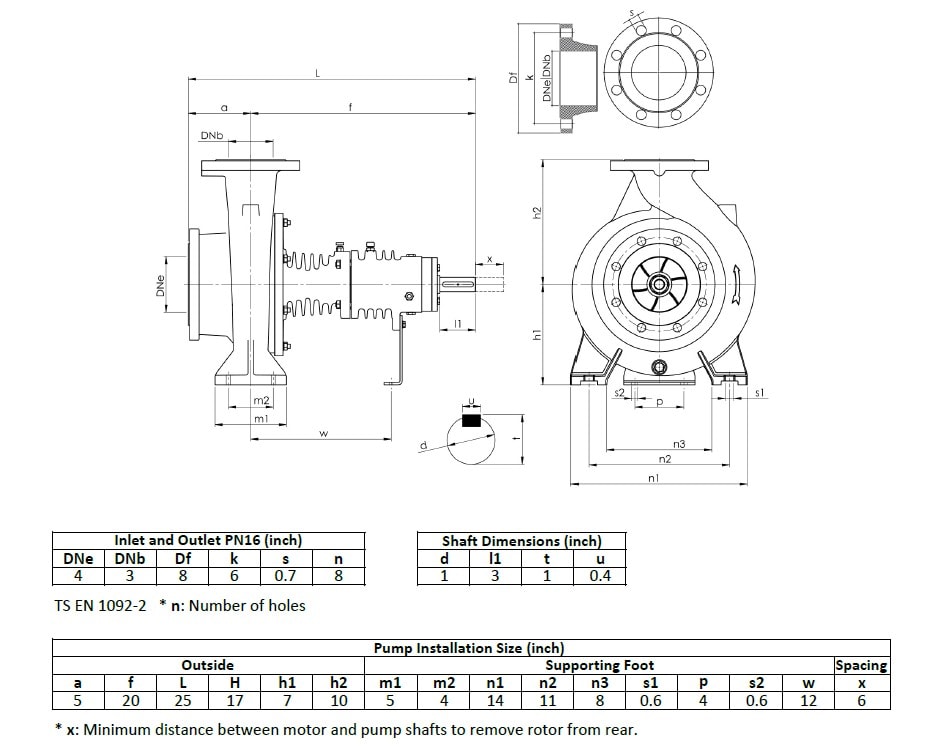

Dimensions



Pressure and Temperature Limits

Material Options
