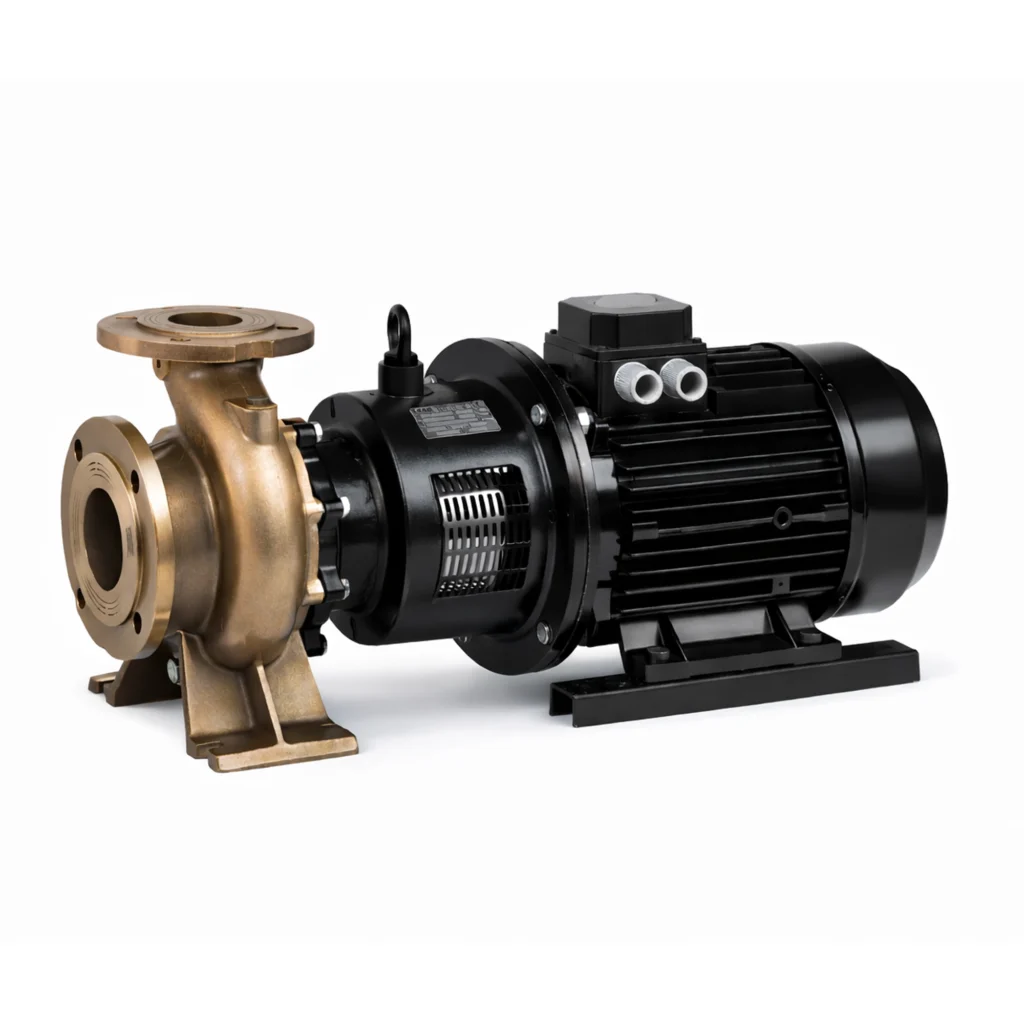

Electrical Centrifugal Pump — 68,700 GPH, 30 HP, 22 Kw, 460 Volts – 60 Hz – SAER MG2 80-160C-M (Bronze)

5/5

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Electrical Centrifugal Pump — 68,700 GPH, 30 HP, 22 Kw, 460 Volts – 60 Hz – SAER MG2 80-160C-M (Bronze)

5/5

 Unit Price Only

$11,354.99

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

Product Data >>>

Features

  • Great for firefighting and irrigation, heating and air conditioning systems.
  • 6MG2 pumps are single-impeller centrifugal type pumps with rigid coupling, bare shaft Electric pump.
  • The coupling is obtained by means of a block with ball bearing on which the pump shaft is secured and integrated with a rigid coupling.
  • The motor unit and the rotating part of the pump can be taken away without removing the pump body from the system piping.
  • Pump material is Bronze.
  • Sea Water applications.

Description

Technical Data

This SAER Centrifugal Electric pumps with rigid couplings offer a solid and reliable design which allows easy maintenance. Ideal for firefighting and irrigation, heating and air conditioning systems, heat recovery and pressurization groups.

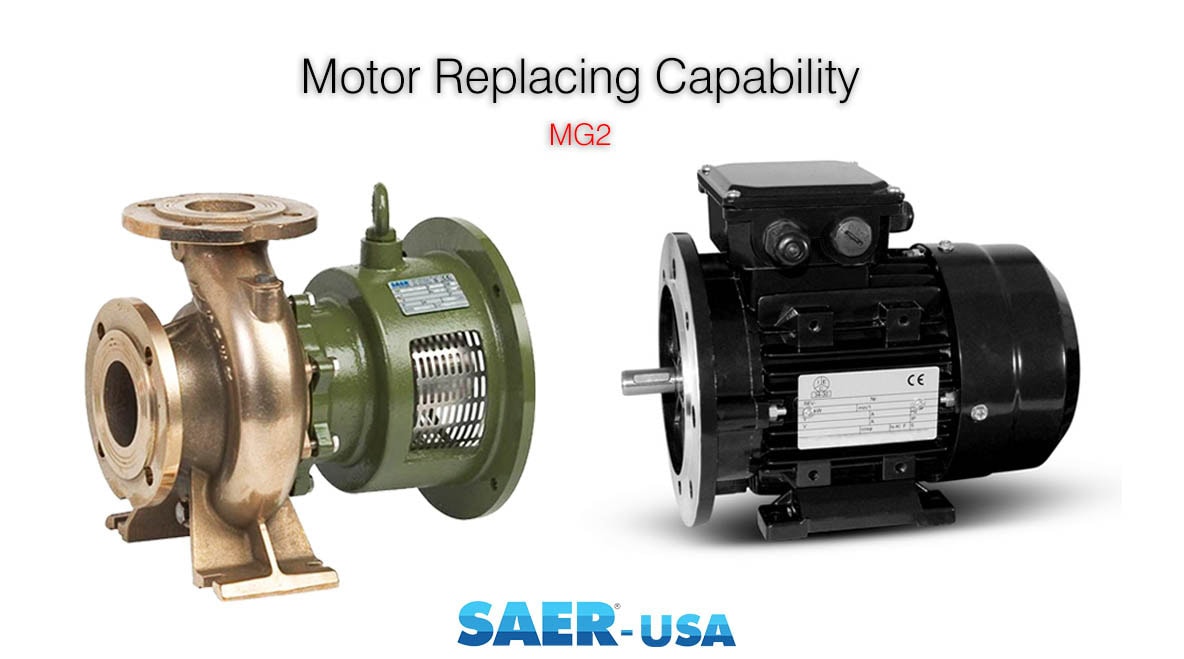

MG2 With Motor (Motor replacing Capability)

Applications

  • Recycling plants.
  • Heating, air conditioning.
  • Heat recovery, plants of water supply procurement.
  • Pressurizing units.
  • Firefighting.
  • Irrigation.

Constructive Characteristics

6MG2 pumps are single-impeller, centrifugal type with rigid coupling, bare shaft pump. The coupling is obtained by means of a block with ball bearing on which the pump shaft is secured and integrated with a rigid coupling. The motor unit and the rotating part of the pump can be taken away without removing the pump body from the system piping.

Hydraulics

  • Pump body with dimension and performances according to EN 733 rules, closed impeller dynamically balanced and with balance holes for the balancing of the axial thrust.
  • Shaft completely in stainless steel, greased ball bearings, flanges (UNI EN 1092-2): up to DN 150: PN16, from DN 200: PN10.
  • Motor: asynchronous with 2 poles and with external ventilation.
  • Protection: IP55.
  • Insulation: class F.
  • Frequency: 60 Hz.

Technical Data

Model MG2 80-160C-M
Brand SAER
Manufacturer’s Warranty 1 year Limited Warranty
Material Bronze
Port Size (in.) 4 and 3
Flow (GPH) 68,700
HP 30
Volts 460V – Three phase
Amps 35
Max. Total Head (ft.) 150
Max. Suction Lift (ft.) 17
Max. PSI 65.3
Suction Port (in.) 4
Discharge Port (in.) 3
Centrifugal Yes
Dimensions L x W x H (in.)
Product Weight (lbs.)

Additional information

Brands

category ac pumps

AC voltage

Horse power Ac

Phase

Self Priming

Pump material
