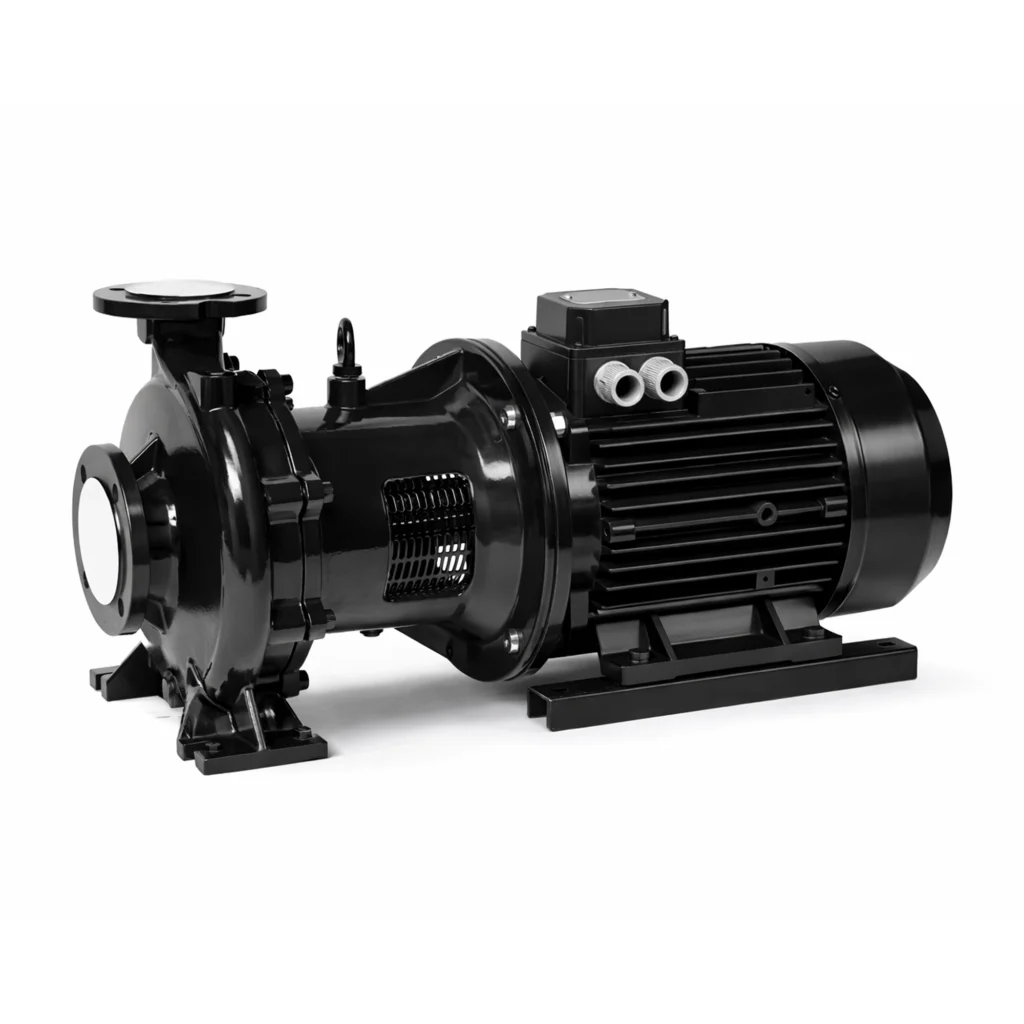

Centrifugal Electric Pump (Close-Coupled)
GEAZ Series Cast Iron, Single-impeller, close-coupled centrifugal pump designed for easy maintenance and compact installation. Ideal for firefighting and irrigation, heating and air conditioning systems, heat recovery, and pressurization groups.
Constructive Characteristics
Single-impeller centrifugal pump with rigid coupling and bare shaft design. Coupling is obtained by a block with ball bearing where the pump shaft is secured and integrated with the rigid coupling. The motor unit and rotating part can be removed without removing the pump body from the system piping.
- Pump body dimensions and performance according to EN 733
- Closed impeller dynamically balanced; balance holes for axial thrust control
- Stainless steel shaft with grease-lubricated ball bearings
- Asynchronous motor with external ventilation
- Protection: IP55
- Insulation class: F
- Frequency: 60 Hz
+1 (786) 613-5872
Technical Data
