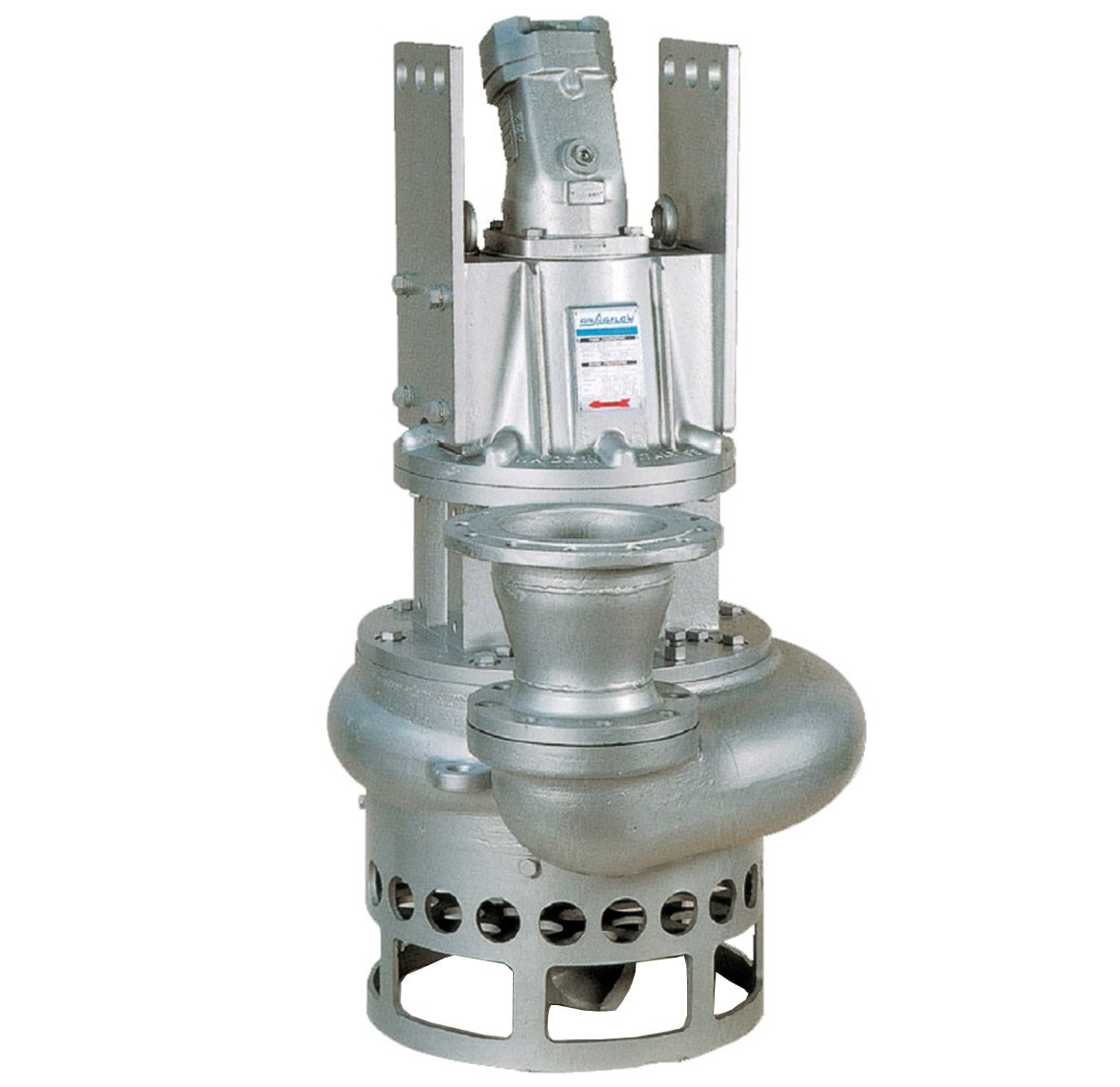

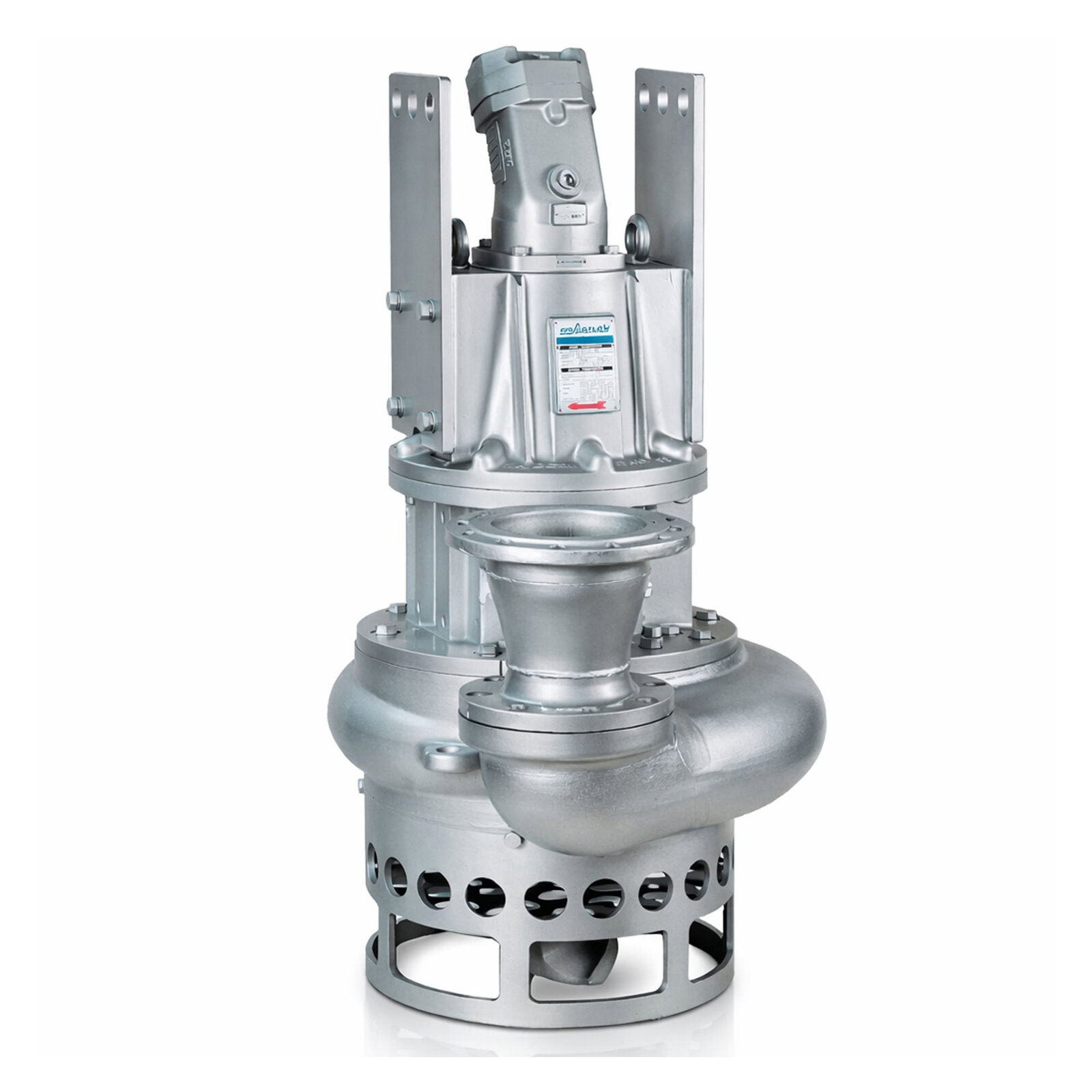

DRAGFLOW HEAVY DUTY SLURRY HYDRAULIC DRIVEN PUMP – HY50B

$24,309.60

Submersible heavy duty agitator pumps.
Main features:

  • All Pumps have standard high efficiency agitator to lift settled solids.
  • High abrasion resistance with high chrome wear parts.
  • Low rotation speed to reduce wear effect.
  • Able to handle up to 70% solids by weight.
  • All electric motors are class H with high service factor.

Electric pumps are available in 50Hz and 60Hz versions.
Certification CE/UL/CSA.


 Made in Italy

Estimated Delivery: 3 – 5 Business Days

Product is In stock – Please call for purchasing

Description

Submersible heavy duty agitator pumps.
Main features:

  • All Pumps have standard high efficiency agitator to lift settled solids.
  • High abrasion resistance with high chrome wear parts.
  • Low rotation speed to reduce wear effect.
  • Able to handle up to 70% solids by weight.
  • All electric motors are class H with high service factor.

Electric pumps are available in 50Hz and 60Hz versions.
Certification CE/UL/CSA.


 Made in Italy

Estimated Delivery: 3-5 Business Days

  PUMP SPECIFICATIONS
Max Capacity [GPH] 59,500
Max Head [ft] 171
Impeller diameter [in]/type 19/2 blades closed
Flanged bore size [[DN/PN] DN4″/PN0.4″
Solid handling [in] 1.4
Weight [lbs] 1322



  HYDRAULIC MOTOR
Motor displacement [cc] 75
Max. oil flow rate[GPM] 23.7
Max. pressure [PSI] 4351
Power [kW-HP] 45-60
Speed [RPM] 1180



  MATERIALS
Casing Spheroidal cast iron EN-GJS500-7 (EN1563)
Motor housing Cast iron EN-GJL-250 (EN 1561)
Wear parts High chrome EN-GJN-HV600 (XCr18) (EN12513)
Main shaft High tensile steel 39NiCroMo3 (AISI 9840)



  SEALS / LUBRICANT
Motor side seals 2 lip seals (BUNA)
Impeller side seals 5 lip seals (3 BUNA + 2PTFE) + 1 V-ring (TPU)
Oil type ISO 32



  DIMENSIONS [in]
H W D F H1 A B C
52.3 36 30.4 24 11 15 16.4 14.2
