DRAGFLOW HEAVY DUTY SLURRY ELECTRIC DRIVEN PUMP – EL7.5, 7.5HP, 460V

HEAVY DUTY SLURRY PUMP
Free Shipping
DRAGFLOW HEAVY DUTY SLURRY ELECTRIC DRIVEN PUMP - EL7.5, 7.5HP, 460V - Image 2
DRAGFLOW HEAVY DUTY SLURRY ELECTRIC DRIVEN PUMP - EL7.5, 7.5HP, 460V - Image 3
DRAGFLOW HEAVY DUTY SLURRY ELECTRIC DRIVEN PUMP - EL7.5, 7.5HP, 460V - Image 4
SKU: 1756101 Categories: , , , Tags: , , , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 1756101 Categories: , , , Tags: , , , ,
SKU: 1756101

DRAGFLOW HEAVY DUTY SLURRY ELECTRIC DRIVEN PUMP – EL7.5, 7.5HP, 460V

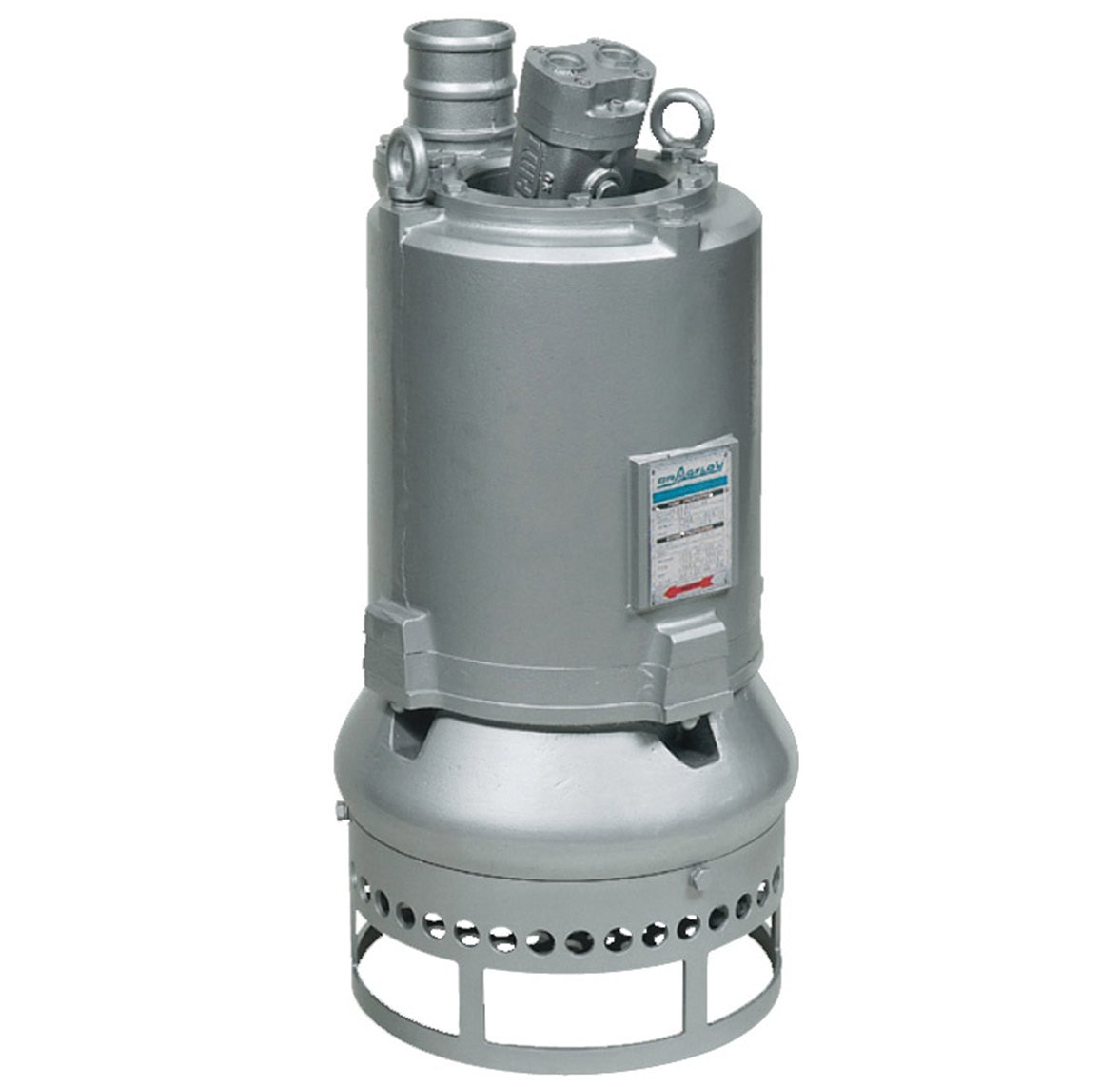

Dragflow EL7.5 Submersible Slurry Pump – Heavy Duty Agitator Pump

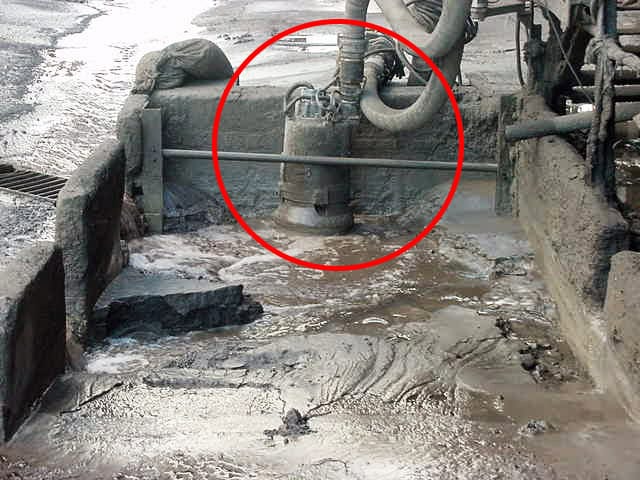

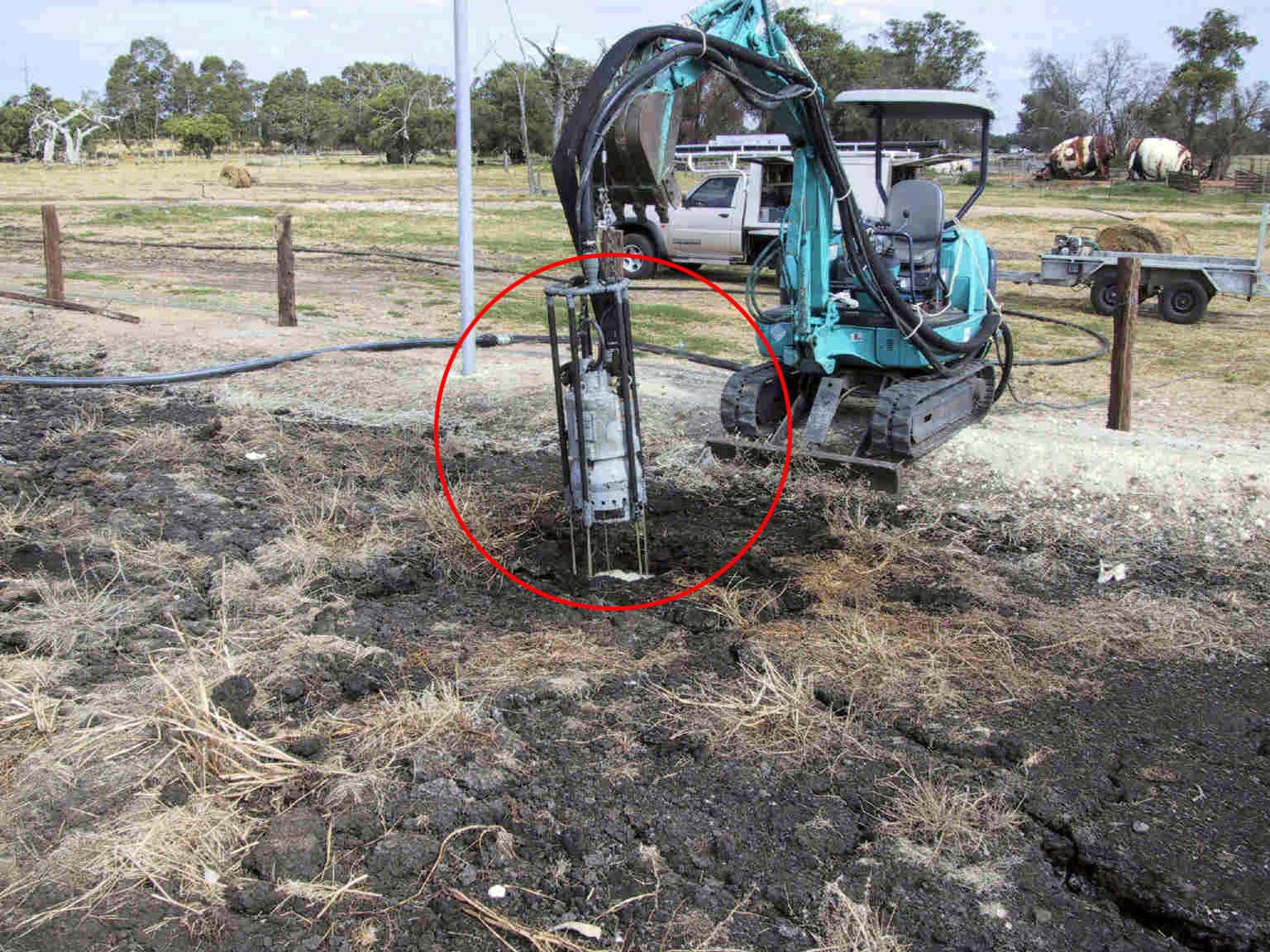

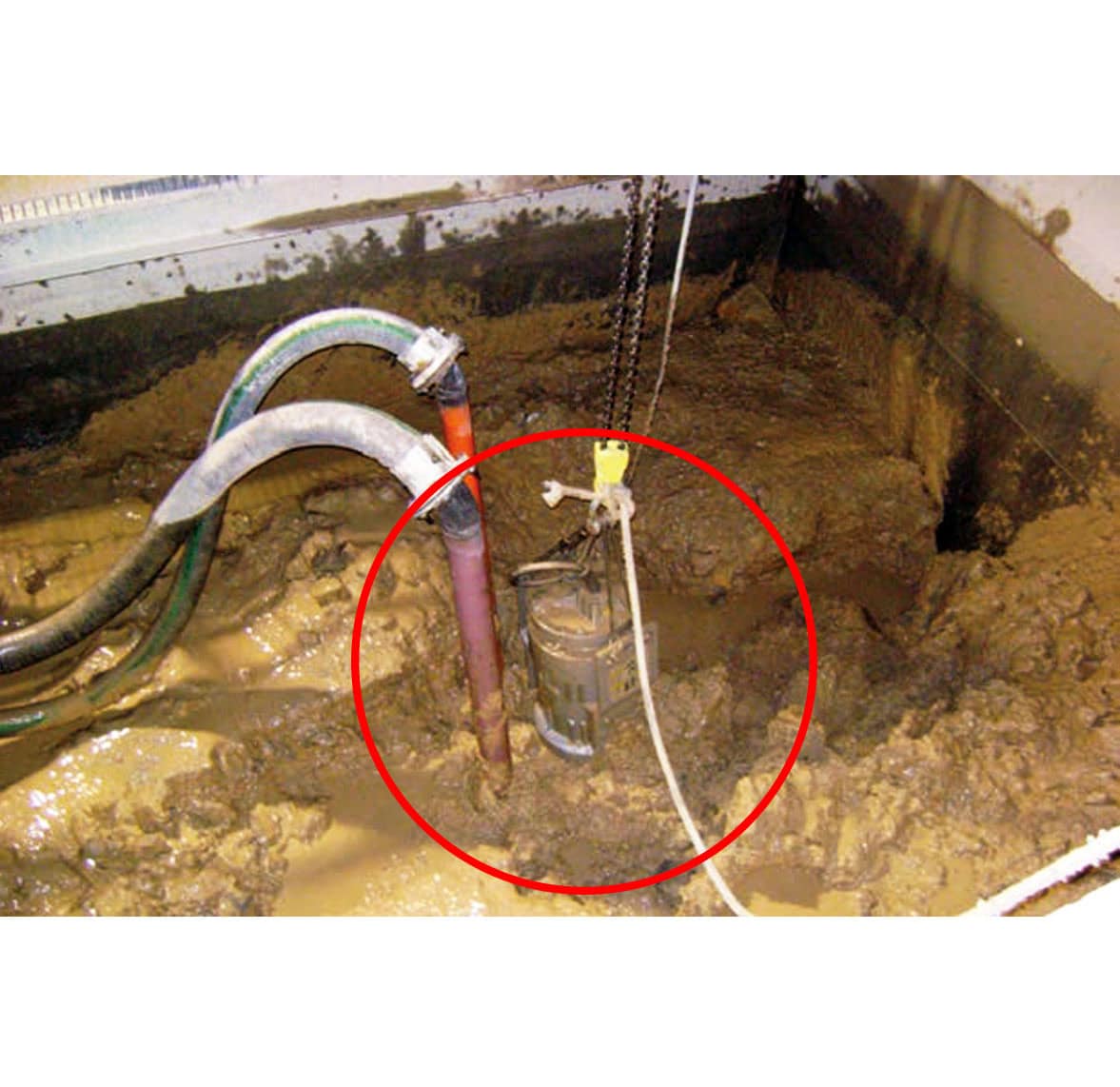

Industrial submersible slurry pump designed for dredging, mining, sand removal, and heavy solids handling. Built with high-chrome wear components and integrated agitator for lifting settled solids in demanding environments.

Applications
  • Dredging and sediment removal
  • Mining slurry pumping
  • Sand, gravel, and sludge transfer
  • Industrial waste and tailings handling
  • Construction site dewatering with solids

Heavy Duty Features
  • Integrated agitator lifts settled solids for efficient slurry pumping
  • High-chrome wear components for extreme abrasion resistance
  • Handles up to 70% solids by weight
  • Low rotation speed reduces wear and extends service life
  • Heavy-duty electric motor with Class H insulation

Certifications
CE / UL / CSA Certified

Made in Italy

Made in Italy

SKU 1756101 Categories , , , Tags , , , ,

UNIT PRICE

$15,667.34

Only 2 left in stock

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

  Pump Specifications
Capacity [h – USGPM] 264
Head [ft.] 38,7
Impeller diameter [in.]/type 4 blades opened
Hose adaptor diameter [in.]  4
Cross section diameter [in.] 1
Weight (without cable) [lbs.] 550



  Electric Motor
Power [kW-HP] 5.5-7.5
Voltage [V]/Current [A]  460/ 9.8
Phases/Poles/Frequency [Hz]  3/4/60
Speed [RPM] 1750
Insulation class  H
Power cable 20m (IEC 60245- 4) H07RN-F 4G10



  Materials
Casing Spheroidal cast iron EN-GJS-500-7 (EN 1563)
Motor housing Spheroidal cast iron EN-GJS-500-7 (EN 1563)
Wear parts High chrome EN-GJN-HV600 (XCr18) (EN 12513)
Main shaft High tensile steel 39NiCrMo3 (AISI 9840)



  Seals / Lubricant
Motor side seals 1 mechanical seal (silicon carbide in oil bath)
Impeller side seals 1 mechanical seal (silicon carbide in oil bath) + 4 lip seal (2 BUNA + 2 TPU)
Oil type ISO 32

Dimensions (in.)

H W D F H1 PG
36.8 17.4 17.4 16.6 22 4

Performance Curves

Additional information

category ac pumps

Horse power Ac
