Description

TECHNICAL DATA

Operating Range: capacity up to 47 gpm; head up to 170 ft
Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
Liquid temperature Range:from 32°F to +95°F for domestic use for other use: from 32°F to +104°F
Maximum Suction depth: 29 ft
Maximum ambient temp. 122°F
Maximum operating pressure: 94 psi
Installation: fixed or portable in a horizontal position
Power Supply: 230v 60Hz Single Phase

CONSTRUCTIONAL FEATURES OF THE PUMP

CONSTRUCTIONAL FEATURES OF THE MOTOR

Asynchronous type, closed, with external air cooling.
Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life.
Incorporated thermo-amperometric protection and permanently inserted condenser in the single phase version.
It is recommended to use overload protection for three phase motor protection, in compliance with current legislation. Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41).

APPLICATIONS

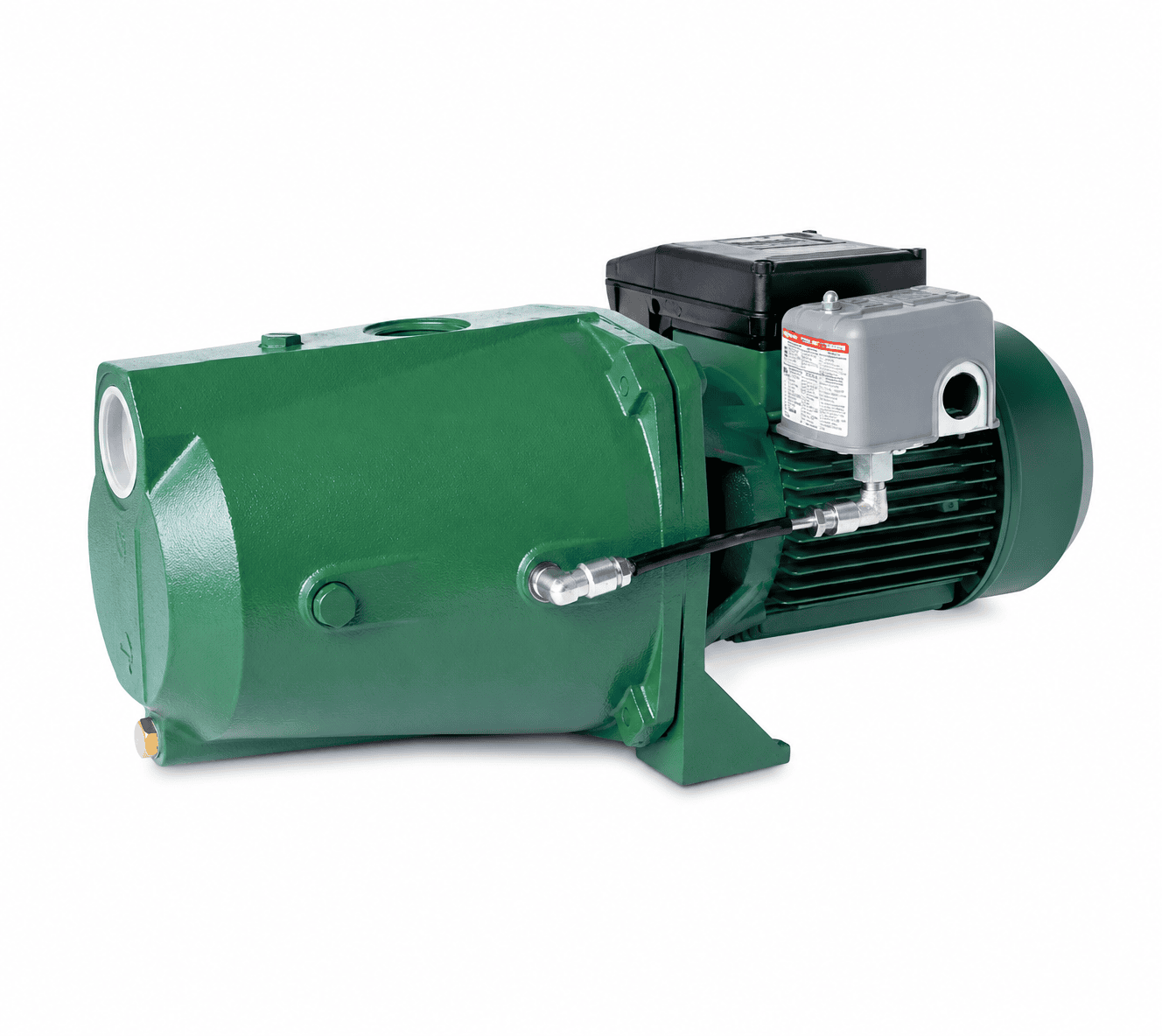

Self priming centrifugal pump with optimal liquid aspiration even in the presence of air bubbles.
Suitable for pumping water with low levels of sandy impurities.
Especially used in domestic water supply installations.
Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.

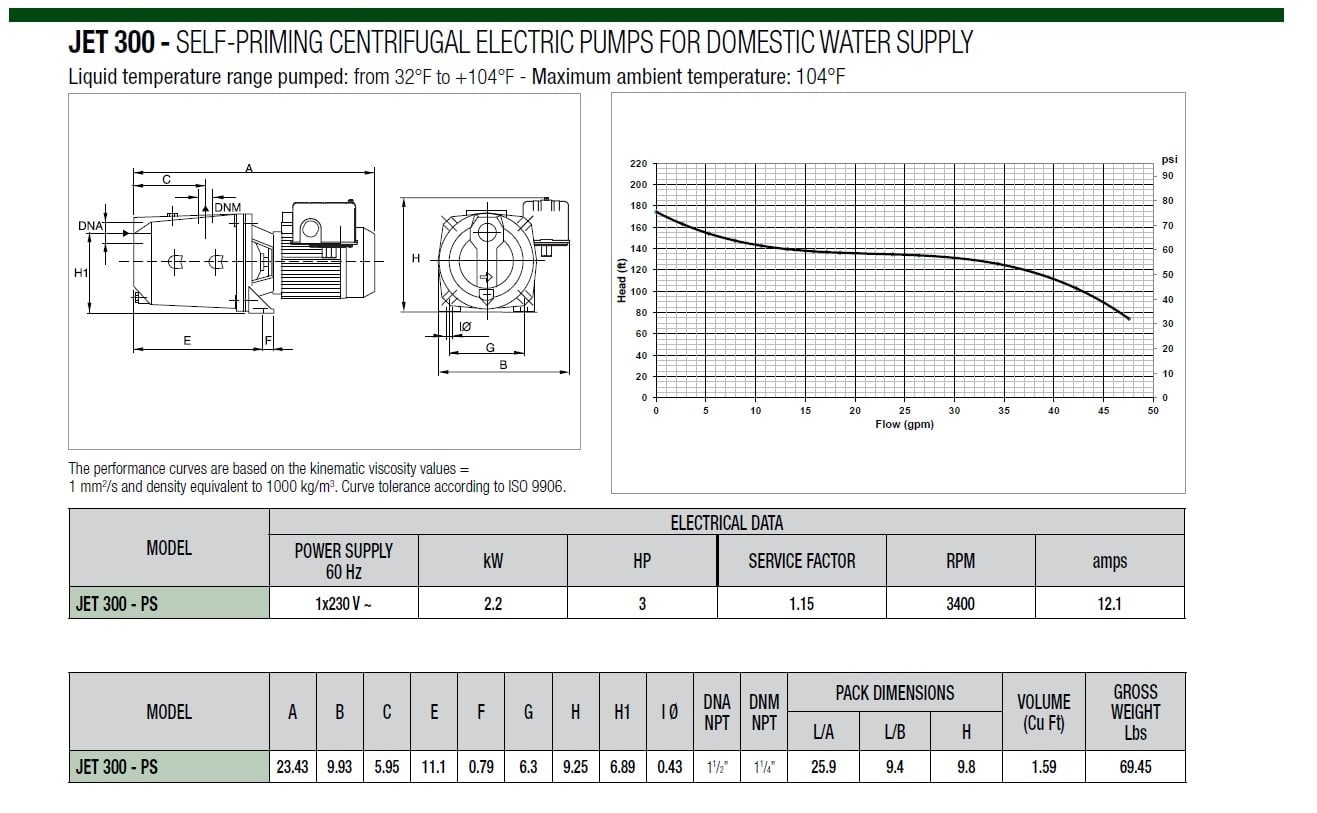

Pump Performance and dimensions
