Description
DAB JETCOM self-priming centrifugal pump for domestic use, also able to run in the presence of air bubbles, with Technopolymer body. Optimal for residential pressure boosting, small-medium irrigation systems and gardening applications.

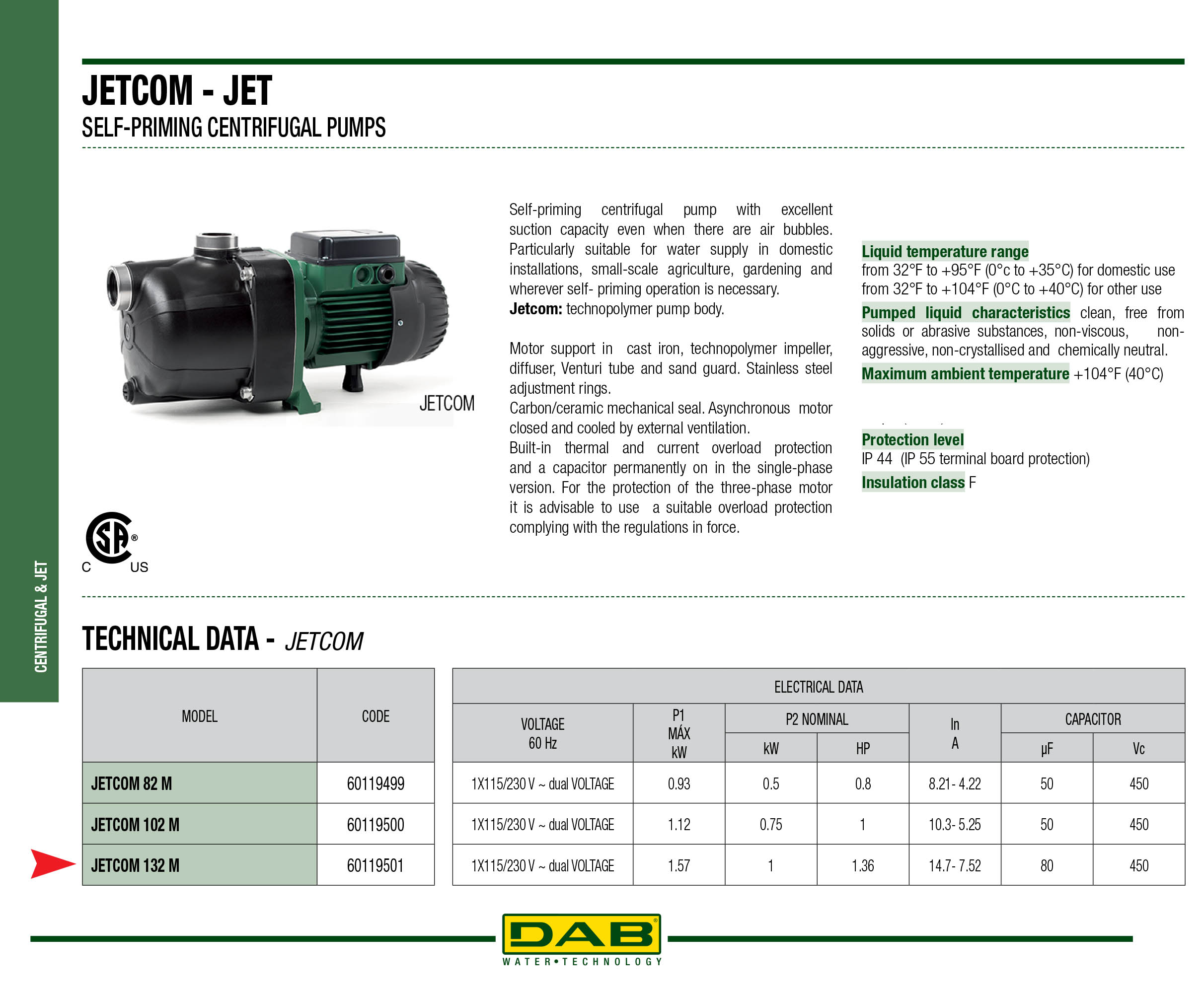

TECHNICAL DATA
- Operating Range: From 2 to 24 gpm with a head up to 150ft ( 70 psi )
- Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
- Liquid temperature Range: From 32°F to 95°F for domestic use or 32°F to 120°F for other uses.
- Maximum Suction depth: 26 ft
- Maximum ambient temp. 104°F
- Maximum operating pressure: 70 psi
- Installation: fixed or portable in a horizontal position
- Power Supply: 115-230v 60Hz Dual Voltage
Features
- JET self-priming centrifugal electric pump
- Technopolymer pump body and motor support
- Internal ejector
- Motor cooling ensured by design of fan guard
Advantages
- Ability also to handle water containing gas
- Structure strength and flexibility
- Optimal motor cooling
Benefits
- Ability to operate also in the presence of air bubbles and small quantities of sand
- Increased safety
- High suction capacity
- Prevention of malfunctions and maintenance of motor efficiency
- Standardization of components enables optimal spare parts management
