Description

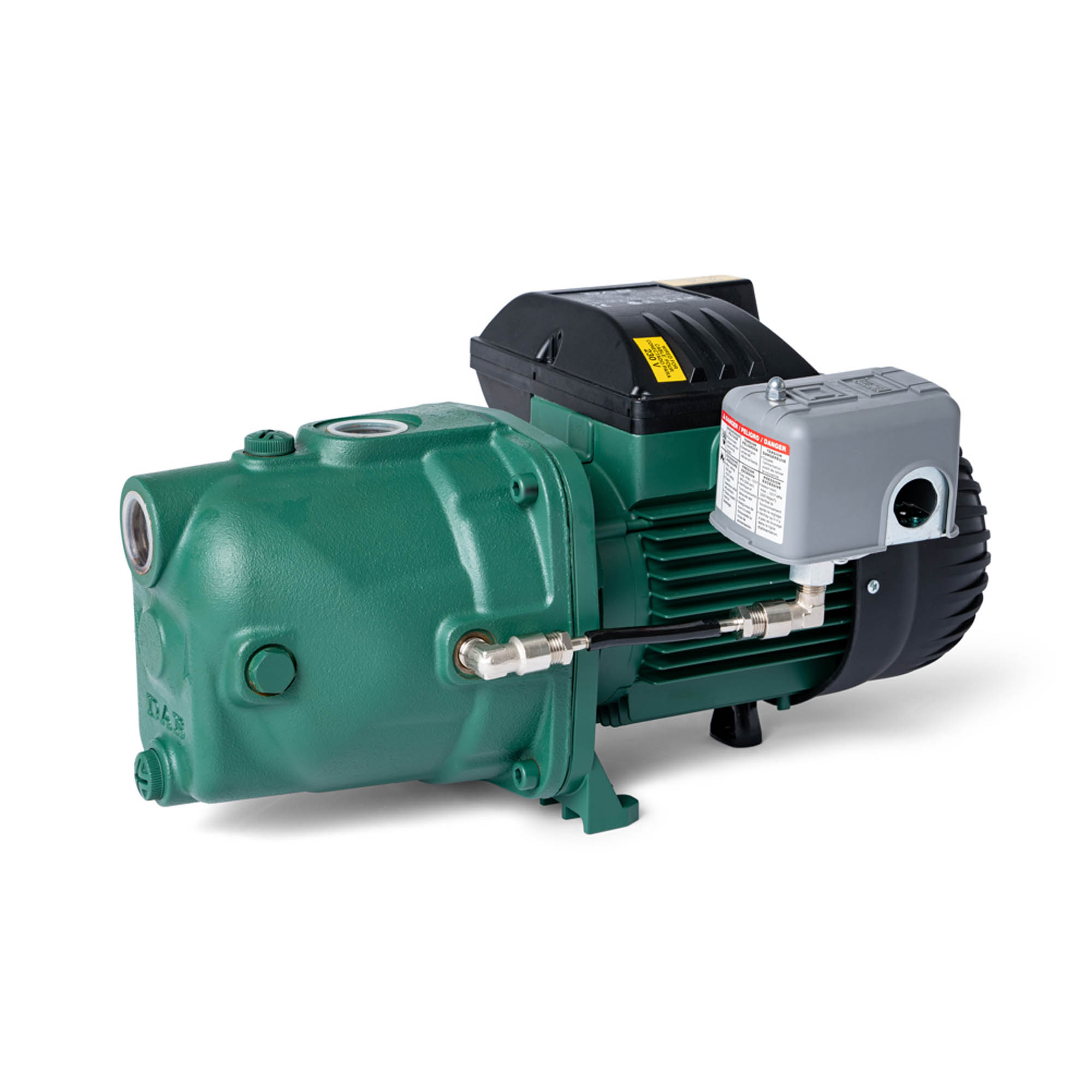

DAB JET self-priming centrifugal pump for domestic use, also able to run in the presence of air bubbles, with Cast Iron body. Optimal for residential pressure boosting, small-medium irrigation systems and gardening applications.

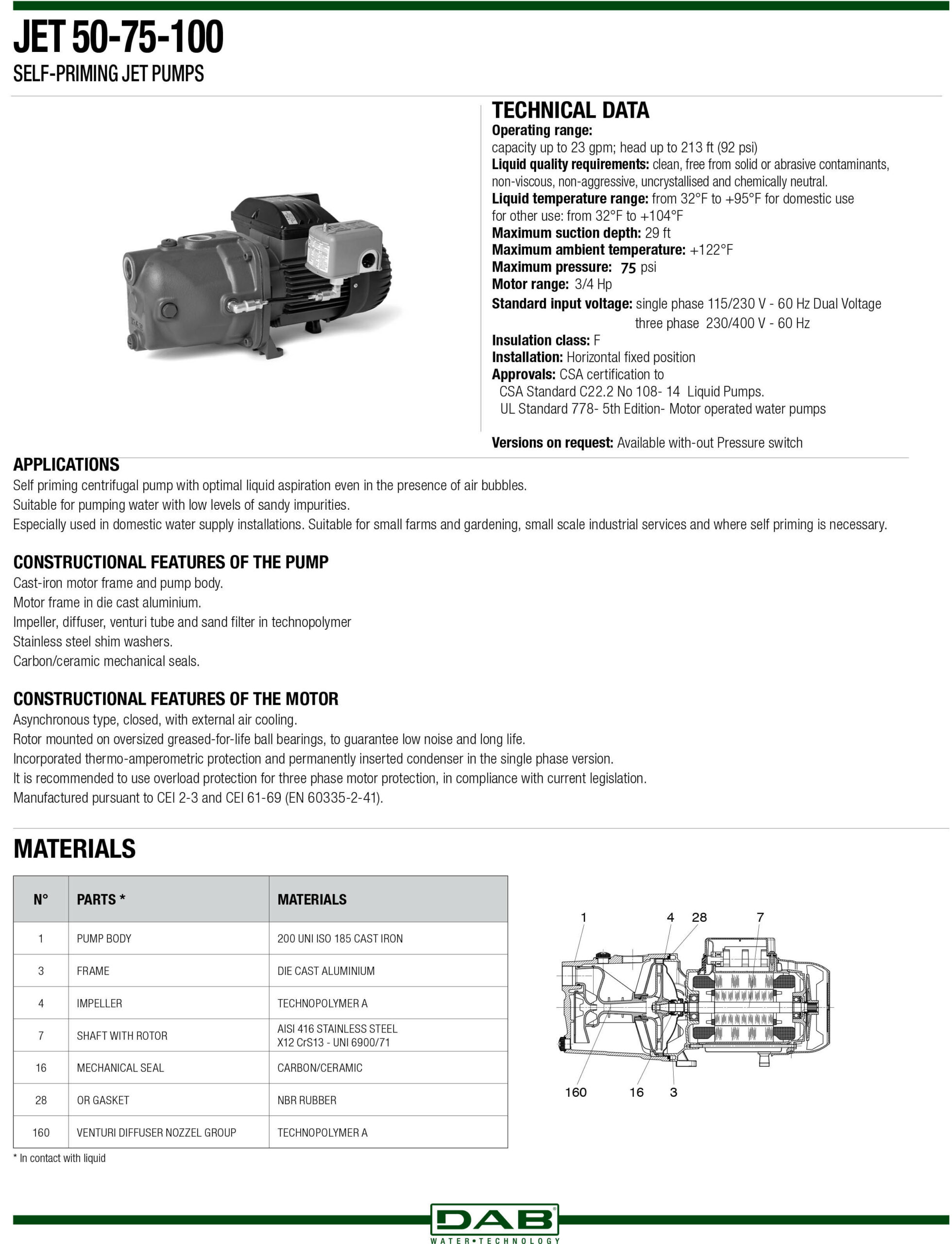

TECHNICAL DATA

• Operating Range: From 2 to 17 gpm with a head up to 170ft ( 75 psi )
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range: From 32°F to 95°F for domestic use or 32°F to 120°F for other uses.
• Maximum Suction depth: 26 ft
• Maximum ambient temp. 104°F
• Maximum operating pressure: 75 psi
• Installation: fixed or portable in a horizontal position
• Power Supply:  115-230v 60Hz Dual Voltage

Features

• JET self-priming centrifugal electric pump
• Cast Iron pump body and motor support
• Internal ejector
• Motor cooling ensured by design of fan guard

Advantages

• Ability also to handle water containing gas
• Structure strength and flexibility
• Optimal motor cooling

Benefits

• Ability to operate also in the presence of air bubbles and small quantities of sand
• Increased safety
• High suction capacity
• Prevention of malfunctions and maintenance of motor efficiency
• Standardization of components enables optimal spare parts management
