Description

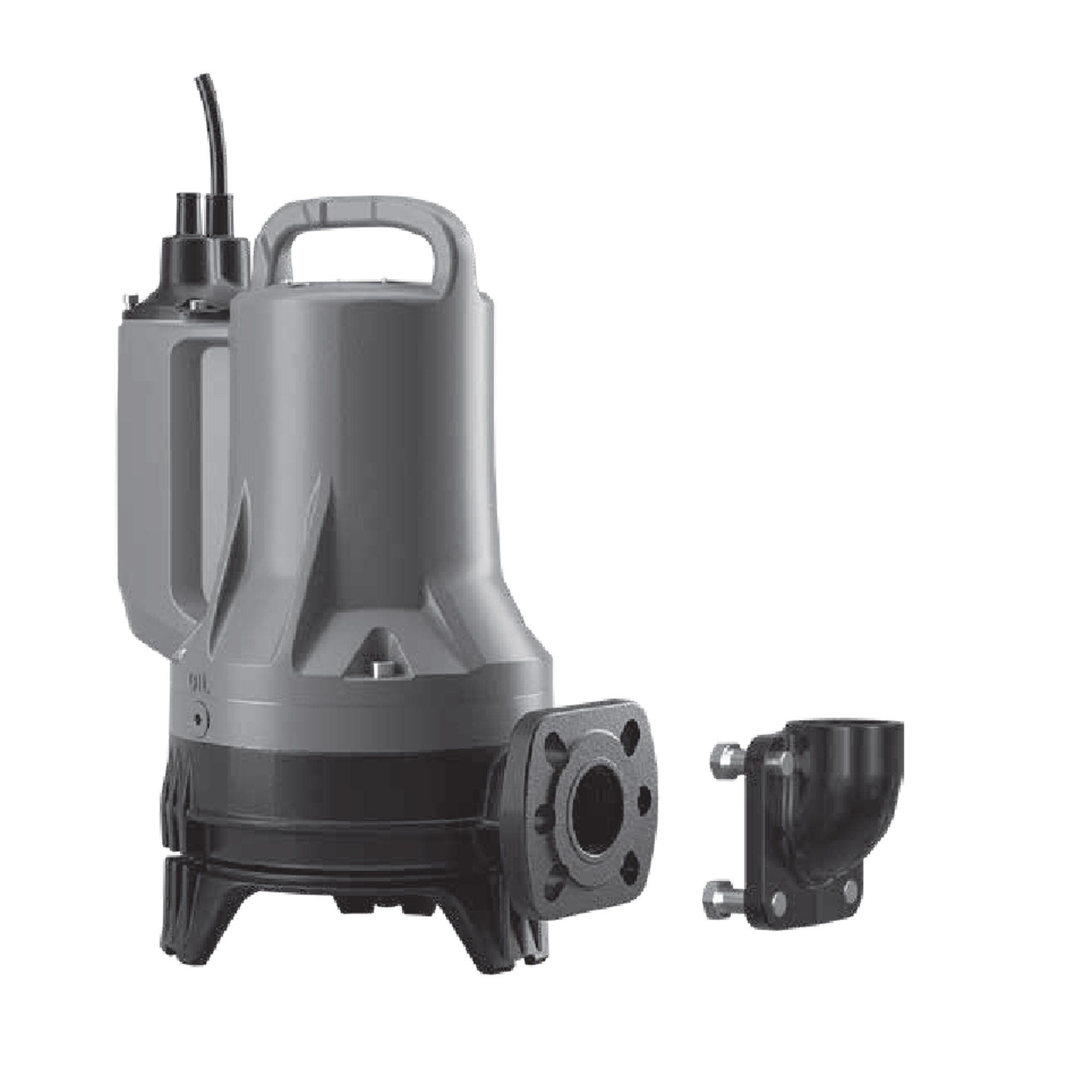

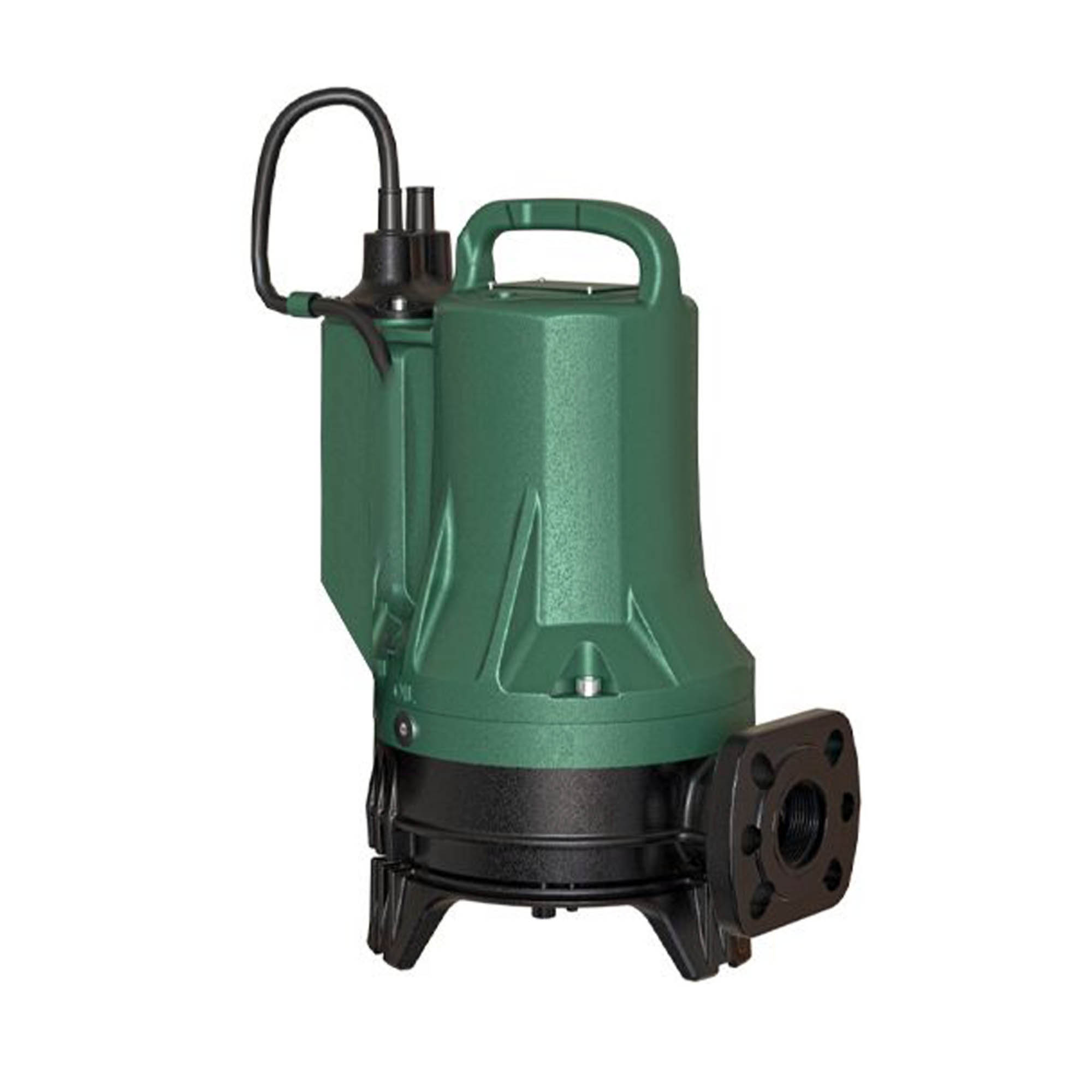

Submersible grinder pump with shredder designed for lifting and transferring sewage water in commercial building service. In compliance with CSA Standards C22.2 No.108 – 14, UL Standard No. 778 which applies to sewage lifting plants containing faecal material in buildings and construction sites. Suitable for fixed installations with a coupling or mobile if the pumps is placed directly on the bottom of the tank. Thanks to the shredder, the pump is suitable for installations with small diameter pipes or installation that require high pressures. High strength shredding system in AISI 630 steel. Double mechanical seal in silicon carbide completely protected in oil bath and not in contact with the pumped liquid. Motor shaft in AISI 304 stainless steel, resin-fastened cable gland. The reduced overall dimensions and the outlet ports both flanged and threaded make it ideal for replacements. Maintenance is fast due to its design that allows easy access to the pump’s main components. (comes with capacitor box)
Technical Data
|
MODEL |
CODE | ELECTRICAL DATA | ||||||
|
VOLTAGE |
P1 MAX |
P2 NOMINAL |
In |
|
||||
|
KW |
HP | DN |
Phase |
|||||
|
FX 15.11 |
60194123 | 220V/60Hz | 1.4 | 1.1 | 1.5 | 6.12-6.23 | 40 | Single |
Range Performance
Dimensions And Weights
|
MODEL |
A |
B |
H |
H1 |
Delivery |
PACKING |
Cable length |
WEIGHT |
||
|
Discharge |
DN 1 |
Holes |
||||||||
|
FX 15.11 |
12 |
8.5 | 16.6 | 3.4 | 1.5″ NPT | DN32 PN10 / 6 DN40 PN6 |
4
2 |
26 x 14.6 x 15.7 | 33 | 78 |
