Description
E.SYBOX Brochure

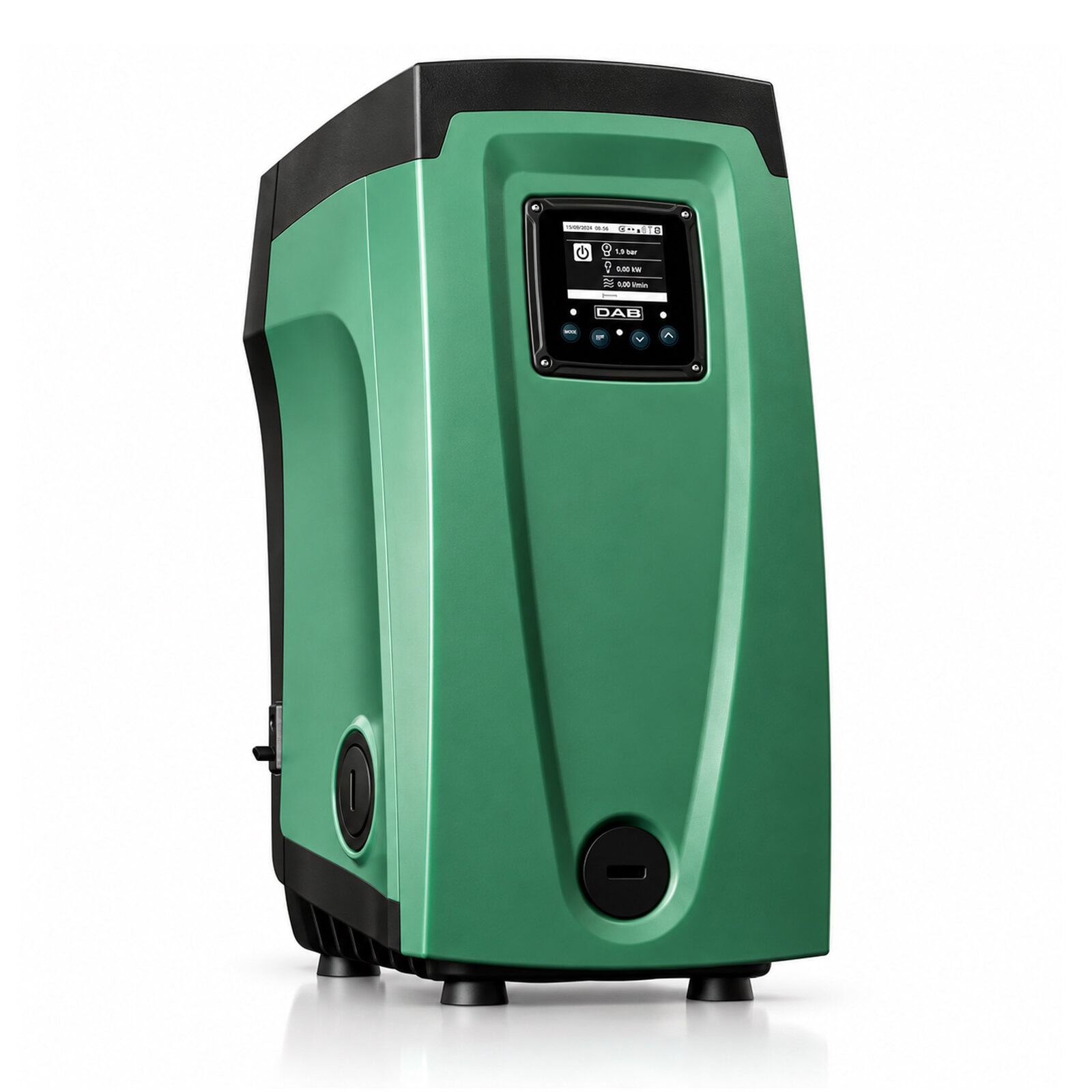

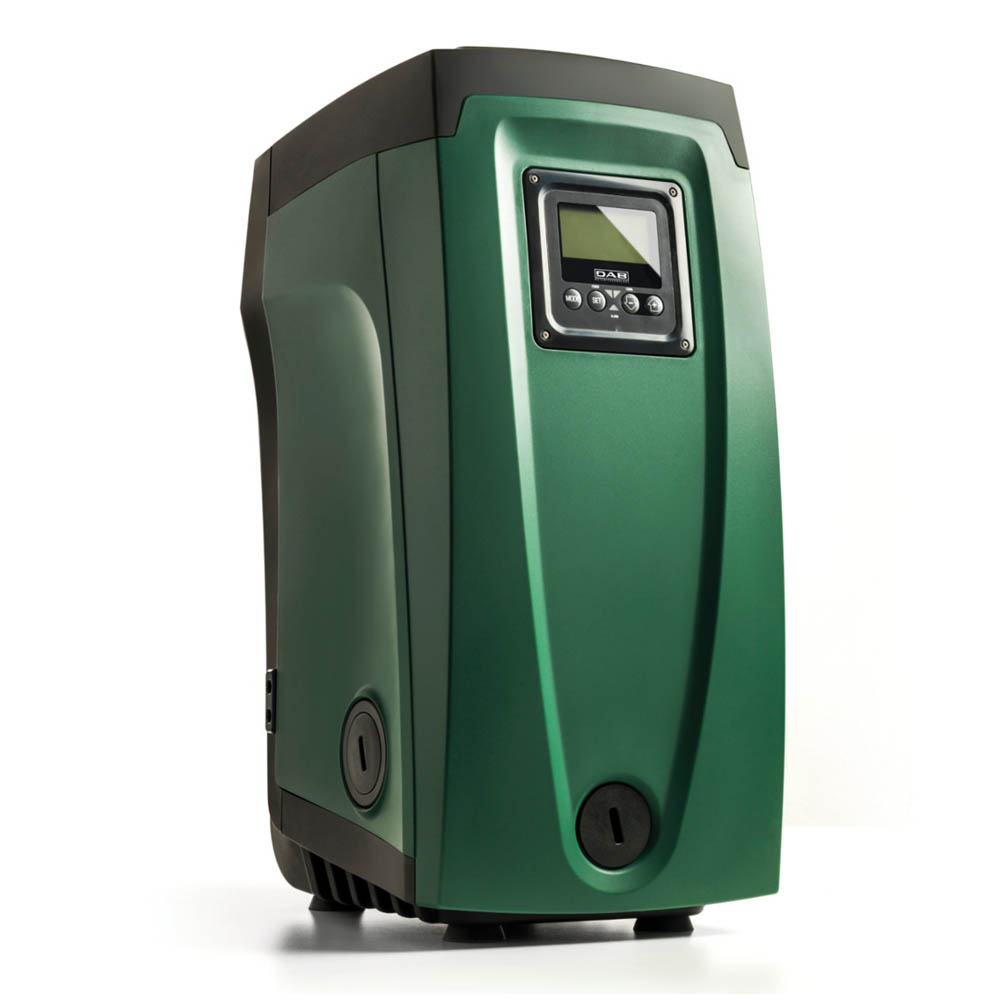

DAB E.SYBOX Electronic Water Booster System
FEATURES
E.SYBOX Pressure booster pump comprises a self-priming and multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable with high resolution LCD display and an integrated 2 litre expansion tank. May be installed either vertically or horizontally, in closed spaces without high level of air exchange.
The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities. The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact poroduct very quiet (45dB under normal use).
The wireless system enables the creation of other pressurization groups able to connect with other DAB devices (e.g., e.sylink). The constant pressure can be set from 1 to 6 bar for E.SYBOX.
- Made in Italy
- Self-priming, multi-stage pump with electronic inverter management
- Pressure and flow sensors
- High-resolution LCD display
- Integrated 0.5-gallon expansion tank
- Installs vertically or horizontally
- Constant pressure can be set from 15 to 85 PSI
- Durable ABS enclosure
- Suitable for potable water, gardening and irrigation
- Allows for creating groups of up to four pumps
| Brand | DAB-USA |
| Manufacturer’s Warranty | 2 years Limited Warranty |
| Ship Weight | 59.5 lbs |
| Port Size (in.) | 1 |
| Flow (GPH) | 1,902 |
| Volts | 230V – 50/60 Hz |
| Amps | 10 |
| HP | 2.11 |
| Max. Total Head (ft.) | 213 |
| Max. Suction Lift (ft.) | 26 |
| Max. PSI | 85 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1 |
| Self-Priming | Yes |
| Diaphragm | No |
| Solid Handling (in.) | No |
| Battery Connections | No |
| Dimensions L x W x H (in.) | 26 x 13 x 19 |
| Product Weight (lbs.) | 58.5 |
E.sybox Technical Features
E.sybox Vertical Intallation

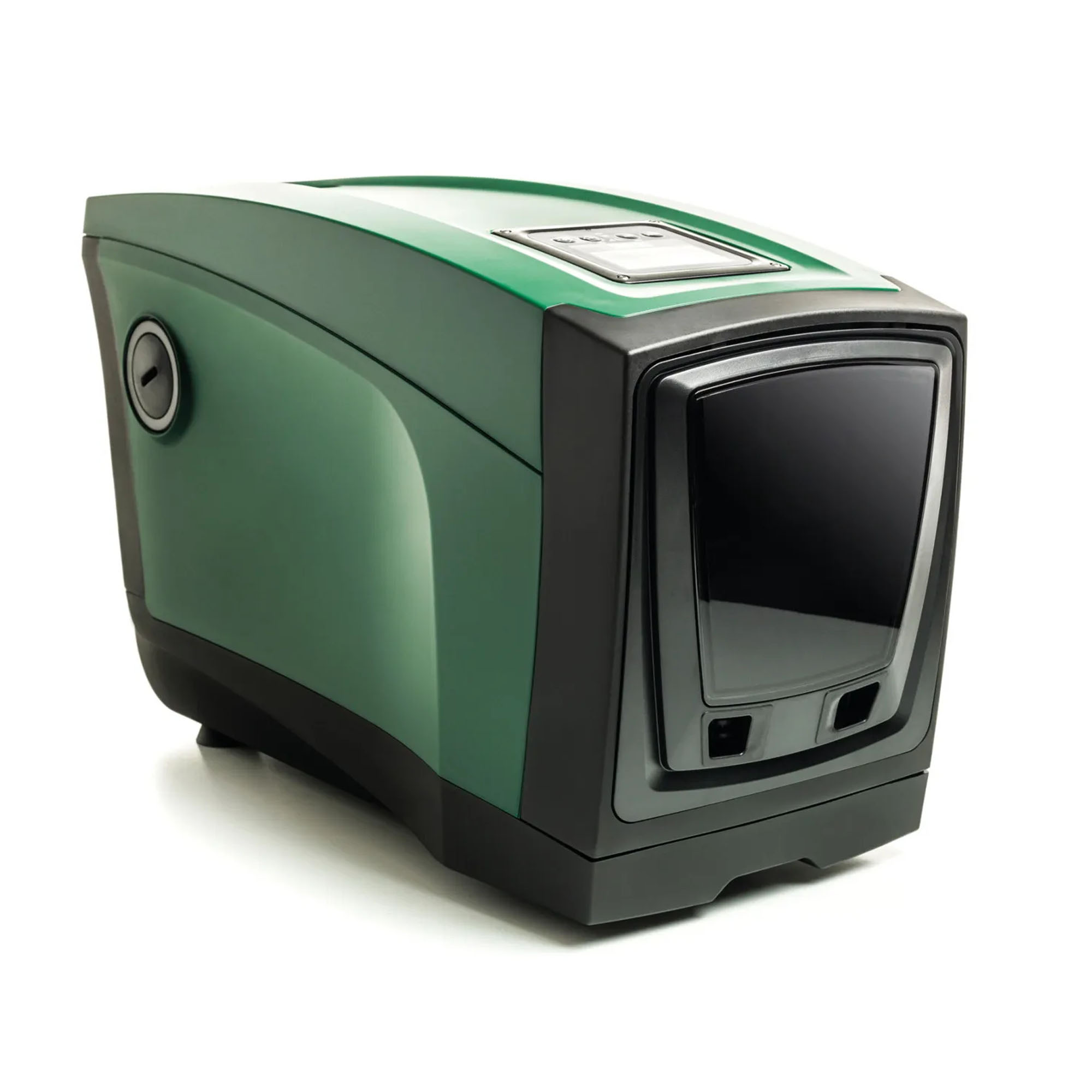

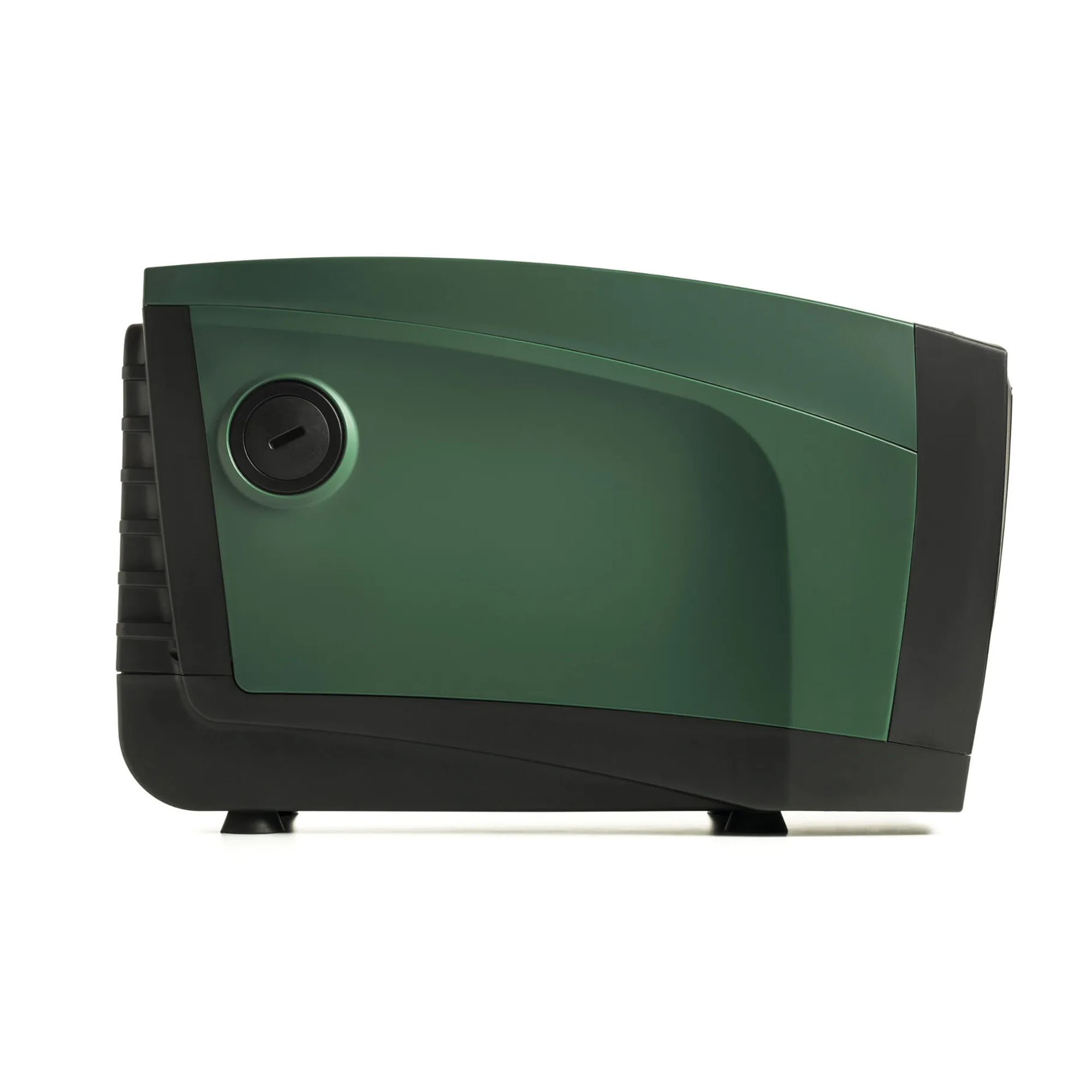

E.sybox Horizontal Intallation
E.sybox Configuration
