Description
Electronic pressure switch + 3 ways fitting + non-return valve + complet pump protection. Patented Model.

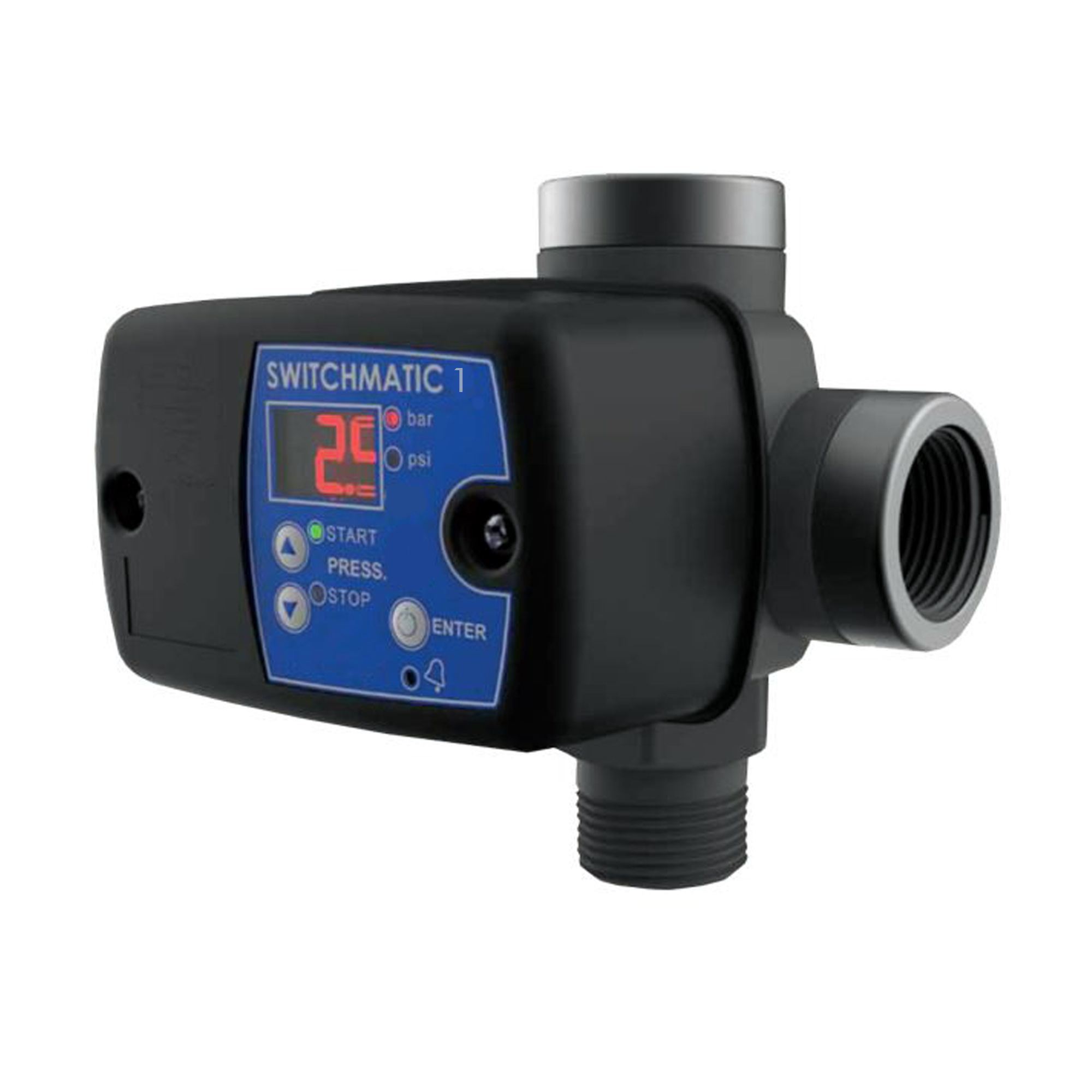

T-KIT Switchmatic is an electronic pressure switch integrated in a 3-ways fitting with a digital pressure gauge. It can manage the start and stop of single-phase electric pumps up to 3 HP (2,2 kW). Cut-in and cut-out pressure implementation can be set easily and accurately through a users friendly control panel. Wiring is carried out identically to a conventional electromechanical switch.
It can operate as a differential pressure switch and as an inverted pressure switch. There is an internal non-return valve.
OPERATING CHARACTERISTICS

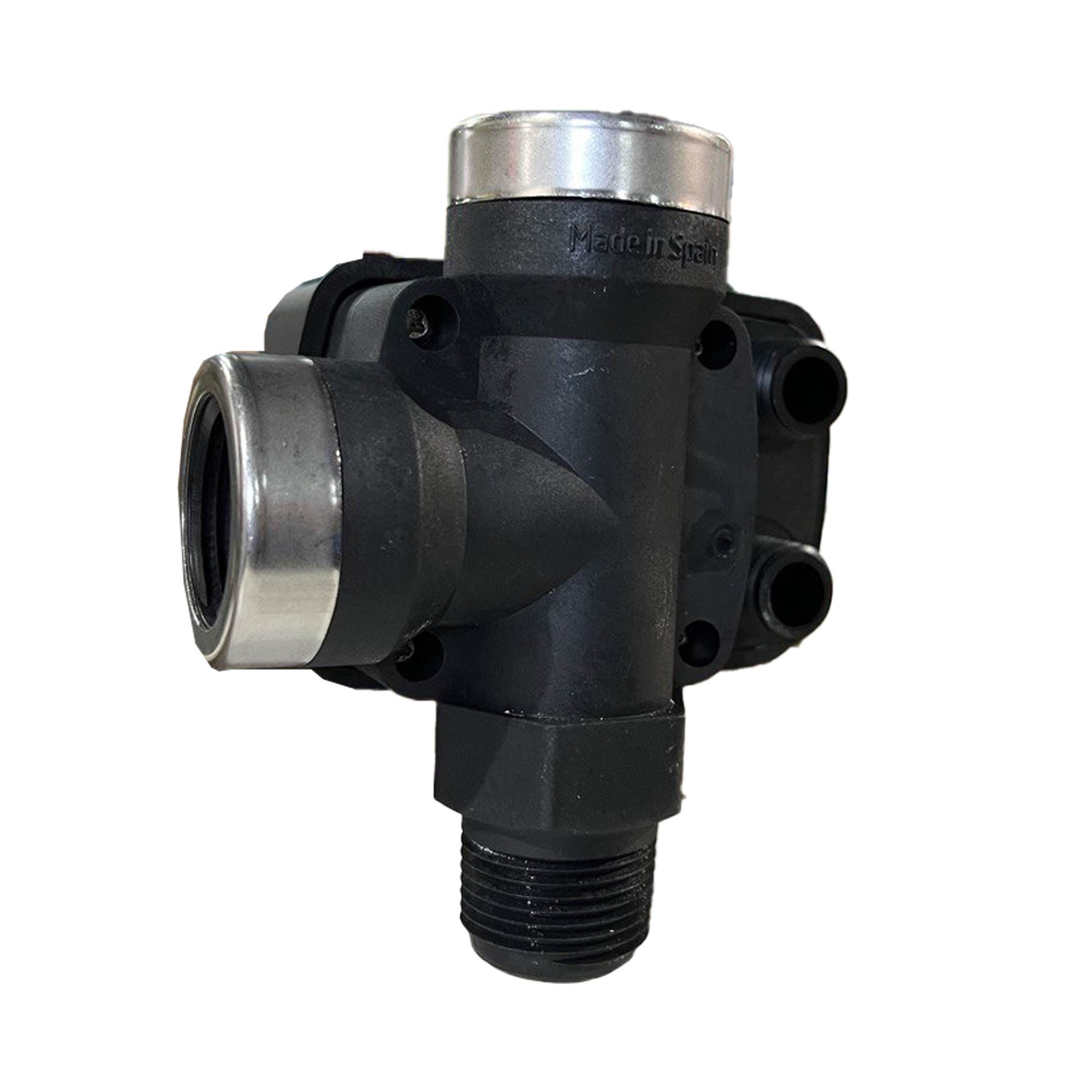

– Electronic pressure switch integrated in a 3 ways fitting.
– Inner non-return valve.
– Sleep mode with low power consumption.
– Inner pressure transmitter.
– Integrated pressure gauge with bar and psi instantaneous display.
– User friendly control panel with 3-digits display, led-lights and pushbuttons.
– Dry-running protection by current (for type T-KIT Switchmatic 2) and for minimal pressure
(for type T-KIT Switchmatic 1).
– ART function (Automatic Reset Test). If the device has been stoped due the action of the
safety system against dry operation, the ART tries to connect the pump, with a programmed
periodicity because the water supply could have been restored.
– Overload protection (only type T-KIT Switchmatic 2).
– Rapid-cycle alarm: when the hydropneumatic tank has lost the air and frequent start-stops
are produced an alarm is activated and is delayed the start.
– Manual start.
– Operation modes: differential, inversed differential and synchronized (only for T-KIT Switchmatic
2).
– Advanced MENU with complementary settings.
– Register of operational parameters. Information about: operating hours, counter of starts,
counter of connections to the power supply.
– Register of alarms. Information about type and number of alarms.
