Description

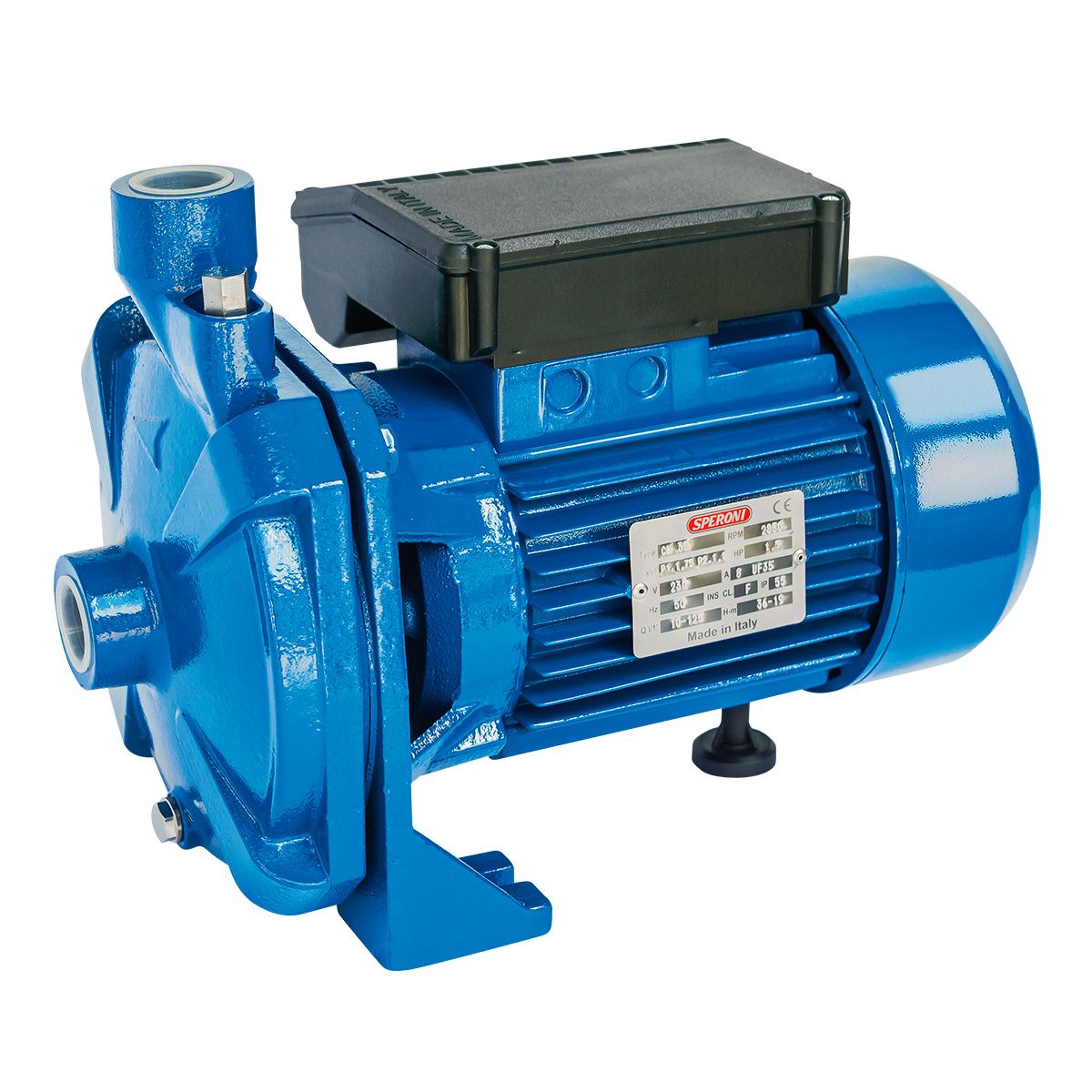

The Speroni CM 22 is a single impeller, centrifugal pump that is great for small and large scale, domestic, agricultural and industrial purposes.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 140°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 23ft.
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 44
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.
Technical Specifications
| Model | CM 22 |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 25.7 |
| Port Size (in.) | 1″ |
| Maximum Flow (GPH) | 1584 GPH |
| Maximum Head(ft) | 66ft |
| HP | 1/2HP |
| Volts | 110V/220V – 60Hz |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 7.2″ x 9.3″ x 9.1″ |
| Product Weight (lbs.) | 20.7lbs |
Dimensions
| Type | Dimensions | Dimensions | Weight | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | H1 | N | DNA | DNM | P | L | H | lb | |
| CM 22 | 3.9″ | 3.5″ | 10.2″ | 6.4″ | 5″ | 0.35″ | 6.5″ | 8″ | 3.27″ | 1.9″ | 1″ | 1″ | 7.2″ | 11.8″ | 9.1″ | 20.7 |
Performance Curve
Performance Table
| Type | Nominal Power | Input Power | Amperage | Capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110V/220V-60Hz | HP | kW | kW | 1 x 110V/220V | GPM | 2.6 | 5.3 | 11.9 | 15.9 | 23.8 | 26.4 | 108.3 |
| CM 22 | 0.5 | 0.37 | 0.65 | 2.8 | lt/1′ | 10 | 20 | 45 | 60 | 90 | 100 | 125 |
| H(ft) | 65.6 | 59 | 55.8 | 52.5 | 39.4 | 32.8 | ||||||
