CBI 4-20 Multi-Stage Horizontal Water Pump — 2400 GPH, 1 HP, 110/220 Volts, 1 1/4in. Suction, 1P

CBI 4-20 Multi-Stage Horizontal Water Pump — 2400 GPH, 1 HP, 110/220 Volts, 1 1/4in. Suction, 1P
SKU: 5313123 Categories: , , , , , , , Tags: , , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5313123 Categories: , , , , , , , Tags: , , ,

CBI 4-20 Multi-Stage Horizontal Water Pump — 2400 GPH, 1 HP, 110/220 Volts, 1 1/4in. Suction, 1P

Print Product Page

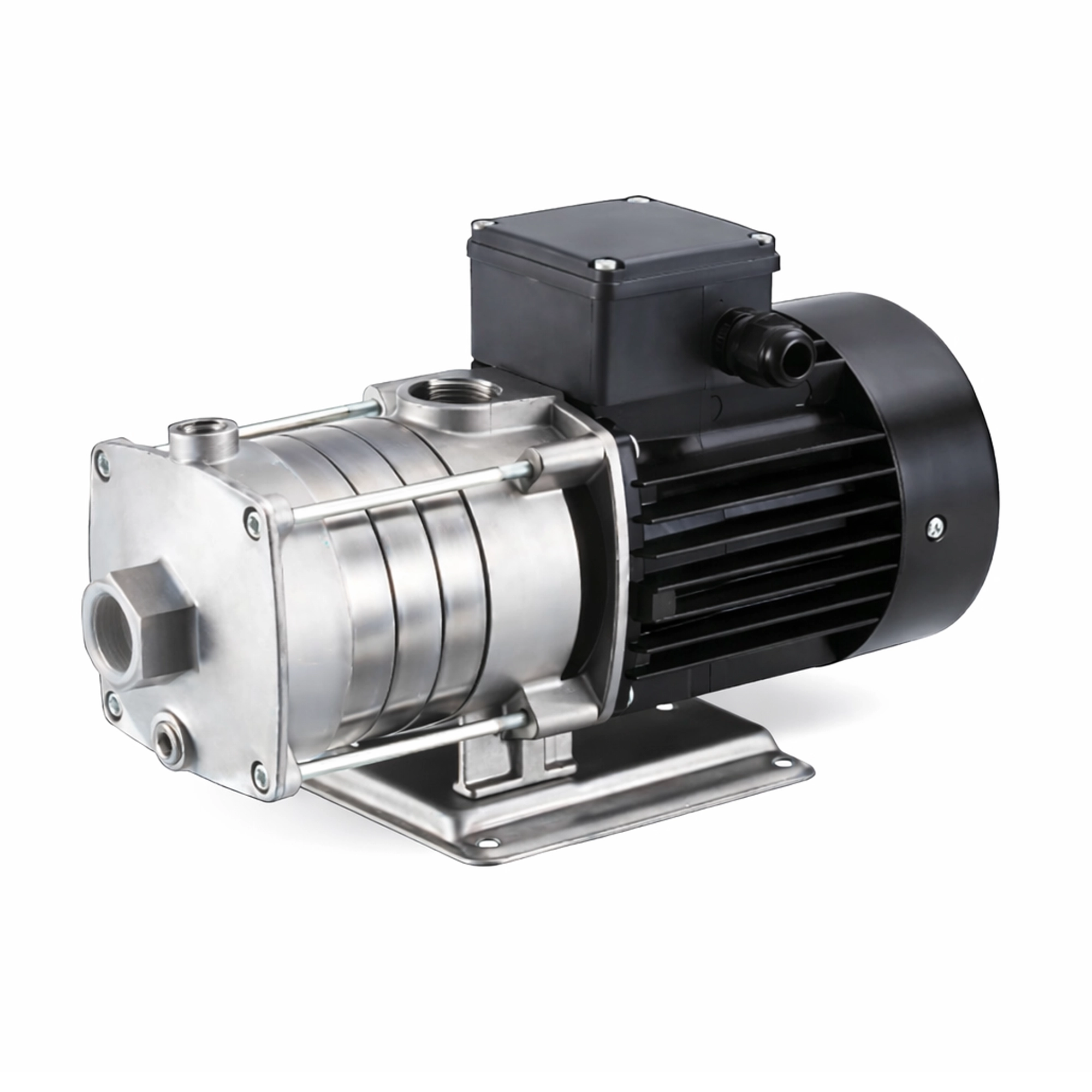

CBI 4-20 Horizontal Multistage Water Pump
Non-self-priming horizontal multistage centrifugal pump designed for pressure boosting, liquid transfer, circulation, and light industrial water supply applications.

Construction & Design
  • Horizontal multistage centrifugal pump with compact base-mounted design
  • Pump and motor coupled on the same shaft
  • Stainless Steel suction and discharge chamber
  • Stainless steel wetted components for corrosion resistance
  • Mechanical seal with through-going pump-motor shaft
  • EPDM O-rings as standard

Applications
  • Domestic water systems
  • Pressure boosting
  • Liquid transfer and circulation in light industry and farming
  • Air-conditioning systems
  • Cooling systems and cooling machines
  • Specialized OEM equipment

Motor
  • Totally enclosed fan-cooled squirrel-cage motor
  • Single-phase motor with built-in thermal overload protection
  • Rated speed: 3450 RPM (60 Hz)
  • Enclosure class: IP54
  • Insulation class: F

Operating Conditions
  • Liquid temperature range: 32°F to 194°F
  • Maximum ambient temperature: 104°F
  • Maximum operating pressure: 142 PSI
  • Maximum inlet pressure limited by maximum operating pressure
  • For thin, clean, slightly-aggressive, non-explosive liquids without solids or fibers

Performance: 2400 GPH, 1 HP, 110/220 Volts
SKU 5313123 Categories , , , , , , , Tags , , ,

UNIT PRICE

$608.99

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

More Details

Model CBI 4-20
Material Stainless Steel
Brand Gol Pumps
Manufacturer’s Warranty 1 year Limited Warranty
Ports (in.) Suction 1 1/4″
Discharge 1″
Flow (GPH) 2400
Horsepower 1
Voltage – Phase 110/220 – 1Ph
Amps 9.5/4.7
Max. Total Head (ft.) 78
Self-Priming No
Dimensions L x W x H (in.) 12.5 x 5.6 x 9
Product Weight (lbs.) 21.6

Performance Curve

Dimensions (in.)

Inlet Outlet A B1 B2 C ØD E F G H I L1 L2 L3 L4
1 1/4 1 4.3 5.6 5 5.1 0.3 3.6 6.1 5.4 9 6.3 12.5 3.3 2.8 4.3
