Description
Features
- Permanent brushless DC motor designed for solar with over 90% efficiency
- Patent design SS 304 helical rotor, working life more than 1500 hours
- SS 304 pump body
- MPPT function
- Soft start function
- Dry running protection
- Adjustable speed
- Self-protecting functions
Performance Table

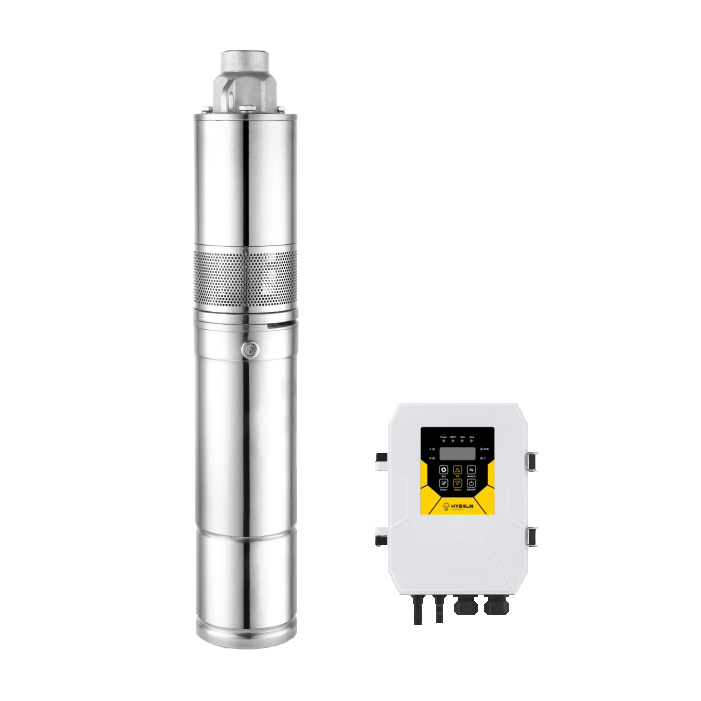

| Model | 3HR1200-180/2.3C |
| Type | Submersible |
| Controller | Included |
| Voltage If Using Battery (V) | 72 |
| Voltage If Using Solar Panel (V) | 72-150 |
| Power (W) | 1200 |
| Max Head (ft) | 590 |
| Max Flow (GPM) | 10 |
| Outlet | 0.75″ |
Performance Curve
How to Wire Solar Panel?
When solar panels are wired in a series, voltage is additive, but the amperage stays the same. But if you parallel wired panels the amperage would be additive, while the voltage remains the same.
