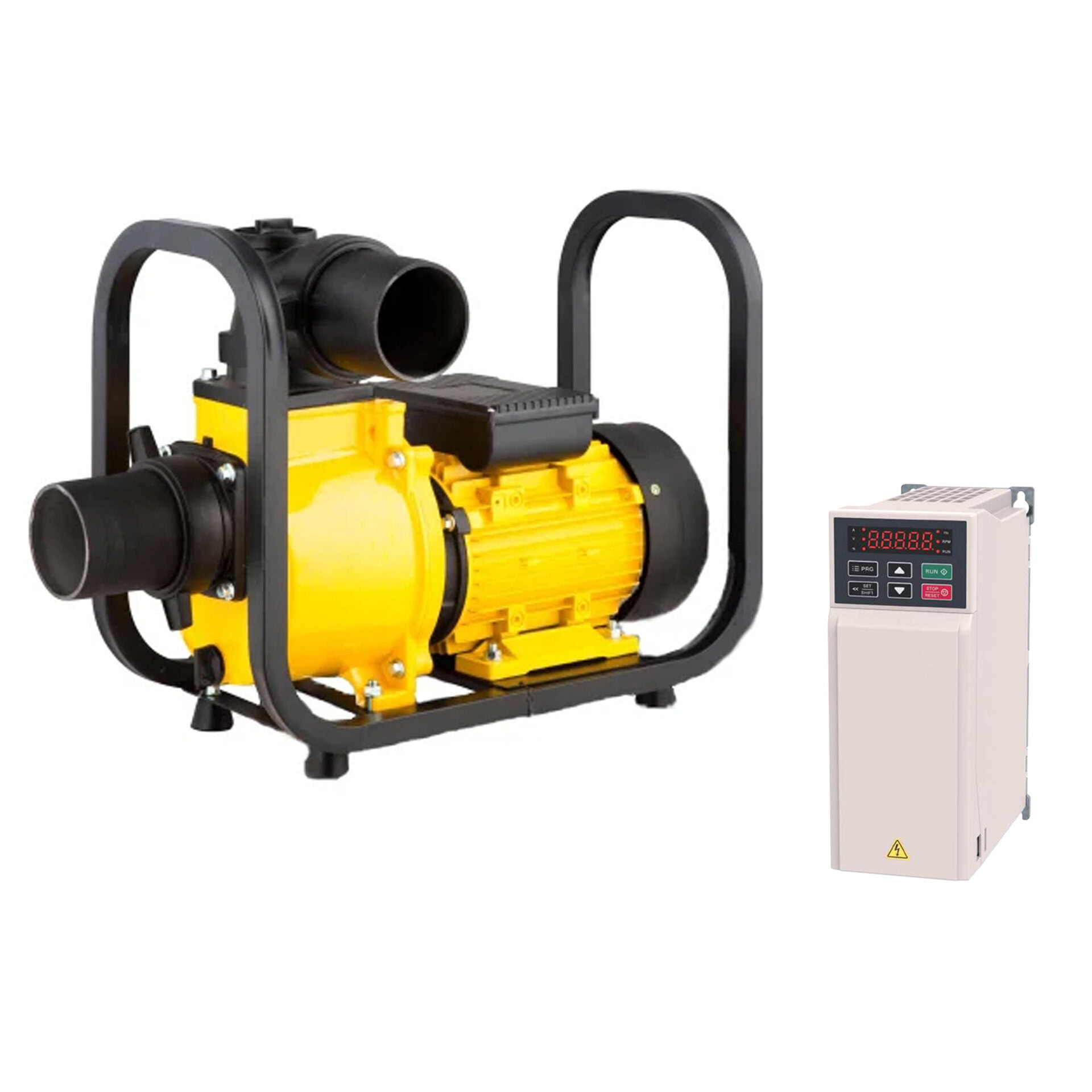

Brushless Solar Centrifugal Pump with Controller – 155V, 1500watts, 4752GPH, Model# PHS1500-22/18

5/5
SKU: 3755129 Categories: , ,
SKU 3755129 Categories , ,
SKU: 3755129 Categories: , ,

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Brushless Solar Centrifugal Pump with Controller – 155V, 1500watts, 4752GPH, Model# PHS1500-22/18

5/5

 Unit Price Only

$910.74

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Cart

Advertisement

Product Data>>>

Applications

Portable Solar AC/DC Hybrid surface pumps are fitted with a permanent magnet, brushless motor, which enables the efficient use of energy from a wide range of supply options. The pump system offers the perfect water supply solution. This project products are mainly used in dry irrigation of agriculture. It can be used for drinking water and living water. The living condition could be much improved.



Benefits

  • Offer great reliability when grid power is irregular or unavailable
  • Lower operating costs to help recoup purchase costs
  • Easily install and relocate to meet seasonal or variable location needs
  • Require minimal service and maintenance
  • Powered by clean, renewable energy
  • High efficiency



Description

Features

  • Permanent magnet, brushless motor, saving energy and offering maximum efficiency
  • NSK bearing with alloy mechanical seal, offering the longer working life
  • MPPT function offers higher utilization rate of solar energy
  • Water proof and leak proof based on double water seal
  • Controller maximum’s operating temperature: 60℃
  • Soft start
  • Adjustable speed
  • Dry running protection
  • Error wiring protection
  • Over/under-voltage protection
  • Overload protection
  • Over-current protection
  • Phase-loss protection
  • High working temperature protection

Performance Table

Model PHS1500-22/18
Type Centrifugal
Controller Included
AC Voltage (V) 110
Minimum DC Voltage (V) 155
Best Performance DC Voltage (V) 175-380
Power (W) 1500
Max Head (ft) 72
Max Flow (GPM) 79.2
Inlet/Outlet 2″ x 2″

Performance Curve

How to Wire Solar Panel?

When solar panels are wired in a series, voltage is additive, but the amperage stays the same. But if you parallel wired panels the amperage would be additive, while the voltage remains the same.

Additional information

Category Dc pumps

Surface/Submersible

Dc voltage
