Application:

Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solids

OPERATING CONDITIONS:

• – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
• – Temperature max. liquid: 140°F (for other uses)
• – Ambient temperature up to 104°F
• – Total suction lift up to 23 ft.

MOTOR:

• – Single-phase 110V – 60Hz
• – Two-Pole induction motor (n = 3450 min-1)
• – Insulation Class F
• – Protection IP 44

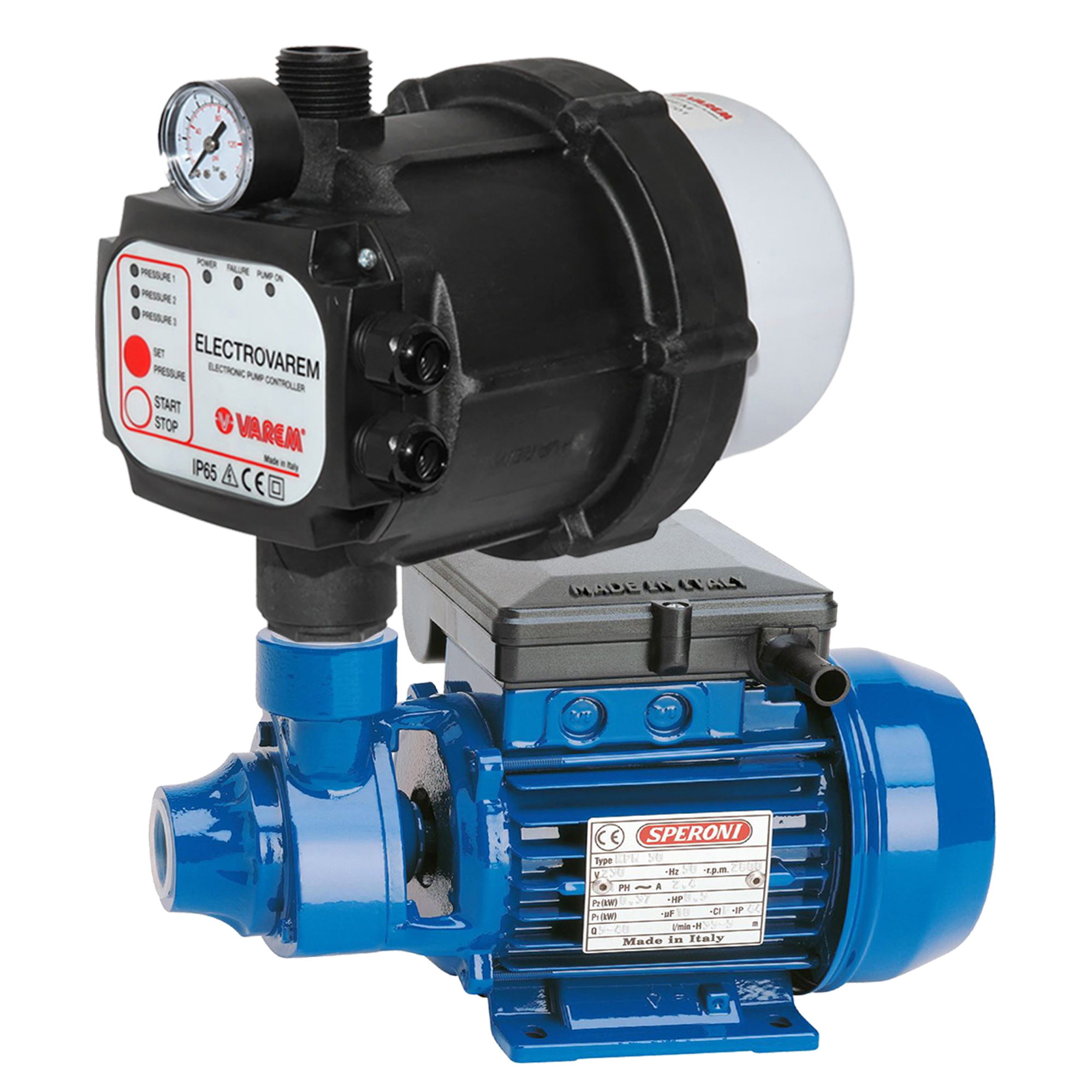

Important Note about the motor: The pump is dual-voltage (110/220V) and is supplied from the manufacturer factory-set at 220V. For this installation, the customer must reconfigure the motor connection to 110V before connecting it to the Electrovarem system. A wiring diagram showing the procedure for changing the voltage to 110V is included with the pump.

MATERIALS:

– Pump body: Cast Iron
– Motor Support: Cast Iron
– Impeller: Brass
– Shaft with rotor:  Stainless Steel AISI 304
– Mechanical seal (50-80): Ceramic/Graphite/NBR
