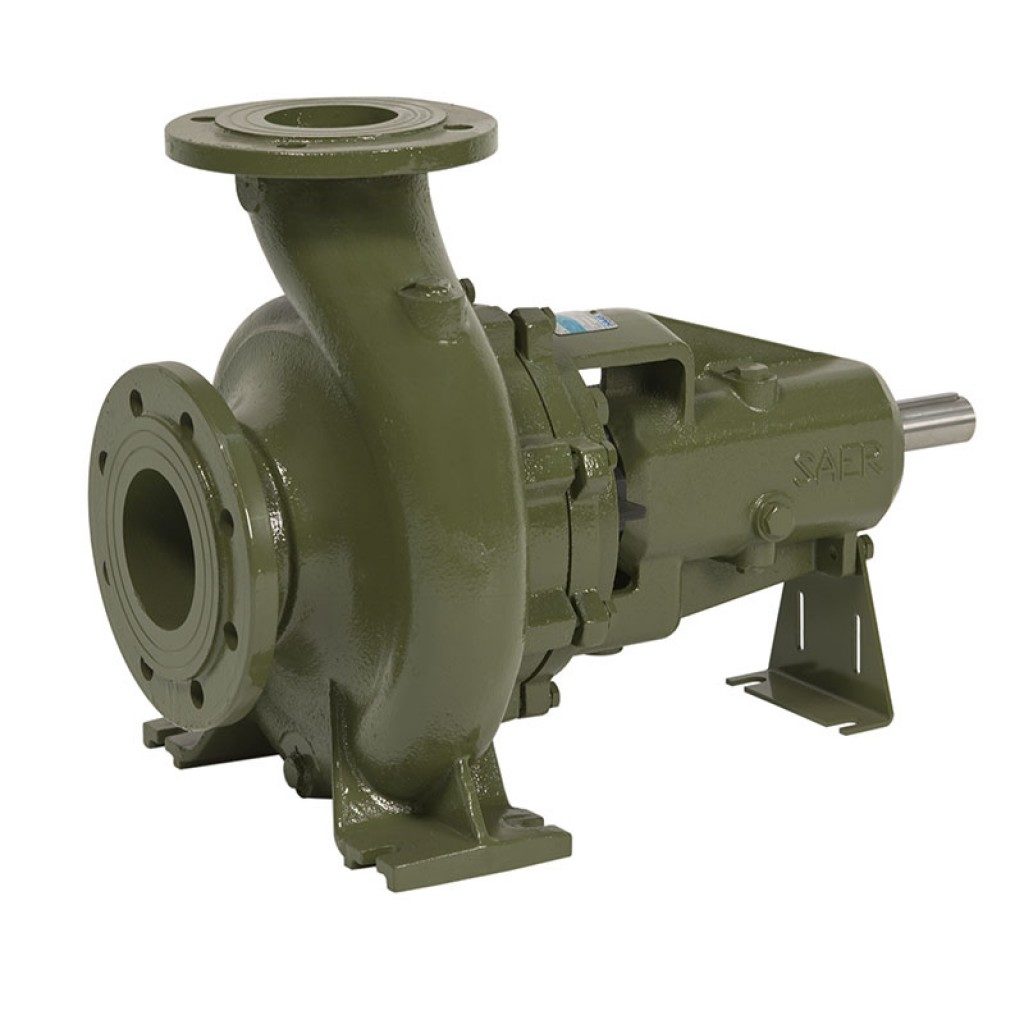

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A (PUMP ONLY)

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A (PUMP ONLY)

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A (PUMP ONLY)

MADE IN ITALY

USES
Recircling plants, heating, air conditioning, heat recovery, plants of water supply procurement, pressurising units and fire-fighting systems.

CONSTRUCTIVE CHARACTERISTICS
NCB: bareshaft end-suction centrifugal pumps, 6NCBZ: bareshaft end-suction centrifugal pumps with electric motor,
on a base.
The motor unit and the rotating part of the pump can be taken away without removing the pump body from the system piping.
Hydraulics: pump body with dimension and performances according to EN 733 rules (up to 150-400), closed impeller dynamically balanced and with balance holes for the balancing of the axial thrust. Shaft completely in stainless steel, greased ball bearings, flanges (UNI EN 1092-2): up to DN 150: PN16, from DN 200: PN10.

Applications:

icon_accqueicon_agricolturaicon_civileicon_indicon_minerarioiconoil
Materials: cast iron  (Stainless Steel and Bronze by request only)
INSTALLATION AND OPERATION CHARACTERISTICS:
The NCB pumps can be positioned with horizontal, sloping or vertical axis always with the motor upwards .The operating characteristics of the catalogue and label are to be understood for continuous service and with clear water (specific weight = 1000 kg/m3) with a max manometric suction height of approximately 1,5 m. For higher manometric heights and up to a max of approximately 6 m, the characteristics decrease in the various delivery data.
.
------

$594.14

Add to Cart

Cart

Search Products

Categories

Category

Facebook

MADE IN ITALY

USES
Recircling plants, heating, air conditioning, heat recovery, plants of water supply procurement, pressurising units and fire-fighting systems.

CONSTRUCTIVE CHARACTERISTICS
NCB: bareshaft end-suction centrifugal pumps, 6NCBZ: bareshaft end-suction centrifugal pumps with electric motor,
on a base.
The motor unit and the rotating part of the pump can be taken away without removing the pump body from the system piping.
Hydraulics: pump body with dimension and performances according to EN 733 rules (up to 150-400), closed impeller dynamically balanced and with balance holes for the balancing of the axial thrust. Shaft completely in stainless steel, greased ball bearings, flanges (UNI EN 1092-2): up to DN 150: PN16, from DN 200: PN10.

Applications:

icon_accqueicon_agricolturaicon_civileicon_indicon_minerarioiconoil
Materials: cast iron  (Stainless Steel and Bronze by request only)

More Details:

Model
NCB 50-125A
BrandSaer-USA
Manufacturer’s Warranty1 year Limited Warranty
Ship Weight72 lbs
Port Size (in.)2.5”  –  2″
MAX Flow (GPH) – (3600 RPM)

MAX Flow (GPH) – (1800 RPM)

21120

11880

HP (3600 RPM)

HP (1800 RPM)

10

1.5

Max. Total Head (ft.) – (3600 RPM)

Max. Total Head (ft.) – (1800 RPM)

121

33

Max. Suction Lift (ft.)17
Max. PSI- (3600 RPM)

Max. PSI- (1800 RPM)

54

14

Suction Port (in.)2.5″
Discharge Port (in.)2″
Self-PrimingNO
Dimensions L x W x H (in.)18 x 9 x 11
Product Weight (lbs.)68
INSTALLATION AND OPERATION CHARACTERISTICS:
The NCB pumps can be positioned with horizontal, sloping or vertical axis always with the motor upwards .The operating characteristics of the catalogue and label are to be understood for continuous service and with clear water (specific weight = 1000 kg/m3) with a max manometric suction height of approximately 1,5 m. For higher manometric heights and up to a max of approximately 6 m, the characteristics decrease in the various delivery data.

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A (PUMP ONLY)

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A COMPONENTS





Hydrailic Features, Weight & Dimensions (1800 RPM)

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A - 1800rpm DIMENSIONS



Hydrailic Features, Weight & Dimensions (3600 RPM)

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB 50-125A - 3600rpm DIMENSIONS

BARESHAFT END-SUCTION SINGLE STAGE CENTRIFUGAL PUMPS - NCB
