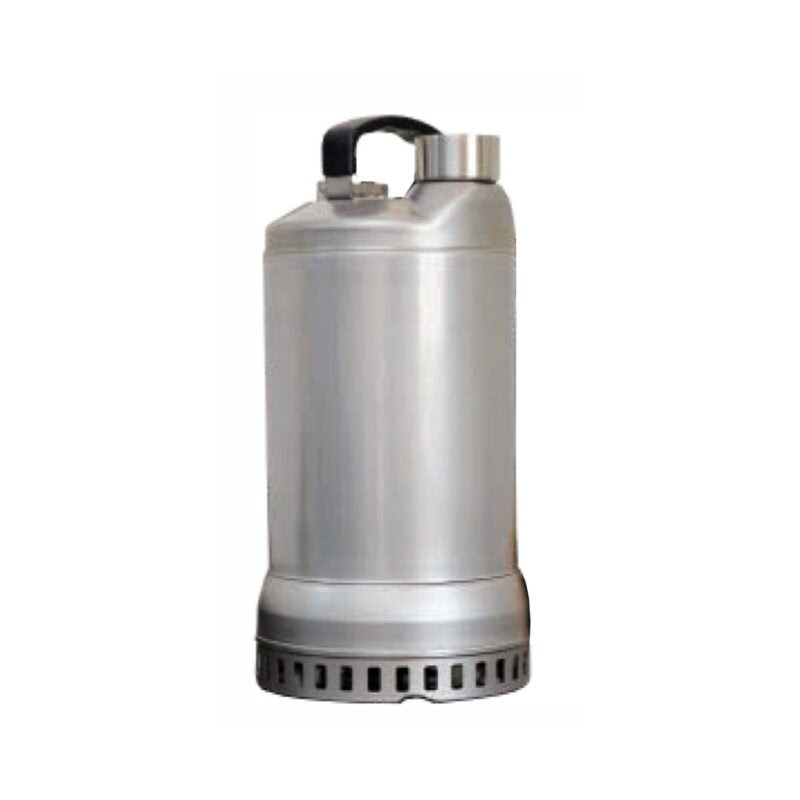

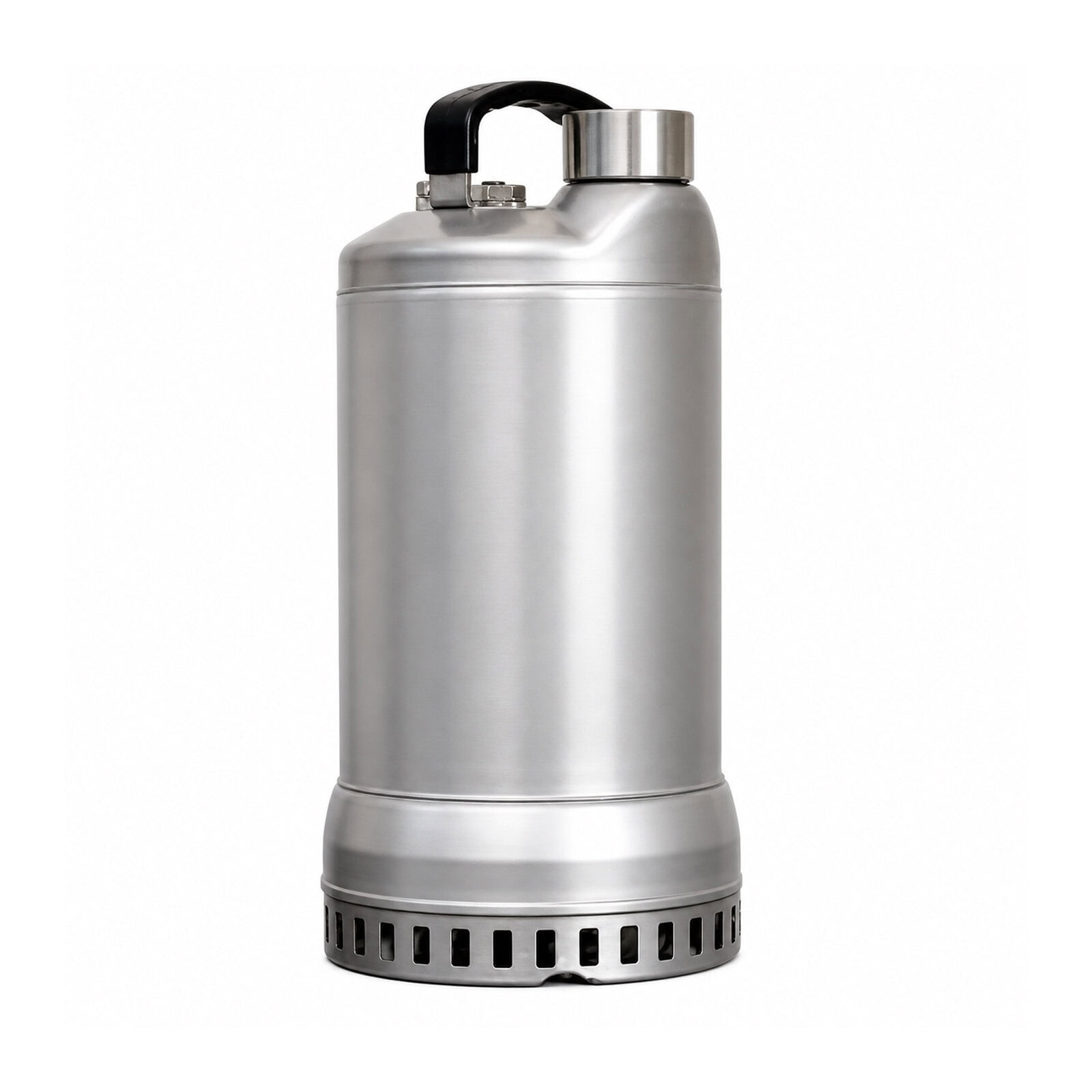

Automatic Drainage Submersible Pump XD-20T40 KW1- 6600 GPH, 2HP, 1.5″, 480V, 3P, SS316

5/5
5/5

Automatic Drainage Submersible Pump XD-20T40 KW1- 6600 GPH, 2HP, 1.5″, 480V, 3P, SS316

5/5

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


 Unit Price Only

$994.99

Free Shipping

Out of stock

ETA: 3 to 5 Business days

STAIRS XD series all stainless steel submersible drainage & sump pumps are designed for sump, drainage, and grey water & pure water transferring applications. These pumps are equipped with a semi-open stainless steel impeller capable of passing 8mm solids. The combination of stainless steel shaft and oil filled lip seal with silicon carbide mechanical seal result in an extremely long operating life and make these pumps suitable for use by home owner or even contractors.

Application

  • Basement water removal
  • Waste water drainage
  • Water transfer
  • Sump/effluent handling
  • Dewatering
  • Fish pond & fountain circulation
  • Factory waste water handling

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)

Add to Cart

Description

Features

  • Stainless steel motor housing and pump casing for tougher application.
  • All models are hermetically sealed to be watertight, dust-tight, and completely submersible.
  • Double seal designed (mechanical seal + oil seal) to improve bearing lubrication and prevent leaking problem.
  • High efficiency dry type motor for environmental friendly.
  • Vortex impeller designed to prevent clogging problem.
  • Robust construction for better reliability.
  • Hand-carry designed for easy transport.
  • Auto reset thermal overload protection for longer motor life.

Technical Data

Brand Gol Pump
Model XD-20T40
Material Stainless Steel 316
Discharge Inch 1.5
Voltage 480V – 3 Phase
HP 2
Max. Head Ft. 66
Max. Flow GPM 110
Solid Passage Inch 0.3
Cable Length Ft. 32.8

Parts and Materials

Performance Curve

Dimensions and Weights

Model Dimension in
H H2 lbs
XD-20 16 15.4 37

Additional information

Weight 28 lbs
Dimensions 18 × 12 × 12 in
