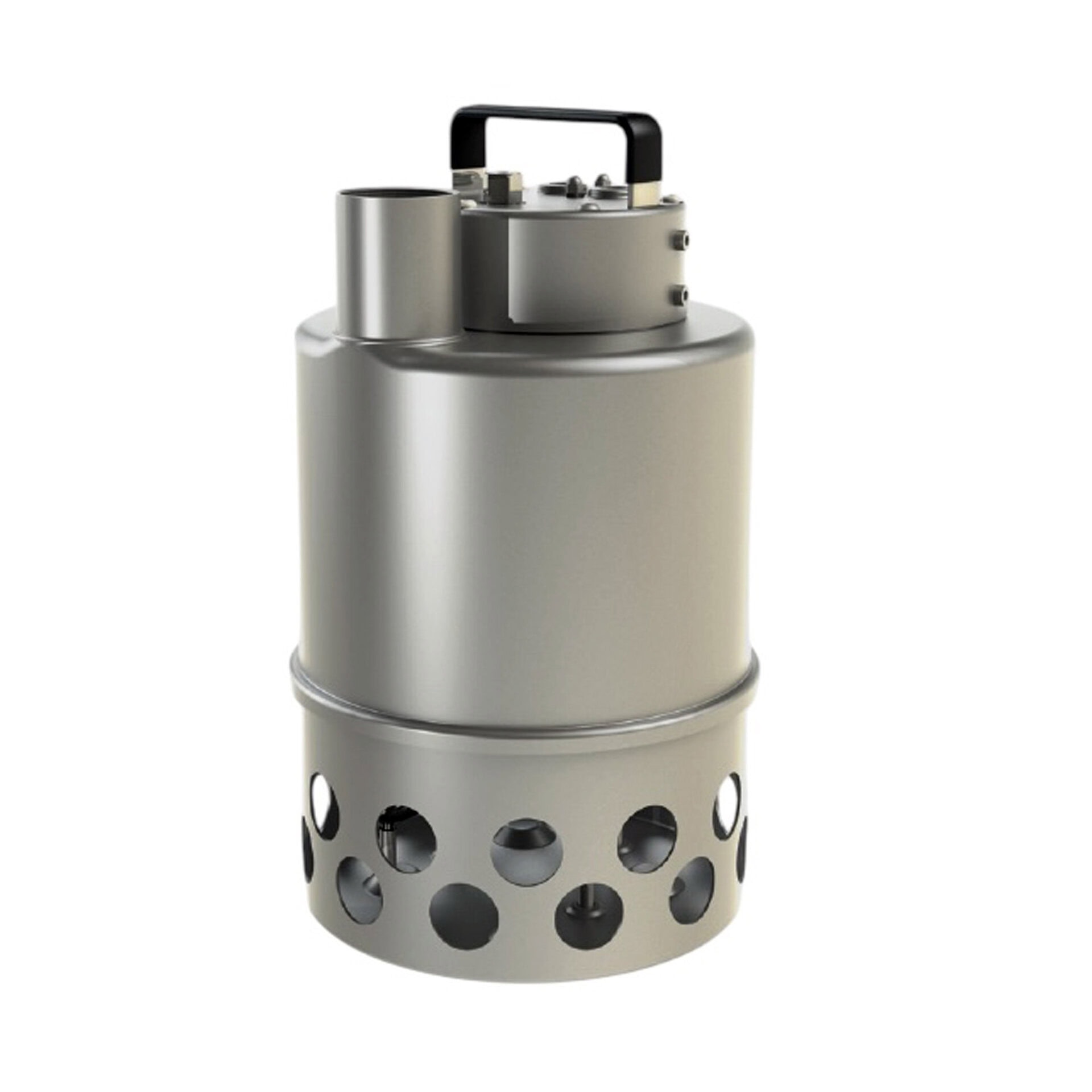

JMS Drainage Submersible Pump JEGAL-VOX 200 – 230V, 1PH, 6900 GPH, 3.75HP, 2″

JMS Drainage Submersible Pump JEGAL-VOX 200 - 230V, 1PH, 6900 GPH, 3.75HP, 2"
SKU: 1137102 Categories: , , , , , , Tags: , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 1137102 Categories: , , , , , , Tags: , Brand:

JMS Drainage Submersible Pump JEGAL-VOX 200 – 230V, 1PH, 6900 GPH, 3.75HP, 2″

Print Product Page

Submersible electric pumps for white and dirty water drainage.

Applications

  • Cellar, garage and basement pump out.
  • Particularly suited to construction work sites.
  • Swimming pools, all sorts of vats, tanks and reservoirs pump out.
  • Rain, seepage, sump pit and catch tank water pump out.
  • Garden and vegetable-garden irrigation.

SKU 1137102 Categories , , , , , , Tags , Brand:

UNIT PRICE

$1,667.25

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

Design Engineering

  • Double Chamber Electric Pump (Motor, Mechanical Seal).
  • Oil Bath Motor (Biodegradable and Dielectric) for Colling and Bearing Lubrication.
  • Sealing Ring – Engine Face.
  • Oil Bath Mechanical Seal.
  • Permissible Draught of Water: 16.4 ft.
  • Protection Class IP 68.
  • Class “F” Insulation.
  • Max. Pumped Liquid Temperature: 95°F.
  • By Pass Section: 1.2″.
  • Single Phase: 115V/60Hz with built in thermal protection and permanent capacitor. With UL plug.
  • Cable Length: 32 ft. H07RN-F.

Performance Curve

Model Voltage HP P1 Max. Ampere Capacitor Capacity
60Hz Kw A μF VC Gal/Min 0 13.2 26.4 39.6 52.8 66 79.3 92.5 105.7 114.5
JEGAL VOX 200 1 x 230V 3.75 2.8 9 30 450 Ft. 50.9 49 44.3 41 36.1 27.9 24.6 18 11.5 6.6

Dimensions

Dimensions (inch) Cable Length Weight
A B C D E F G Ft. Lb
2 NPT 8 2.9 15.1 15.5 4.2 8 32 46.2

Parts List and Materials

Additional information

Weight 47 lbs
Dimensions 10.5 × 12.7 × 19 in
