Description

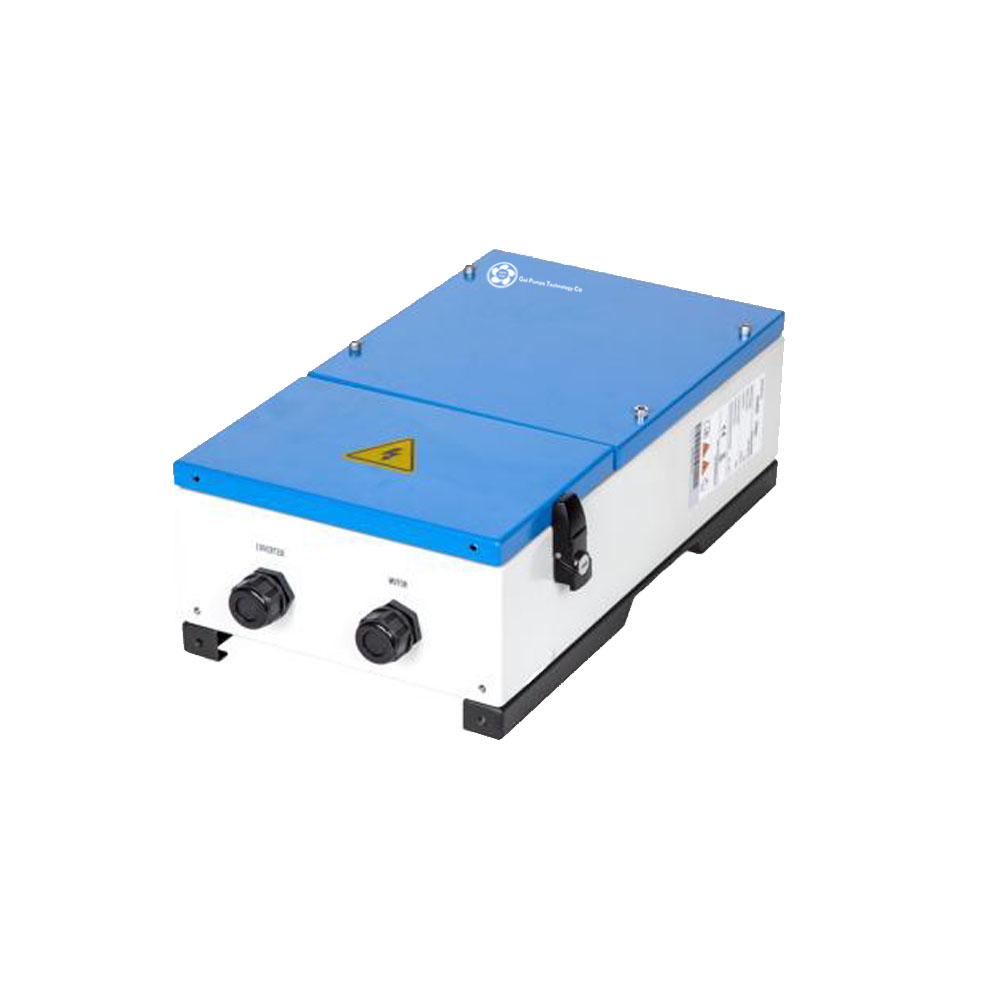

Outlet Filter

The outlet filter connected between solar pump inverter and pump, It is used once the cable between inverter and pump is too long.

Function

• Effective control of motor reflected voltage, protect motor insultation, prolong the lifespan of pump.
• Effective suppress the surge voltage on electric cable, protect inverter power module.
• Filter out PWM control high frequency harmonic, pump running more stable, improve system efficiency.

Dimension

How to Wire Solar Panel?

When solar panels are wired in a series, voltage is additive, but the amperage stays the same. But if you parallel wired panels the amperage would be additive, while the voltage remains the same.
