Description

Technical Data

Model	Pump	GST 35-34
Model	Motor	4CS6396
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	5.5
P2	HP	7.5
Service Factor		1.15
Material	Pump	Noryl
Material	Motor	Noryl
Voltage – Phase		460V – Three Phase
Wire		–
In	A	10.9
Imax	A	12.1
Istart	A	78.3
PF (%)	Allowable Load	0.79
PF (%)	Overload Factor	0.83
Efficiency (%)	Allowable Load	79.1
Efficiency (%)	Overload Factor	78.7
R.P.M		3450
Thrust	N	6000
Capacitor	UF	No
Cable	AWG	14
Cable	Length (ft.)	8.2
Production Country		Taiwan

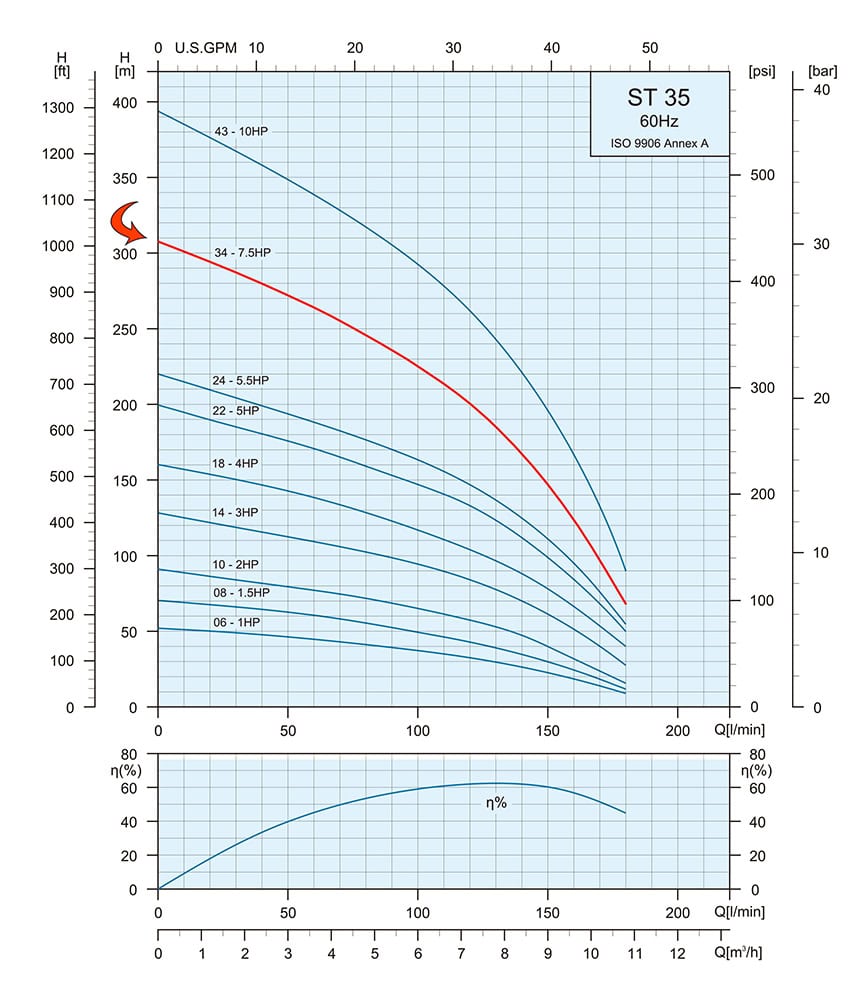

Performance Curves

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	15.9	18.5	21.2	23.8	26.4	31.7	37	42.3	47.6
GST 35-34	5.5	7.5	Head (ft.)	1011	862.9	836.6	807.1	774.3	836.6	656.2	547.9	400.3	226.4

Dimensions and Weights

Outlet	Motor Dia.	Dimensions (inch)				Weight (lb)
		A	B	C	D	Pump	Motor	Pump + Motor
NPT 2″	4″	52.2″	2″	3.9″	79.9″	27.7	64	91.7

Part List and Materials

No.	Part Name	Materials
1	Discharge Head	AISI 304
4	Check Valve Cone	AISI 304
6	Check Valve Retaining Ring	AISI 304
8	Bearing Spider	Glass Filled Polycarbonate
12	Diffuser	Glass Filled Polycarbonate
13	Bowl	AISI 304
18	Impeller	Noryl
34	Strainer	AISI 304
40	Pump Shaft / Coupling	AISI 304
42	Shaft Sleeve	AISI 304 or Noryl
48	Pump Casing	AISI 304
52	Cable Guard	AISI 304
86	O-Ring	NBR
92	Bearing	Polyacetal

Additional information

Brands	Gol Pump
AC voltage	440V – 480V
Horse power Ac	7.5 hp
Phase	Three Phase
Submersible Pump Size	4"
Material Submersible pump	Noryl
Pump Outlet	2"

7.5HP SUBMERSIBLE 460V - 3P MOTOR 47GPM DEEP WELL WATER PUMP - 4" - 1010ft Motor with Splice kit

SKU Number 7060257S

Price $2,350.75

Visit our website or contact our sales department for current availability, shipping options and technical assistance.

Product Description

4" Deep Well Submersible Water Pump – 7.5 HP, 460V, 3-Phase High-capacity 4 inch deep well submersible pump designed for groundwater pumping, irrigation, pressure boosting, and water supply applications. Built for 4" or larger wells and supplied with wire splice kit. Pump Specifications • Maximum Head: 1010 ft • Maximum Flow: 48GPM • Discharge Size: 2" • Power: 7.5 HP • Voltage: 460V, 3-Phase • Pump Material: Noryl • Pump Model: GST 35-34 Product Advantages • Hermetically sealed stator with anti-track resin-filled construction • High-efficiency design helps reduce operating cost • Copper winding motor construction • Pressure equalizing diaphragm • Removable lead connector for easier maintenance • Standard NEMA mounting…

For complete product specifications, applications and construction details, please visit the product page shown below.

Product page: https://www.pumpsupermarket.com/product/7-5hp-submersible-460v-3p-motor-47gpm-deep-well-water-pump-4-1010ft-motor-with-splice-kit/
