3″ Thin Submersible Pump 29 GPM – 3 Wire – 118 ft – 110/220V – 0.5 HP Motor with Splice kit

Submersible Pump
Free Shipping
Submersible Pumps Control Box
3" Thin Submersible Pump 29 GPM - 3 Wire - 118 ft - 110/220V - 0.5 HP Motor with Splice kit - Image 3
Thin Submersible Pumps Materials
3" Thin Submersible Pump 29 GPM - 3 Wire - 118 ft - 110/220V - 0.5 HP Motor with Splice kit - Image 5
SKU: Please choose an option Categories: , Tags: , , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: N/A Categories: , Tags: , , , , Brand:

3″ Thin Submersible Pump 29 GPM – 3 Wire – 118 ft – 110/220V – 0.5 HP Motor with Splice kit

3” Stainless Steel Submersible Pump
Compact deep well pump designed for domestic, agricultural, and light industrial water supply applications.

Pump Spec
  • Max Head: 118 ft
  • Max Flow: 29 GPM
  • Discharge: 1 1/4"
  • Volts: 110V / 220V • 60Hz
  • HP: 0.5
  • Pump Material: Stainless Steel 304
  • Pump Diameter: 3"
  • Pump Model: 3SDM4/6
  • Warranty: 1 Year Manufacturer
Includes wire splice kit. Performance may vary based on installation depth and operating conditions.

Applications
Wells & Reservoir Supply
Domestic Water Use
Civil & Industrial Applications
Garden & Irrigation

Operating Conditions
  • Maximum fluid temperature: +95°F
  • Maximum sand content: 0.25%
  • Minimum well diameter: 3.5"

Motor & Pump
  • Rewindable motor
  • Single-phase 110V/60Hz or 220V/60Hz
  • Equipped with start control box
  • Hydraulics designed according to ISO 9906 curve tolerance

Standards & Certifications
Manufactured in accordance with ISO 9906 performance standards.

SKU N/A Categories , Tags , , , , Brand:

UNIT PRICE

$290.99

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Applications:

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions:

  • Maximum fluid temperature up to +35
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump:

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906

PUMP SPEC:

  • Max Head(ft): 118
  • Max Flow(Gpm): 29
  • Discharge: 1 ¼”
  • HP: 0.5
  • Pump Material: Stainless Steel 304
  • Pump Model: 3SDM4/6
  • Pump Diameter: 3″
  • Warranty: 1 Year Manufacture

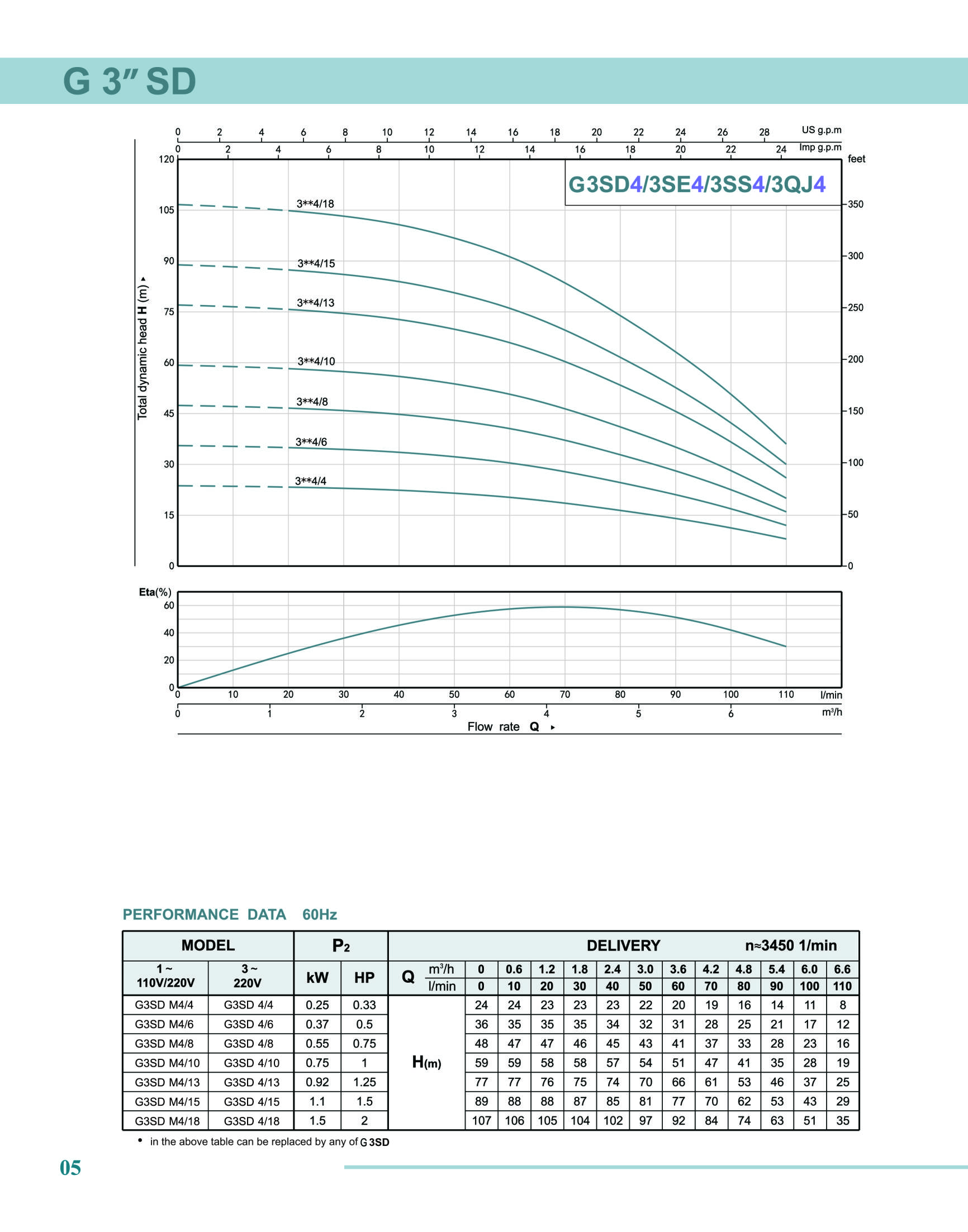

3″ GSD Total Dynamic Head

Performance Data



MODEL

P2

DELIVERY      N = 3450 1/min

1~

220V

 KW HP Q m3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 6.6
l/min 0 10 20 30 40 50 60 70 80 90 100 110

3SD M4/6

 0.37 0.5

H (m)

 36 35 35 35 34 32 31 28 25 21 17 12

Dimension and Weight

Model

 DN Dimension(inch) Weight(lbs)
1~

110V/220V

 P M(s) M(t) T(s) T(t) P M(s) M(t) T(s)

T(t)
3SD M4/6

1″/1* 0.25″/1* 0.5″

 15 13.3 12 28.3 27 3.5 12.3 10.6 16 14.1





Components

Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.







Additional information

Weight 16 lbs
Dimensions 2.95 × 2.95 × 29 in
