Description

Technical Data

Model	Pump	GSP 70-3
Model	Motor	4CN3546D
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	1.5
P2	HP	2
Service Factor		1.25
Material	Pump	Stainless Steel 316
Material	Motor	Stainless Steel 316
Voltage – Phase		230V – Single Phase
Wire		3
In	A	11.4
Imax	A	13.5
Istart	A	52.6
PF (%)	Allowable Load	0.86
PF (%)	Overload Factor	0.89
Efficiency (%)	Allowable Load	66.2
Efficiency (%)	Overload Factor	66.8
R.P.M		3450
Thrust	N	3000
Capacitor	UF	–
Cable	AWG	14
Cable	Length (ft.)	3.9
Production Country		Taiwan

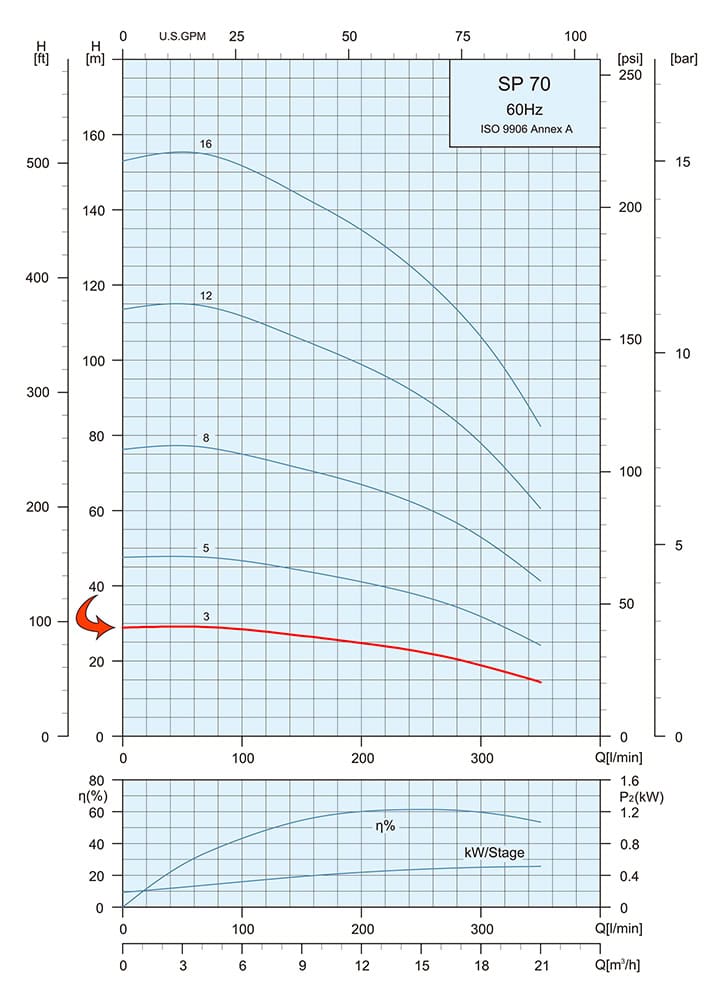

Performance Curves

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	37	42.3	47.6	52.8	66	79.3	92.5
GSP 70-3	1.5	2	Head (ft.)	95.1	91.9	88.6	85.3	82	72.2	62.3	45.9

Dimensions and Weights

Outlet	Motor Dia.	Dimensions (inch)			Weight (lb)
		A	B	C	Pump	Motor	Pump + Motor
NPT 2″	4″	14.8″	30.1″	3.9″	8.1	31.9	40

Part List and Materials

No.	Part Name	Materials
01	Discharge	AISI 316
12	Diffuser	AISI 316
18	Impeller	AISI 316
21	Split Cone	AISI 316
22	Split Cone Nut	AISI 316
24	Stop Ring	Carbon + Graphite + PTFE
32	Neck Ring Retainer	AISI 316
34	Strainer	AISI 316
36	Suction Interconnector	AISI 316
37	Coupling	AISI 316
40	Pump Shaft	AISI 316
47	Strap	AISI 316
52	Cable Guard	AISI 316
87	Neck Ring	AISI 316 + HNBR
88	Nut	AISI 316
89	Bearing	HNBR

Additional information

Brands	Gol Pump
AC voltage	208V – 230V
Horse power Ac	2 hp
Phase	Single Phase
Submersible Pump Size	4"
Material Submersible pump	Stainless Steel 316
Pump Outlet	2"

2 HP Submersible 3 Wire Motor 5520 GPH Deep Well Water Pump - 230V - 1PH - SS316 - 4" - 95ft Motor with Splice kit

SKU Number 7060230S

Price $1,987.30

Visit our website or contact our sales department for current availability, shipping options and technical assistance.

Product Description

4" Deep Well Submersible Water Pump – 2 HP, 230V, 1-Phase High-capacity 4 inch deep well submersible pump designed for groundwater pumping, irrigation, pressure boosting, and water supply applications. Built for 4" or larger wells and supplied with wire splice kit. Pump Specifications • Maximum Head: 95 ft • Maximum Flow: 92 GPM • Discharge Size: 2” NPT • Power: 2 HP • Voltage: 230V, 1-Phase • Pump Material: Stainless Steel 316 • Pump Model: GSP 70-3 Product Advantages • Hermetically sealed stator with anti-track resin-filled construction • High-efficiency design helps reduce operating cost • Copper winding motor construction • Pressure equalizing diaphragm • Removable lead connector for easier maintenance…

For complete product specifications, applications and construction details, please visit the product page shown below.

Product page: https://www.pumpsupermarket.com/product/2-hp-submersible-3-wire-motor-5520-gph-deep-well-water-pump-230v-1ph-ss316-4-95ft-motor-with-splice-kit/
