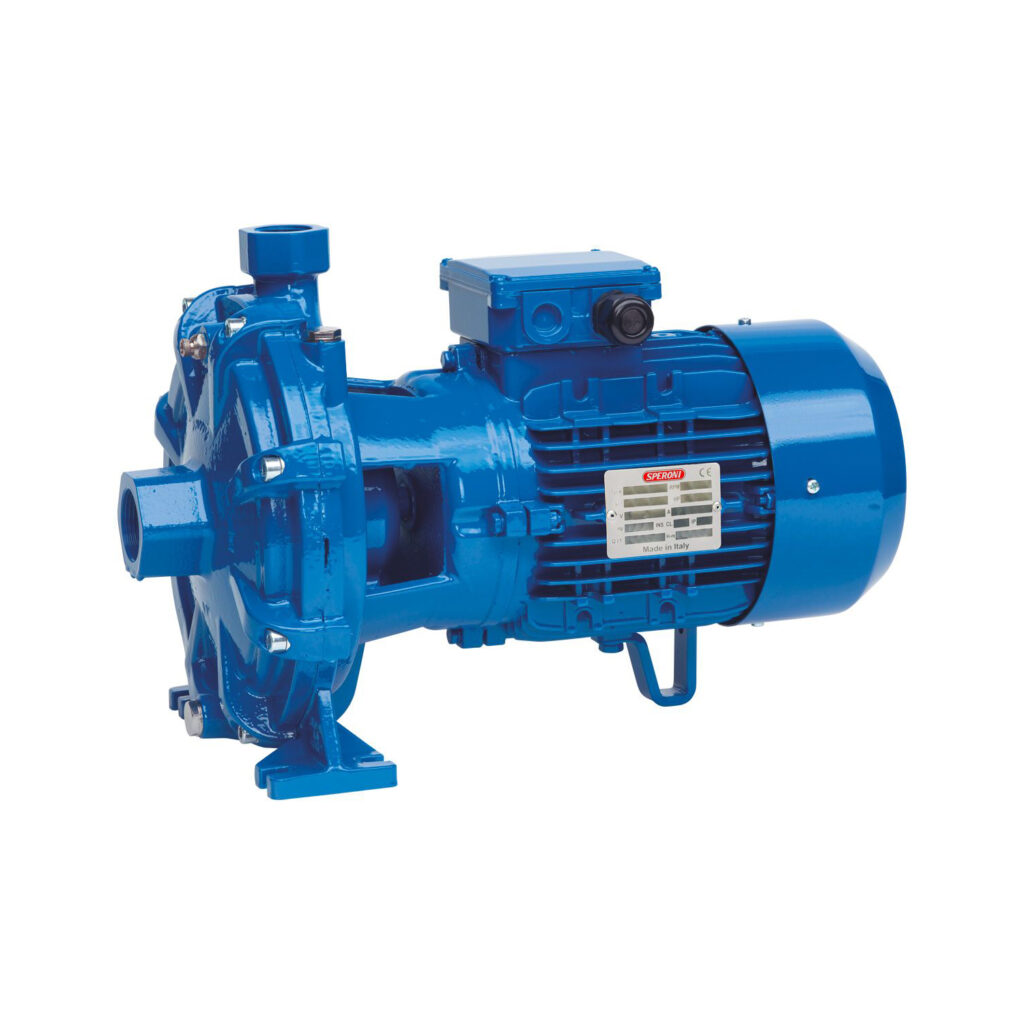

1.5 HP Twin Impeller Centrifugal Pump 2 CM 25/160C – 2536 GPH – 220V – 1PH

$674.00

Speroni logo

  • Can pump clear water, and non aggressive liquids
  • Great for water supply, spraying, flow irrigation and high pressure systems
  • Cast Iron Impeller

Estimated Delivery Time: 3 – 5 Business Days

Description

The Speroni 2 CM 25/160C is a twin impeller centrifugal pump that can be used for lifting clear water and other non-aggressive liquids.

Made in Italy.

Features

Operating Conditions

  • Liquid temperature up to 94°F (for home use according to EN 60335-2-41)
  • Temperature max. liquid: 194°F (for other uses)
  • Ambient temperature up to 104°F
  • Total suction lift up to 23ft.

Motor

  • Two-Pole induction motor (n = 3450 min-1)
  • Insulation Class F
  • Protection IP 55

Materials

  • Pump body: Cast Iron
  • Motor Support: Cast Iron
  • Impeller: Brass
  • Shaft with rotor: Stainless Steel AISI 304
  • Mechanical seal: Ceramic/Graphite/NBR

Applications

Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model. They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.

Technical Specifications

Model 2 CM 25/160C
Brand Speroni
Manufacturer’s Warranty 1 year Limited Warranty
Ship Weight 59.2lb
Port Size (in.) 1.25″ & 1″
Maximum Flow (GPH) 2536 GPH
Maximum Head (ft) 167ft
HP 1.5HP
Volts 220V – 60Hz
Suction Port (in.) 1.25″
Discharge Port (in.) 1″
Self-Priming No
Dimensions L x W x H (in.) 16.3″ x 9.5″ x 12.4″
Product Weight (lbs.) 54.2lbs

Dimensions

Twin Impeller Centrifugal Pump - Dimensions

Type Dimensions Dimensions Weight
A B C D E F G H H1 N DNA DNM P L H lb
2 CM 25/160C 3.7″ 2″ 15.7″ 8.2″ 6.6″ 0.4″ 8.7″ 10.4″ 4.7″ 3.3″ 1.25″ 1″ 9.5″ 16.3″ 12.4″ 54.2

Performance Curve

Twin Impeller Centrifugal Pump - Performance Curve

Performance Table

Type Nominal Power Input Power Amperage Capacity
220V – 60Hz HP KW kW 1 x 220v GPM 26.4 33 39.6 52.8 66 79.3 92.5 105.7 118.9
2 CM 25/160C 1.5 1.1 2.2 10A lt/1′ 20 40 60 80 100 120 140 160 180
Head (ft) 167.3′ 160.8′ 154.2′ 144.4′ 131.2′ 114.8′ 88.6′ 75.5′



Additional information

Discharge Port

Suction Port

Horsepower

Material

Self Priming

Voltage

Phase
