2.5″ Thin Submersible Pump 13 GPM – 3 Wire – 105 ft – 110/220V – 0.25HP Motor with Splice kit

2.5” Stainless Steel Submersible Pump
Compact deep well pump designed for domestic, agricultural, and light industrial water supply applications.

Pump Spec
  • Max Head: 105 ft
  • Max Flow: 13 GPM
  • Discharge: 1″
  • Volts: 110V / 220V • 60Hz
  • HP: 0.25
  • Pump Material: Stainless Steel 304
  • Pump Diameter: 2.5″
  • Pump Model: 2.5SDM2/8
  • Warranty: 1 Year Manufacturer
Includes wire splice kit. Performance may vary based on installation depth and operating conditions.

Applications
Wells & Reservoir Supply
Domestic Water Use
Civil & Industrial Applications
Garden & Irrigation

Operating Conditions
  • Maximum fluid temperature: +95°F
  • Maximum sand content: 0.25%
  • Minimum well diameter: 2.8″

Motor & Pump
  • Rewindable motor
  • Single-phase 110V/60Hz or 220V/60Hz
  • Equipped with start control box
  • Hydraulics designed according to ISO 9906 curve tolerance

Standards & Certifications
Manufactured in accordance with ISO 9906 performance standards.
SKU N/A Categories , Tags , , Brand:

UNIT PRICE

$351.99

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

See More Submersible Pumps

Submersible Pump

Applications:

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions:

  • Maximum fluid temperature up to +35
  • Maximum sand content : 0.25%
  • Minimum well diameter : 2″

Motor and Pump:

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906

PUMP SPEC:

  • Max Head(ft): 105
  • Max Flow(Gpm): 13
  • Discharge: 1”
  • HP: 0.25
  • Pump Material: Stainless Steel 304
  • Pump Model: 2.5SDM2/8
  • Pump Diameter: 2.5″
  • Brand: Golpumps
  • Warranty: 1 Year Manufacture







G 2″/2.5″ SD

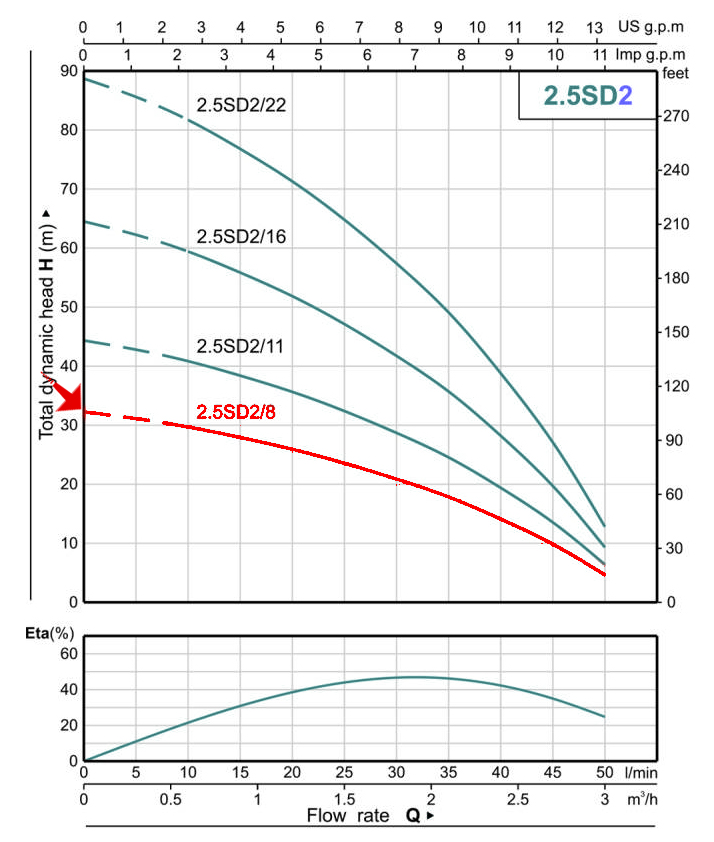

Performance Data

MODEL P2 DELIVERY    N = 3450 1/min
1~
110V / 220V		 KW HP Q m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
l/min 0 5 10 15 20 25 30 35 40 45 50
G 2.5SDM2/8 0.18 0.25 H (m) 32 31 30 28 26 23 21 18 14 9 4

Dimension and Weight

MODEL

DN

 DIMENSION(inch)           WEIGHT(lbs)

PUMP

1~

110V/220V

P

 M T P M T D1

D2

G 2.5SDM2/8

 1″ 15 17.5 32.5 6.6 15.2 21.1 66 65



Components

Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.



Additional information

Weight 22 lbs
Dimensions 2.6 × 2.6 × 33 in
