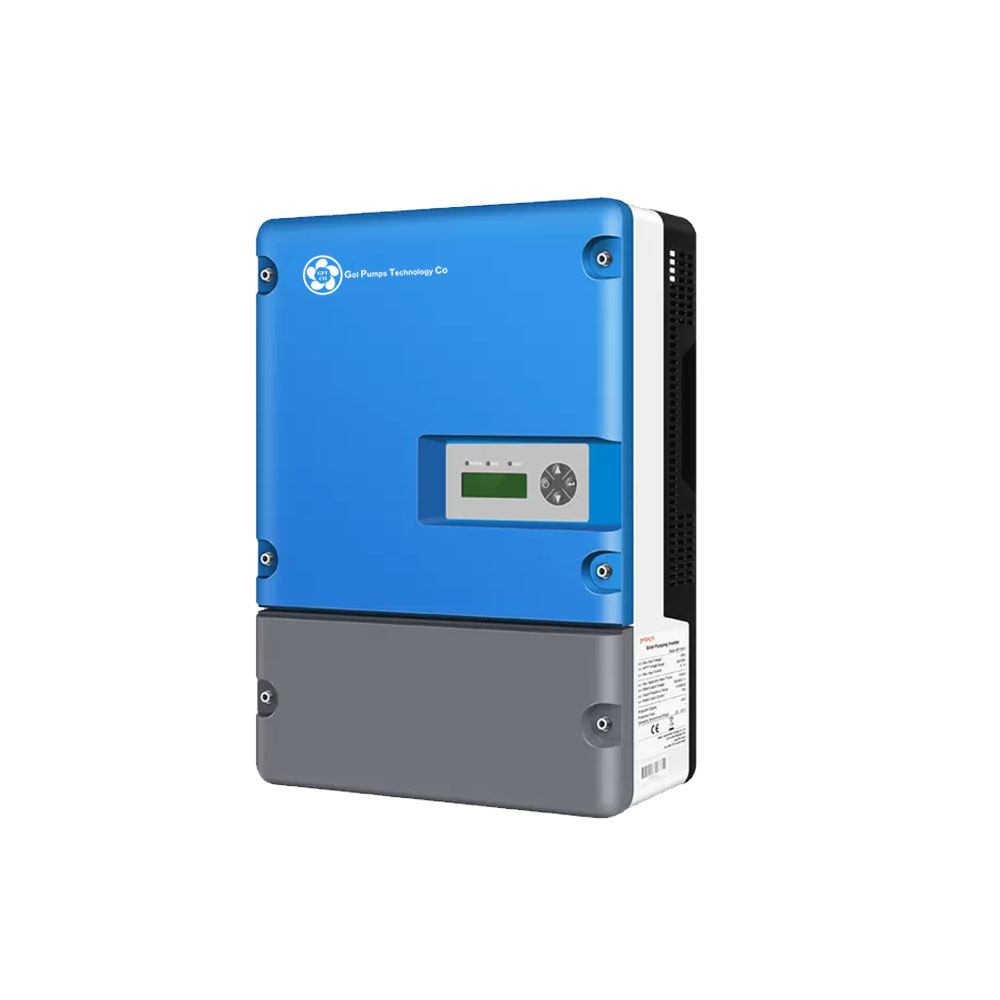

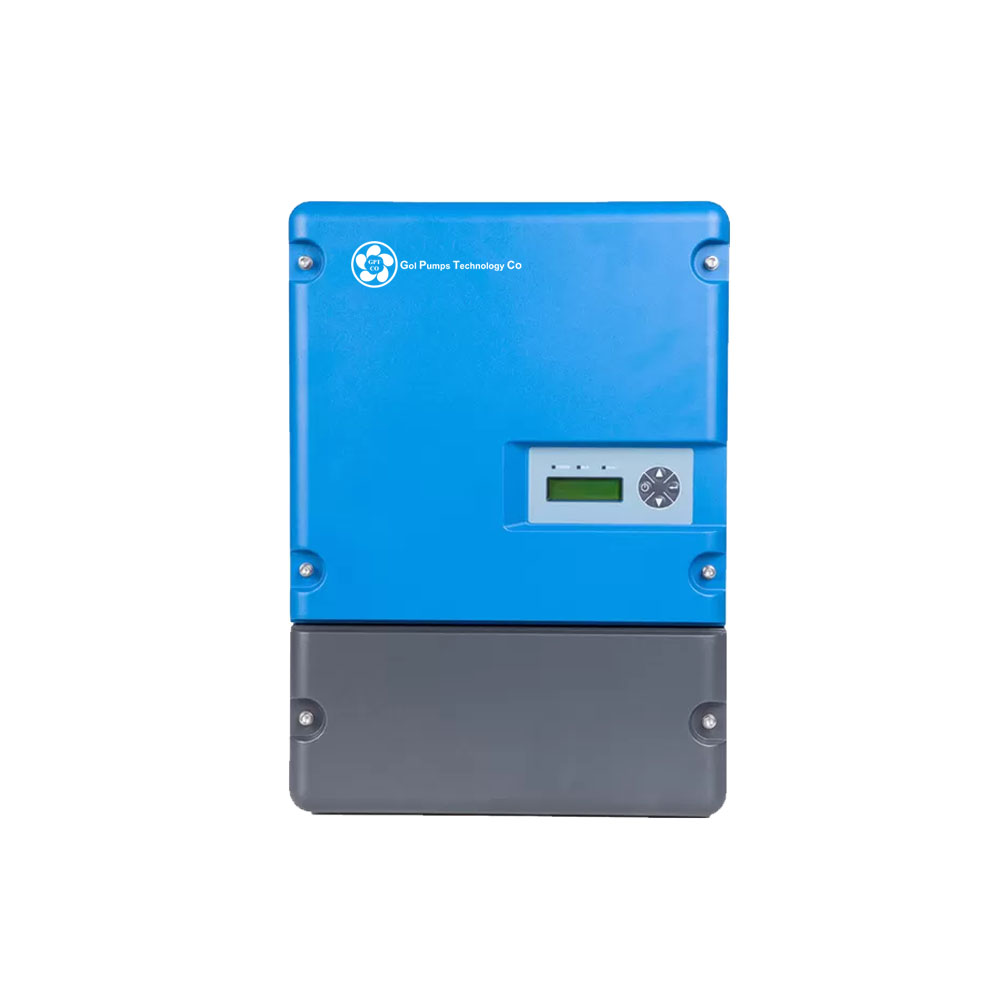

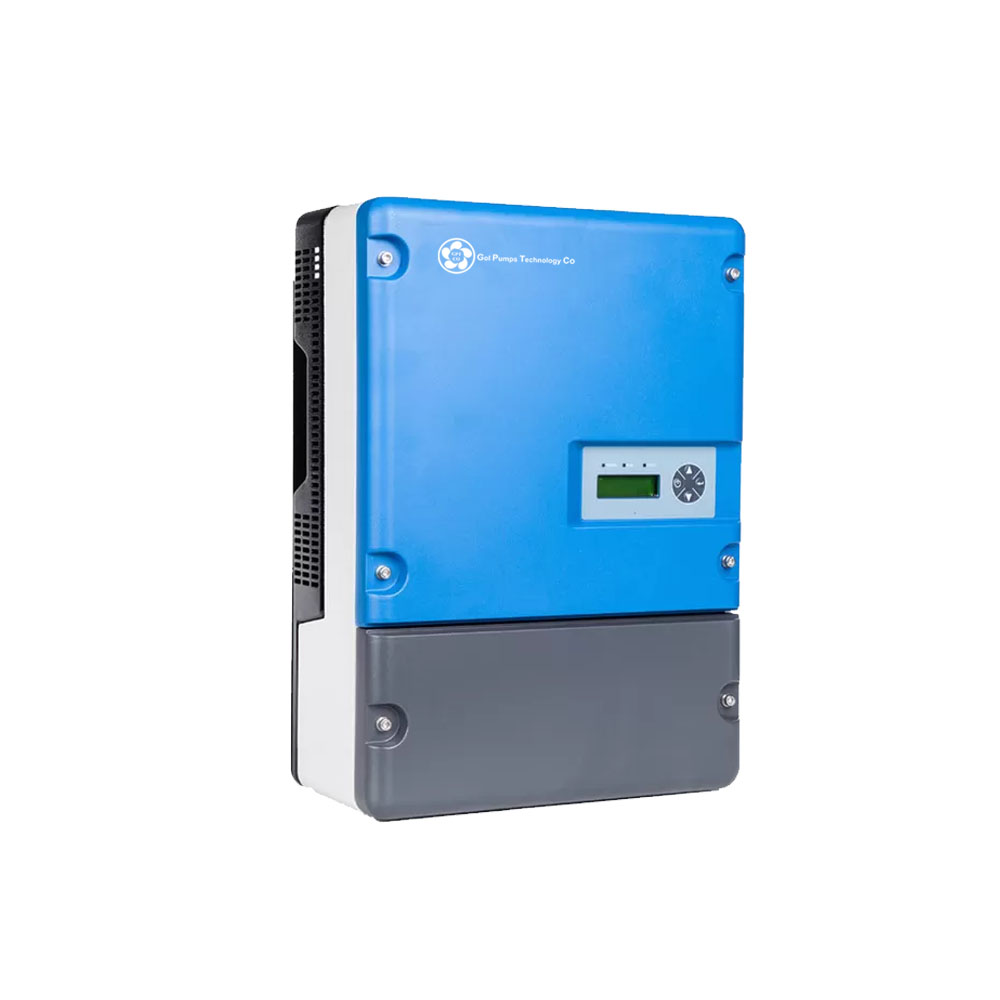

Solar Pump Inverter
AC Pump
$1,967.90
General Solar System Introduction (AC system)
Solar pumping system consists of four parts: solar panels, solar pumping inverter, Single/three-phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.
The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels. It will make the system to maximize efficiency to get the water as much as possible.
The solar pumping system fulfills concept of low energy conservation, environmental protection to improve the living standard in water-deficient area.
AC Pump
| Model | GLP1K5L |
|---|---|
| D.C. Input | |
| D.C. Max Input Voltage | 440Vdc |
| Recommended MPPT Voltage | 150~400Vdc |
| D.C. Max Input Current | 14.6A |
| Max. MPPT Efficiency | 99% |
| Number of String | 2 |
| A.C. Output | |
| Max. Motor Output Power | 2.2 kw |
| Rated Output Voltage | 220~240V, Three Phase |
| Output Frequency Range | 50/60Hz |
| Rated Output Current | 11A |
| Other Parameters | |
| Weight(lbs.) | 21 |
| Dimension (L*W*H) inches | 13.7″ * 11″ * 7″ |
| Protection Class | I |
| Protection Level | IP65 |
| Operating Temperature (°F) | -77°F ~ 140°F |
| Cooling Way | Natural Cooling |
| Display | LCD |
| Communication | RS485/GPRS |
| Altitude (ft.) | 9842 |
| Noise Emission | <50dB |
| Compliance | EN50178;IEC/EN62109-1 |
When solar panels are wired in a series, voltage is additive, but the amperage stays the same. But if you parallel wired panels the amperage would be additive, while the voltage remains the same.
