Description
Technical Data
Description

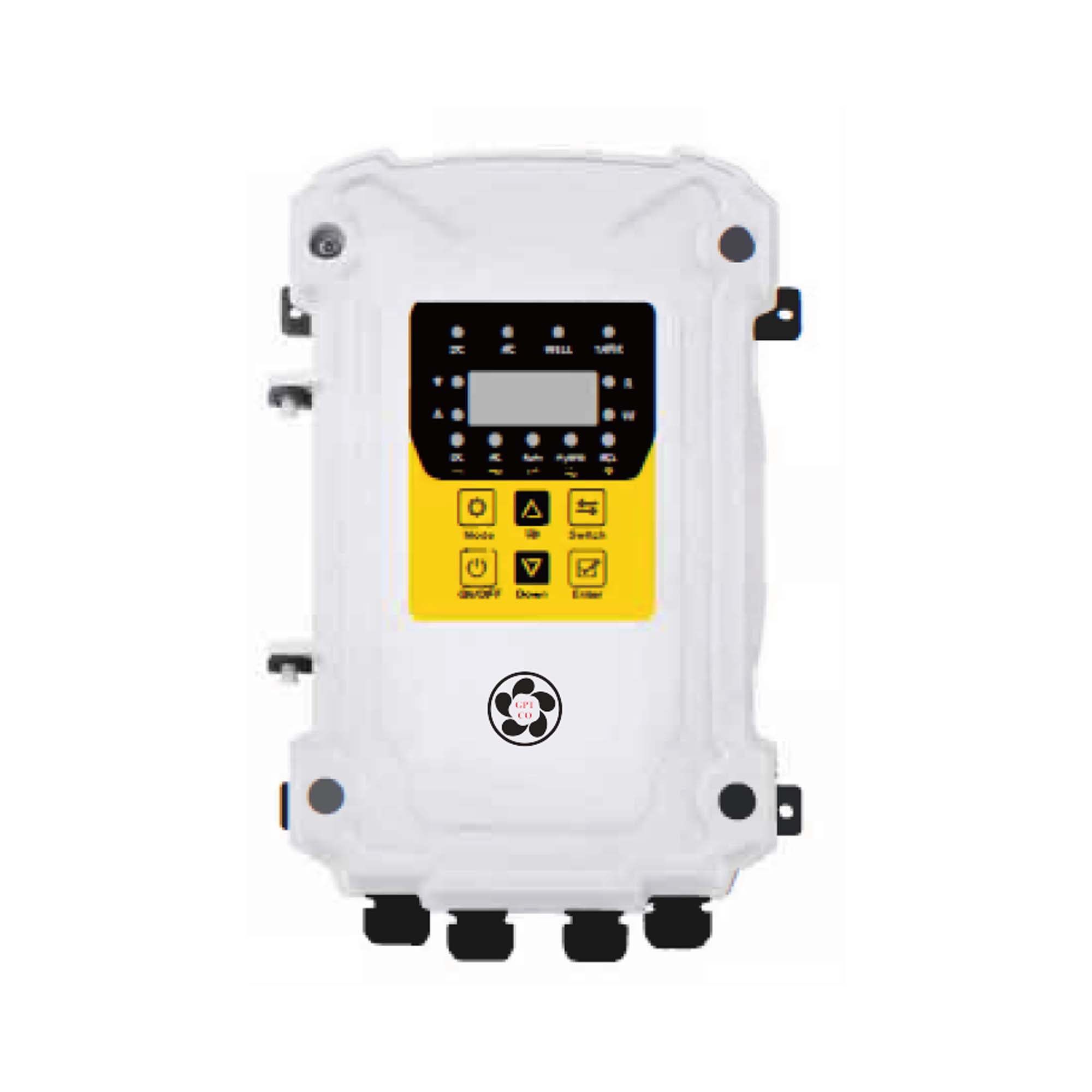

The DC/AC Hybird solar inverter is an off-grid solar inverter which support AC & PV input together. IT can be connected to the grid or a generator as complementary or back-up power during solar panel power weakness.
It is designed for continuous as well as intermittent operation. The system is suitable for various water supply systems including irrigation.
Features
– IP65 Designed
– MPPT software up to 99% efficiency
– Integrate multiple protection functions to extend service life
– Dry run, low speed, minimum power, over currect, constant pressure control
– Support AC&PV input together, AC bypass function
| Model | GTGP-2-2.2 | |
|---|---|---|
| Inverter Power | 2.2KW | |
| Inverter rated output current | 15A | |
| Suitable PMSM / BLDC pumps | Pump’s Voltage | DC-300V |
| Pump’s Frequency | According to the manufacturer’s design | |
| Pump’s Phase | 3xPhase | |
| Suitable AC pumps | Pump’s Voltage | 220V~240V |
| Pump’s Frequency | 50/60Hz | |
| Pump’s Phase | 1xPhase, 3xPhase | |
| Input AC power – Gird or generator | (L,N)1xPhase 85–300V / 50/60Hz | |
| Input DC power – PV panel or battery | Max input DC Voltage(VOC) | 450 |
| Min DC Working Voltage(V) | 80 | |
| MPPT Working Voltage(V) | 80-400 | |
| Performace | ||
| Control mode | Motorcontrol technology | |
| Type of motor | Permanent magnet synchronous motor and asynchronous motor | |
| Efficiency | 99% | |
| Enclosure class | IP65 | |
| Installation | Wall mounting | |
| Other Parameters | ||
| Cooling | Fan Cooling | |
| HMI | LCD screen | |
| Working environment | ||
| Ambient temperature | (-25℃~60℃) | |
| Working altitude | 3000m | |
| Warranty | 18 months | |
Dimension
| Other Parameters | |
| Dimension(L×W×H inch) | 16.54 × 12.20 × 8.27 |
| Weight(lb) | 14.3 |
| Protection | IP65 |
| Cooling | Natural Cooling |
| HMI | LCD screen |
