Description

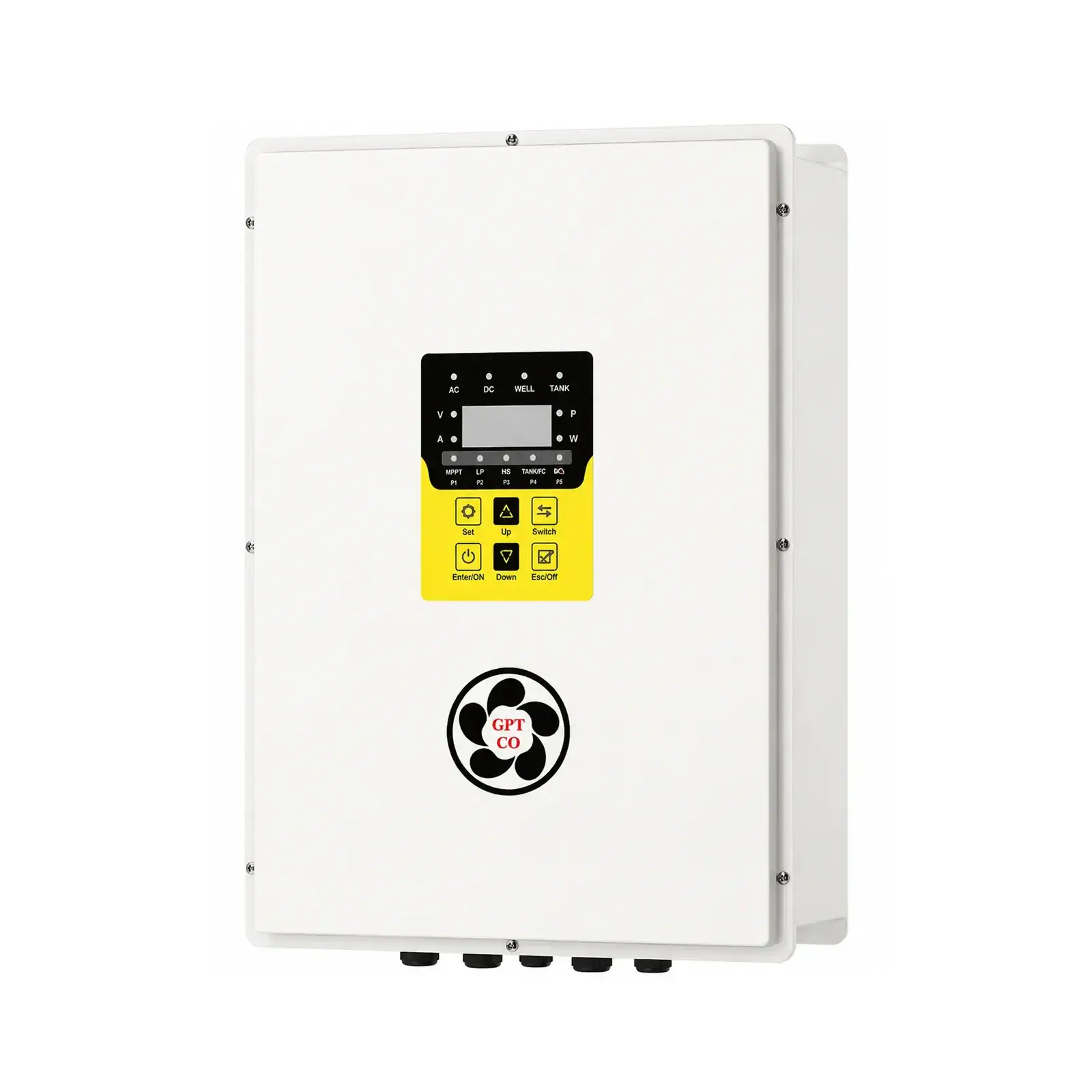

The DC/AC Hybird solar inverter is an off-grid solar inverter which support AC & PV input together. IT can be connected to the grid or a generator as complementary or back-up power during solar panel power weakness.
It is designed for continuous as well as intermittent operation. The system is suitable for various water supply systems including irrigation.
Features
– IP65 Designed
– MPPT software up to 99% efficiency
– Integrate multiple protection functions to extend service life
– Dry run, low speed, minimum power, over currect, constant pressure control
– Support AC&PV input together, AC bypass function
| Model | GVGP-3-15 | |
|---|---|---|
| Inverter Power | 15KW | |
| Inverter rated output current | 32A | |
| Suitable PMSM / BLDC pumps | Pump’s Voltage | DC-500V |
| Pump’s Frequency | According to the manufacturer’s design | |
| Pump’s Phase | 3xPhase | |
| Suitable AC pumps | Pump’s Voltage | 380V~480V |
| Pump’s Frequency | 50/60Hz | |
| Pump’s Phase | 3xPhase | |
| Input AC power – Gird or generator | (R,S,T)3xPhase 200–600V / 50/60Hz | |
| Input DC power – PV panel or battery | Max input DC Voltage(VOC) | 900 |
| Min DC Working Voltage(V) | 200 | |
| MPPT Working Voltage(V) | 200-850 | |
| Performace | ||
| Control mode | Motorcontrol technology | |
| Type of motor | Permanent magnet synchronous motor and asynchronous motor | |
| Efficiency | 99% | |
| Enclosure class | IP65 | |
| Installation | Wall mounting | |
| Other Parameters | ||
| Cooling | Fan Cooling | |
| HMI | LCD screen | |
| Working environment | ||
| Ambient temperature | (-25℃~60℃) | |
| Working altitude | 3000m | |
| Warranty | 18 months | |
