Description

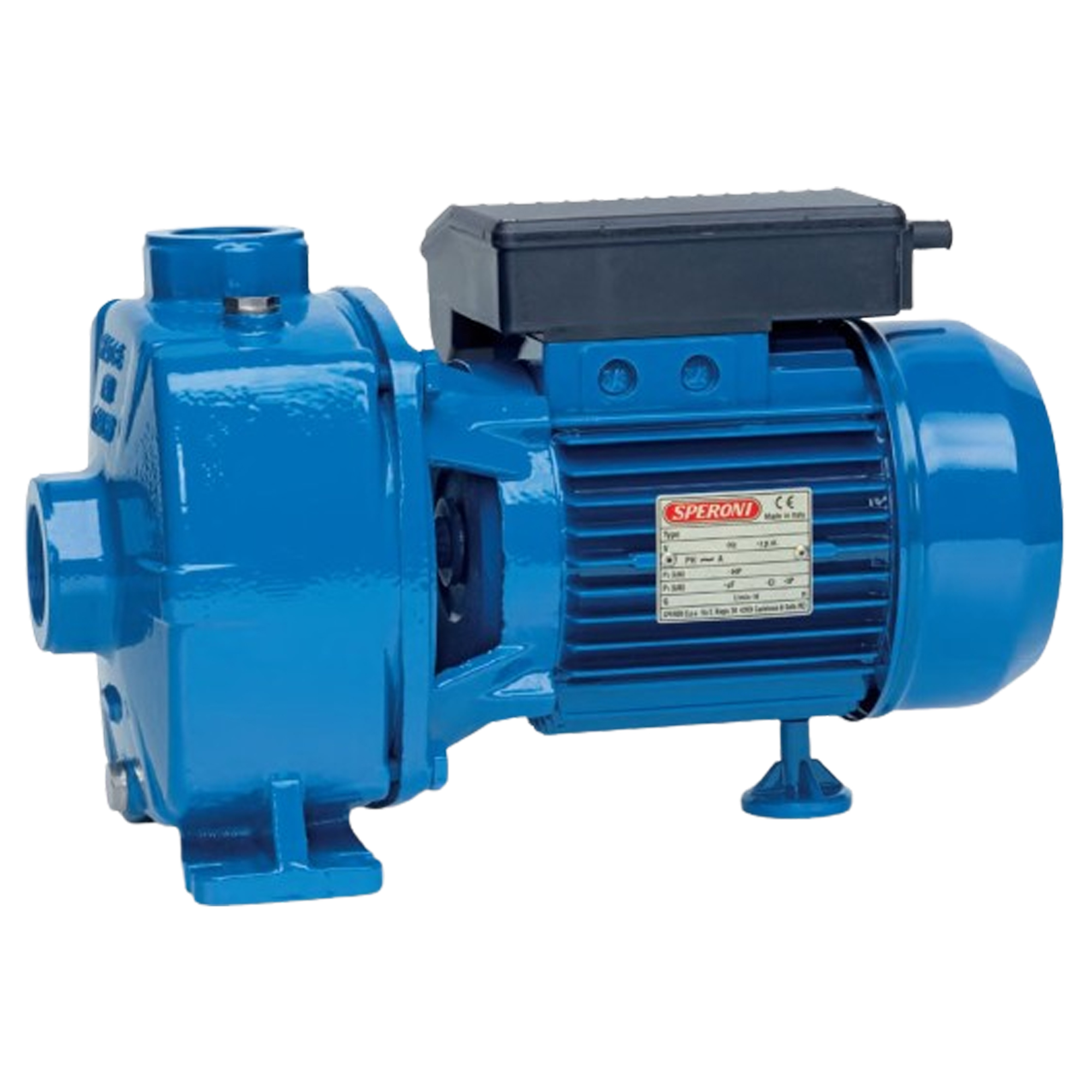

The Speroni NBM 150/B SP BR is a twin impeller centrifugal pump that can be used for lifting clear water and non aggressive liquids.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 35°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 35°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 M
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model. They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.
Technical Specifications
| Model | NBM 150/B SP BR |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 53.5lb |
| Port Size (in.) | 1″ 1/2 & 1″ 1/4 |
| Maximum Flow (GPH) | 2760 GPH |
| Maximum Head (ft) | 131ft |
| Horsepower | 1.5HP |
| Volts | 220V – 60Hz |
| Suction Port (in.) | 1″ 1/2 |
| Discharge Port (in.) | 1″ 1/4 |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 19.3″ x 9.5″ x 12″ |
| Product Weight (lbs.) | 48.5lbs |
Dimensions
| Type | Dimensions | Dimensions | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | H | H1 | DNA | DNM | P | L | H | lb | |
| NBM 150/B SP BR | 4.2″ | 3″ | 15.3″ | 8″ | 6.3″ | 0.4″ | 9.3″ | 4.5″ | 1″ 1/2 | 1″ 1/4 | 9.2″ | 19.3″ | 11.6″ | 48.5 |
Performance Curve
Performance Table
| Type | Nominal Power | Input Power | Amperage | Capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220V – 60Hz | HP | KW | kW | 1 x 220v | GPM | 0 | 6.6 | 13.2 | 20 | 24 | 26.4 | 33 | 40 | 46 | 53 |
| NBM 150/B SP BR | 1.5 | 1.1 | 2 | 8.8A | lt/1′ | 0 | 25 | 50 | 75 | 90 | 100 | 125 | 150 | 175 | 200 |
| Head (ft) | 131 | 129 | 128 | 125 | 121 | 118 | 105 | 88.6 | 66 | ||||||
