Description

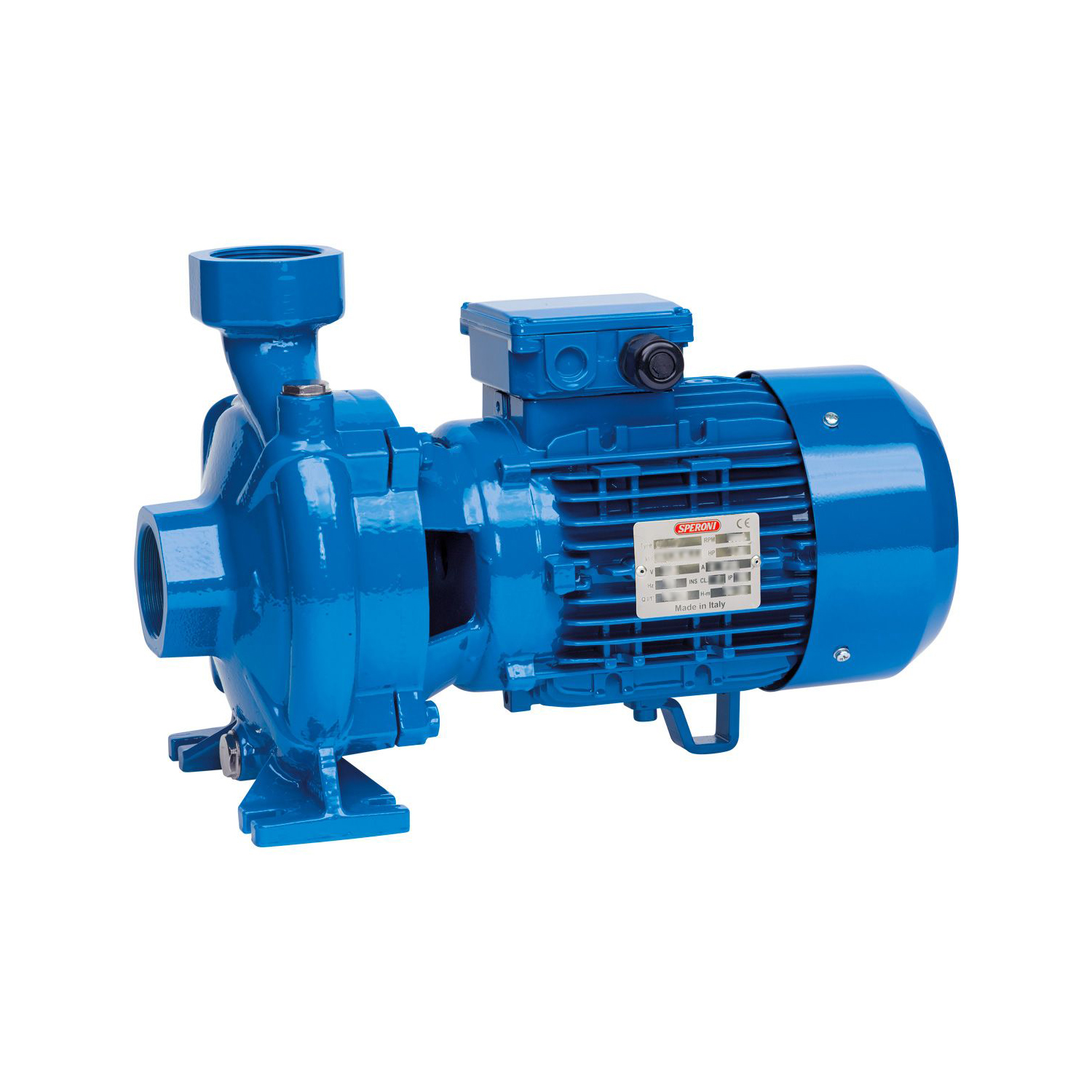

The Speroni CFM 150 BR is a brass impeller centrifugal pump that is great for pumping clear water and other non aggressive liquids.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 90°F (for other uses)
- Ambient temperature up to 40°F
- Total suction lift up to 7 mt.
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Centrifugal Monoblock pump with brass impeller. These machines are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. Used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system and any other general service requiring transfer of clean liquids.
Technical Specifications
| Model | CFM 150 BR |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 57.2 |
| Port Size (in.) | 2″ |
| Maximum Flow (GPH) | 5400 GPH |
| Maximum Head (ft) | 72ft |
| HP | 1.5HP |
| Volts | 220V – 60Hz |
| Suction Port (in.) | 2″ |
| Discharge Port (in.) | 2″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 10.2″ x 20″ x 13.6″ |
| Product Weight (lbs.) | 52.2lbs |
Dimensions
| Type | Dimensions | Dimensions | Weight | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | H1 | N | DNA | DNM | P | L | H | lb | |
| CFM 150 BR | 4″ | 2.2″ | 15.5″ | 8.3″ | 6.5″ | 0.5″ | 8.7″ | 11.3″ | 4.7″ | 2.7″ | 2″ | 2″ | 10.2″ | 20″ | 13.6″ | 52.2 |
Performance Curve
Performance Table
| Type | Nominal Power | Input Power | Amperage | Capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220V – 60Hz | HP | KW | kW | 1 x 220v | GPM | 26.4 | 33 | 39.6 | 52.8 | 66 | 79.3 | 92.5 | 105.7 | 118.9 |
| CFM 150 BR | 1.5 | 1.12 | 2.25 | 4.3 | lt/1′ | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (ft) | 79′ | 75′ | 70.5′ | 61′ | 54′ | 47.5′ | 38′ | 28′ | ||||||
