Description
| Model | 7060205-3P |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 years Limited Warranty |
| Service Factor | 1.5 |
| Material | Stainless Steel 316 |
| Volts | 230V – Three Phase |
| In(A) | 4.4 |
| HP | 0.75 |
| KW | 0.55 |
| R.P.M | 3450 |
| PF Allowable load %
PF Overload Factor % |
0.75
0.83 |
| Efficiency(Allowable load%)
Efficiency(Overload Factor%) |
48.9
52.1 |
| Need Capacitor Box
Need Starter |
No
Optional |
| Cable section (AWG) | 14 |
| Cable length (ft.) | 4 |
| Dimensions L x W x H (in.) | 3.9 x 3.9 x 30 |
| Product Weight (lbs.) | |
| Production Country | Taiwan-Italy |
GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

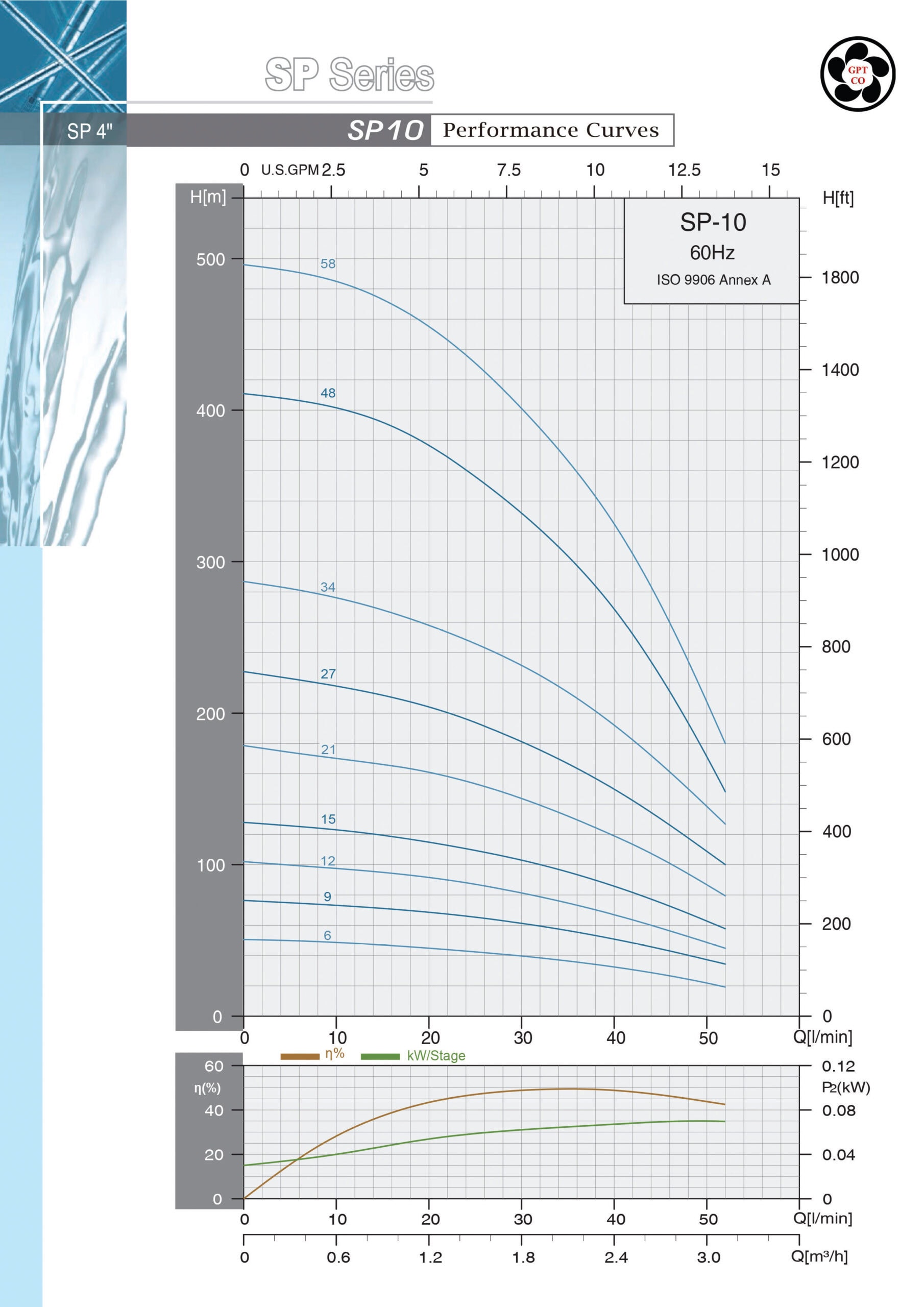

Performance Curves:
Selection Chart:
|
Pump Type |
Motor |
Q capacity 3450 rpm |
||||||||
|
P2 |
GPM |
0 |
5.3 |
6.6 |
7.9 |
9.2 |
10.5 |
13.2 |
||
|
KW |
HP |
|||||||||
|
SP-1012 |
0.55 |
0.5 |
Head in feet | 335 | 302 | 285 | 266 | 246 | 220 | 161 |
Dimensions and weights:
|
Pump Type |
Motor Dia. |
Dimensions(mm) |
Net Weight (Kg) |
|
|
A |
C |
Pump |
||
|
SP-1012 |
4″ |
419 |
98 |
3.6 |
MOTOR Materials:
- -Upper/Lower Bracket: AISI 316 Over Iron
- -Stator Shell: AISI 316
- -Shaft: AISI 630
- -Seal Cover: Nylon
- -Lip Seal: NBR
- -Diaphragm: NBR
- -Sand Slinger: NBR
- -Lead Wire (Cable): XLPE
- -Bolts and Screws: AISI 316
- -Lead Potting: Epoxy
- -Kingsbury Thrust Bearing: 402J2
PUMP SPEC:
- Max Head(ft): 335
- Max Flow(Gpm): 14
- Discharge: 1 ¼” NPT
- HP: 3/4
- Pump Material: Stainless Steel 316
- Pump Model: SP 1012
Product advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings Thrust pad
- Copper wiring
- Pressure equalizing diaphragm
- Removable lead connector
- Control boxes available for single phase motor Standard NEMA mounting dimensions
Technical specifications
- Upper bracket: Cataphoresis treated cast iron plus SS316 cover cap.
- Protection: IP68
- Nos. of start per hour: max 20 at regular intervals.
- Sand slinger and lip seal.
- Insulation: Class F
- Rated ambient temperature: 86°F with min.
- Cooling flow 0.08 m/s of water flow speed
- Standard installation position: vertical and horizontal
Made in Taiwan
