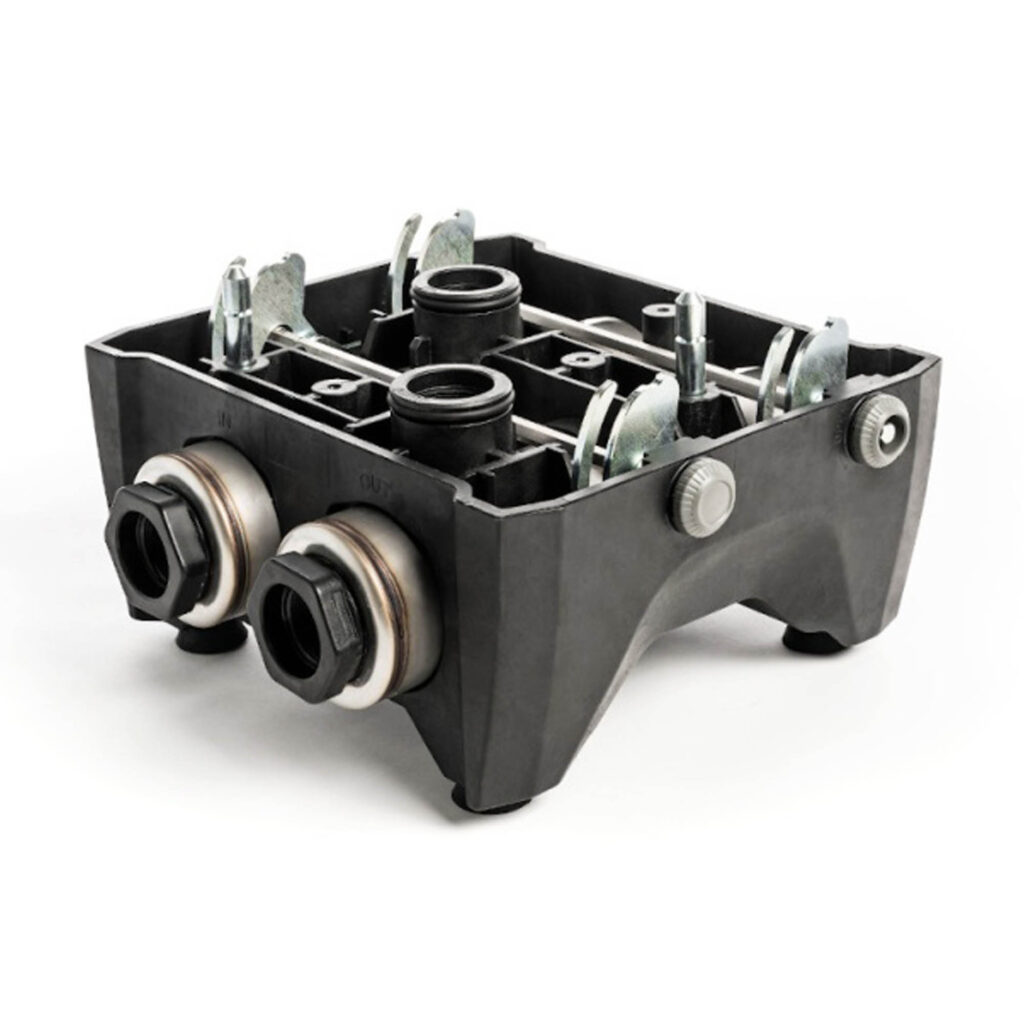

The DAB E.sybox Max Single Unit Docking Station provides a sturdy, pre-assembled base for installing a single E.sybox Max booster pump. Designed for easy connection and modular expansion, it ensures fast installation and reliable performance in residential, commercial, and industrial applications.

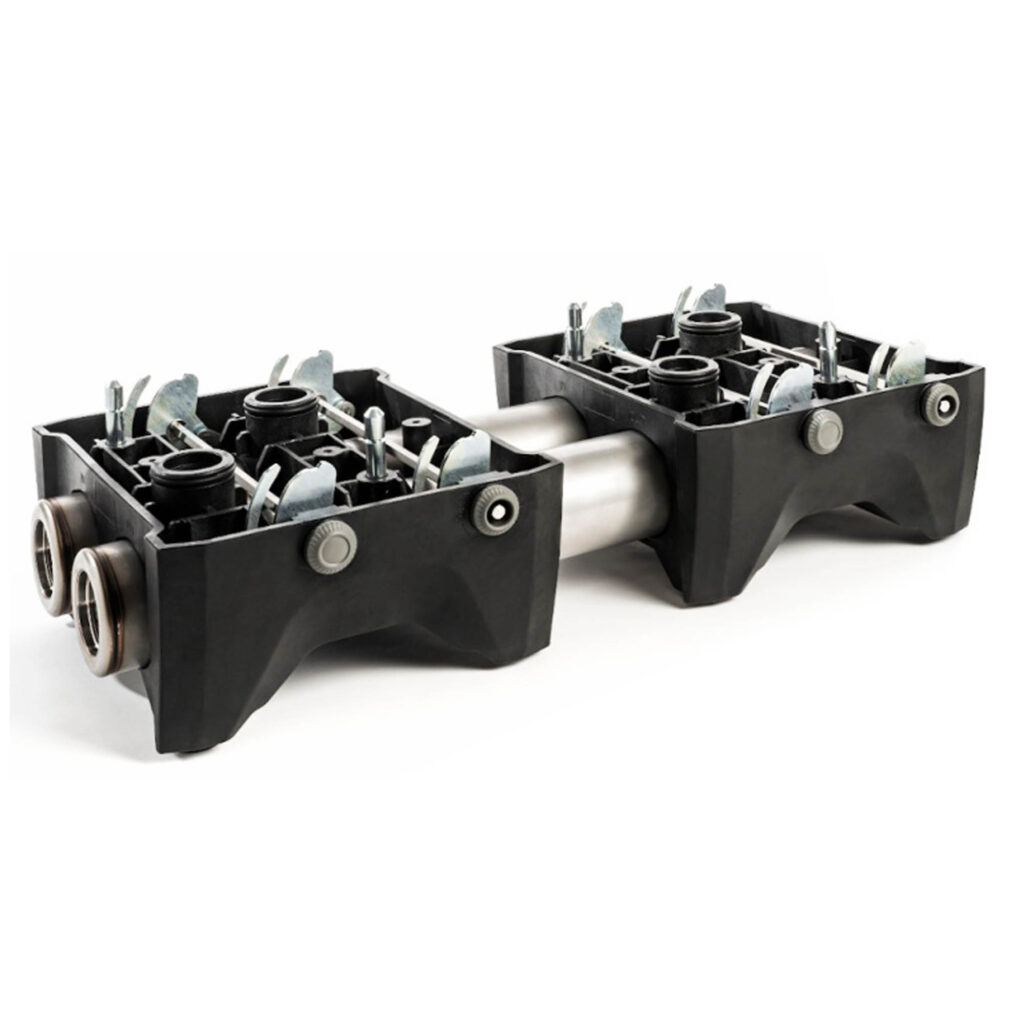

The DAB E.sybox Max Twin Unit Docking Station is a pre-assembled, modular base designed for quick installation of two E.sybox Max booster pumps. It provides a clean, secure, and expandable foundation for residential, commercial, and industrial water pressure systems.

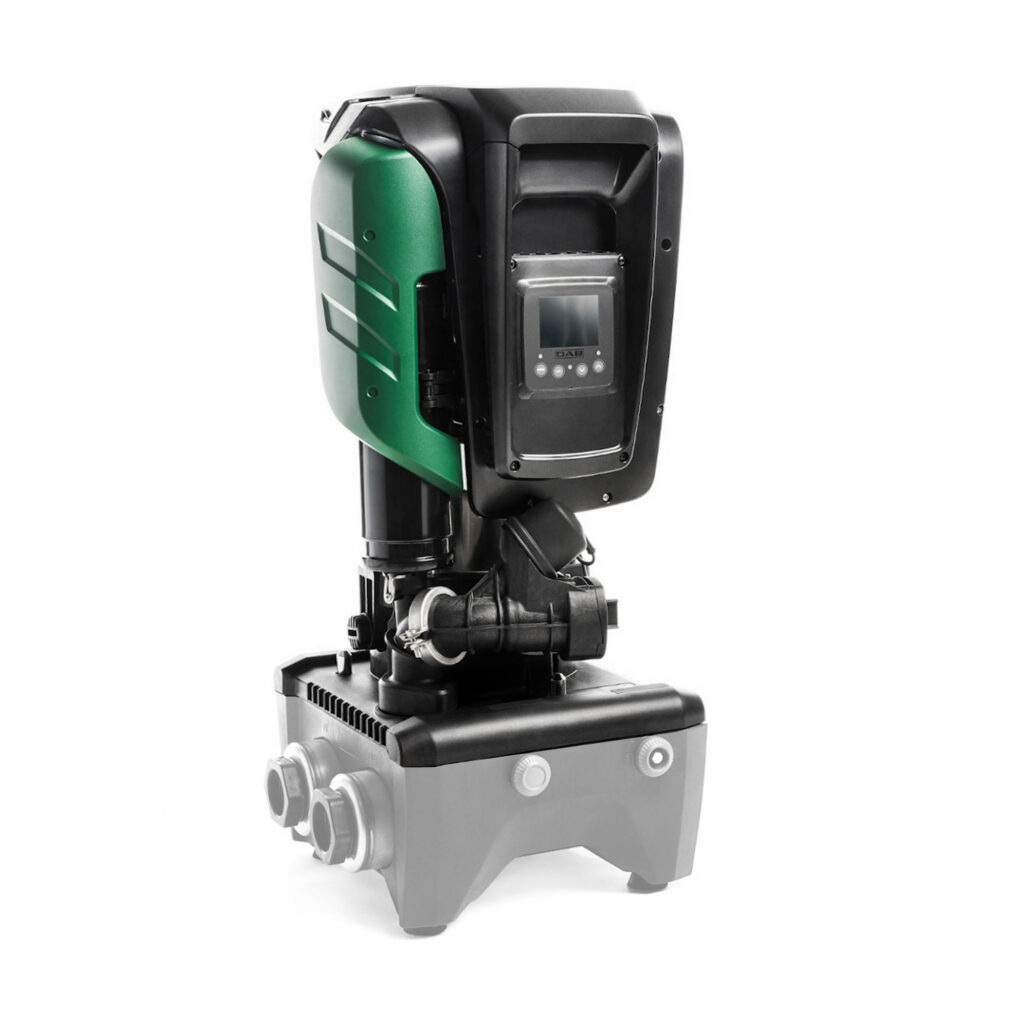

The DAB E.SYBOX MAX Electronic Water Booster System provides the comfort of constant water pressure, plus saves energy. Features a water-cooled motor, sound-dampening ABS housing and anti-vibration feet for very quiet operation
Integrated pumping system for pressurization in commercial building service. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of medium/large condominiums and high buildings (even over 14 floors). Each unit consists of the single, double or triple connection base and the pumping units; a four-pumps system is available with the additional kit to connect two double bases. The modular construction allows to assemble the pumping groups directly at the installation site (O.S.A. concept). The silence and compactness of dimensions allow installation in all rooms, even inhabited.
CONSTRUCTION FEATURES OF THE PUMP
Electronic vertical multi-impeller pump, with display, pressure sensors on intake and delivery, non-return valve on delivery and an integrated expansion tank. Pump body and impellers in technopolymer with steel jacket.
CONSTRUCTION FEATURES OF THE MOTOR
Water-cooled permanent magnet motor, stainless steel motor jacket. Motor shaft in AISI 303 stainless steel.
CONSTRUCTION FEATURES OF THE ELECTRONIC
The variable frequency drive keeps the pressure constant by varying the number of motor revolutions according to the request. The expansion module (esy I/O, available as an accessory) makes it possible to interface Esybox Max with the other elements of the system (BMS). Integrated protections: protection from dry running, amperometric and abnormal voltages, overheating, freezing, anti-blocking and anti-cycling.
DCONNECT
It is possible to configure and view the operating parameters on the large Esybox Max display or thanks to the DConnect app and the integrated Wi-Fi module, it is possible to do it remotely with an active DConnect service (an Internet connection is required). From a smartphone or a tablet it is possible to control and manage system pressure, alarms and check the instantaneous and historical consumption. With DSync technology, the user experience of Esybox Max is simplified. Using their smartphone or tablet, the installer interfaces with the pump that automatically detects the language, the time and the unit of measurement used in the Country of installation. In the case of a booster set, once the installation of the first pump is completed, the Esybox Max automatically synchronize the other pumps. The DSync also allows you to connect the pump to the outside world, through the Modbus protocol.
Made in Italy

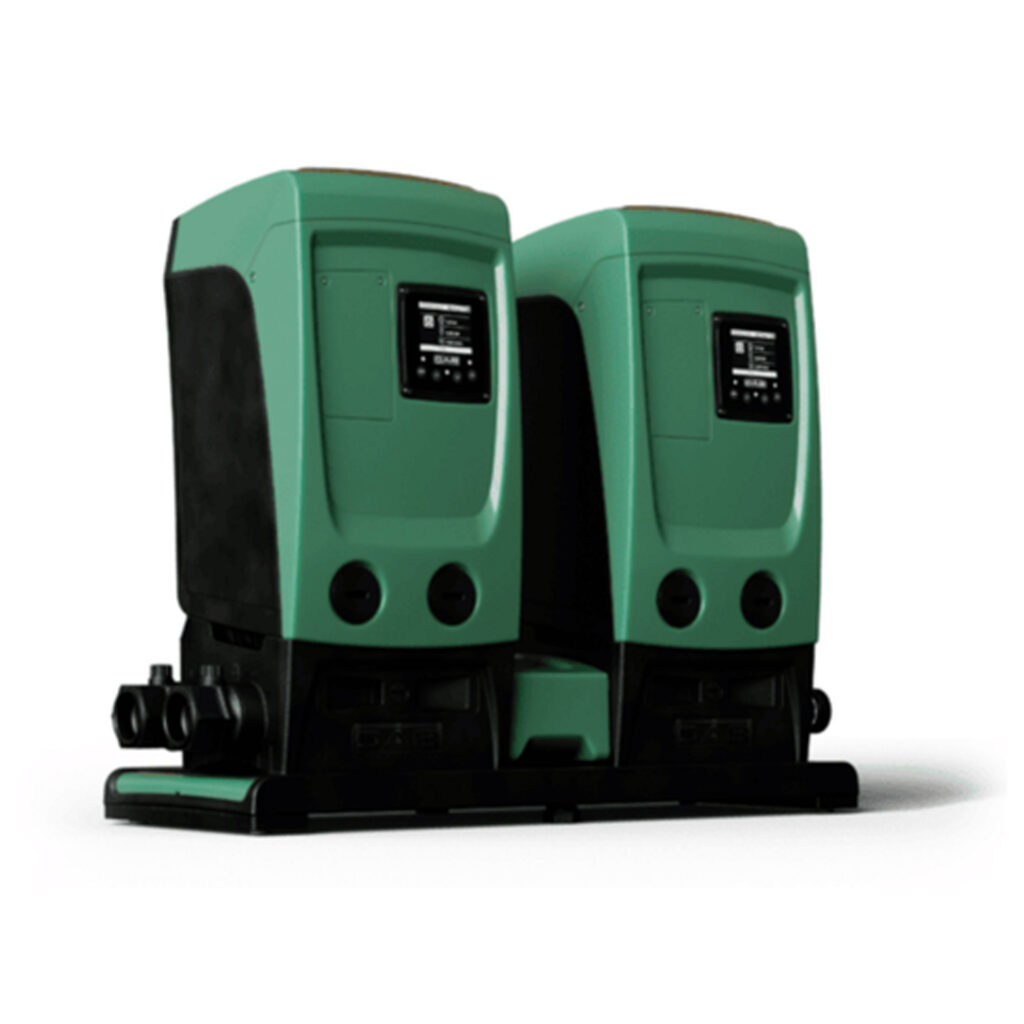

The DAB TWIN E.Syboxmini 3 Electronic Water booster pump Pressure System provides the comfort of constant water pressure and plus saves energy, also Features a water-cooled motor, sound-dampening ABS housing and anti-vibration feet for very quiet operation — just 45dB in normal use. Water Pressure System
Compact, Silent, and Efficient – The Perfect Booster Pump for Your Home

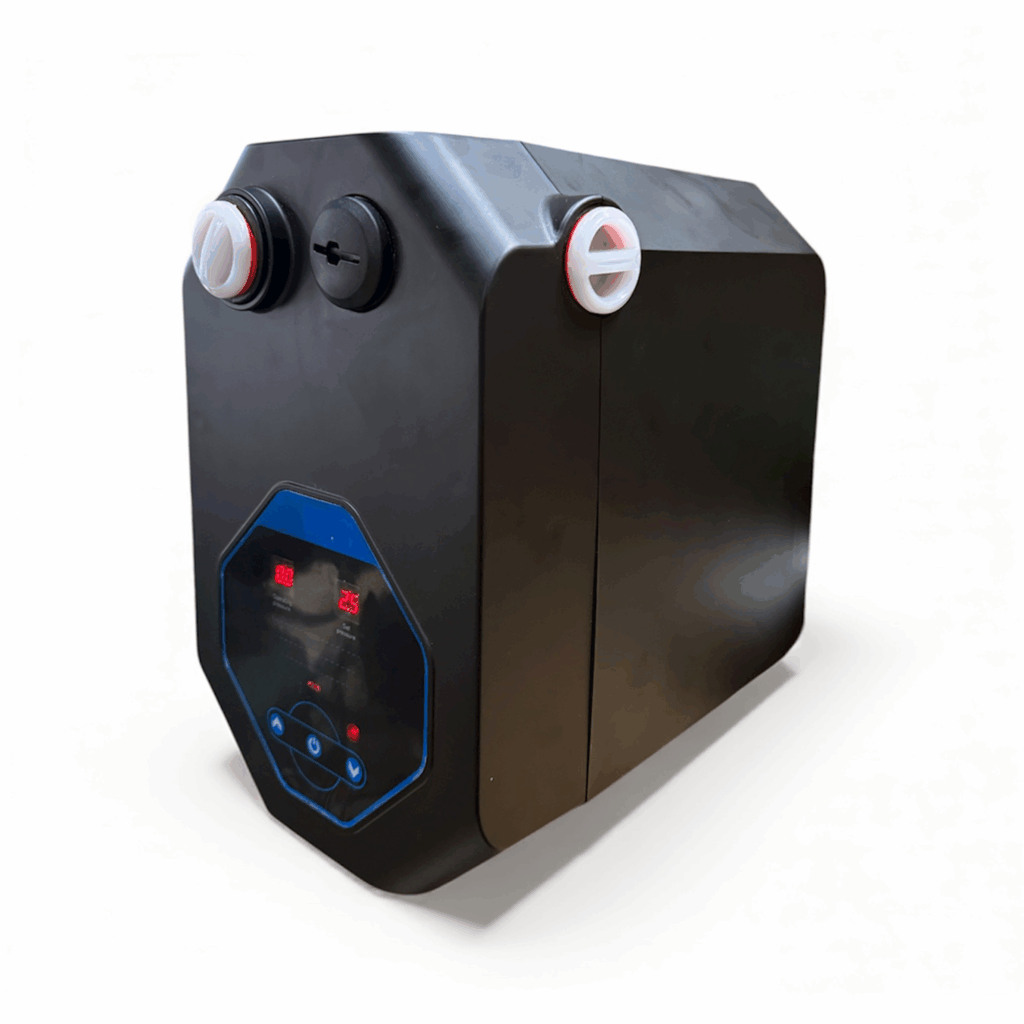

GC 300 Permanent Magnet Booster Pump
The GC 300 is a compact, energy-efficient multistage self-priming centrifugal pump designed for residential water boosting. With permanent magnet frequency technology, it delivers constant water pressure while saving over 30% energy. Operating at just 25–40 dB, it ensures ultra-quiet performance, reliable hot and cold protection, and stable flow across multiple outlets.
GC 500 Permanent Magnet Booster Pump
The GC 500 is a compact, energy-efficient multistage self-priming centrifugal pump designed for residential water boosting. With permanent magnet frequency technology, it delivers constant water pressure while saving over 30% energy. Operating at just 25–40 dB, it ensures ultra-quiet performance, reliable hot and cold protection, and stable flow across multiple outlets.

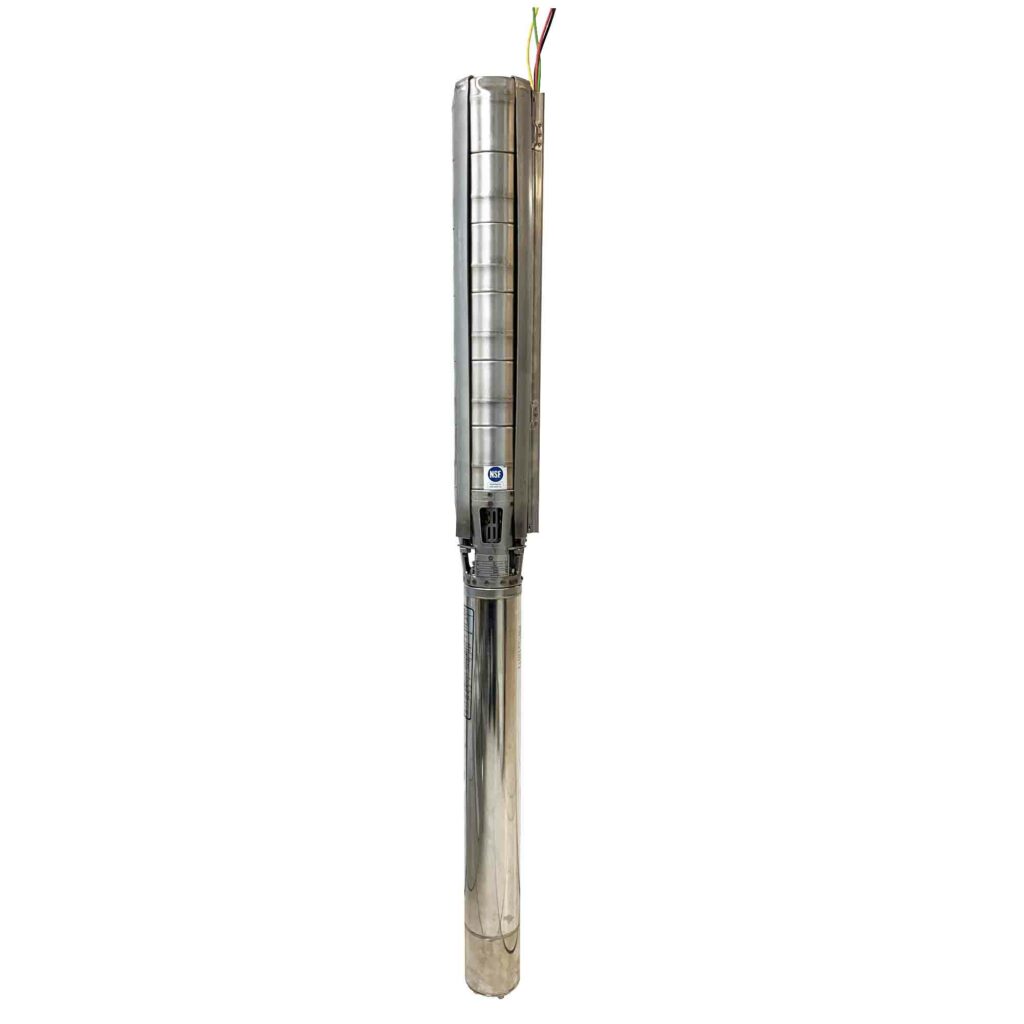

SP 6″ submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The SP series of pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction and long service life for the most demanding applications.
Clean, thin, non-aggressive and non-corrosive liquids without solid particles or fibers.

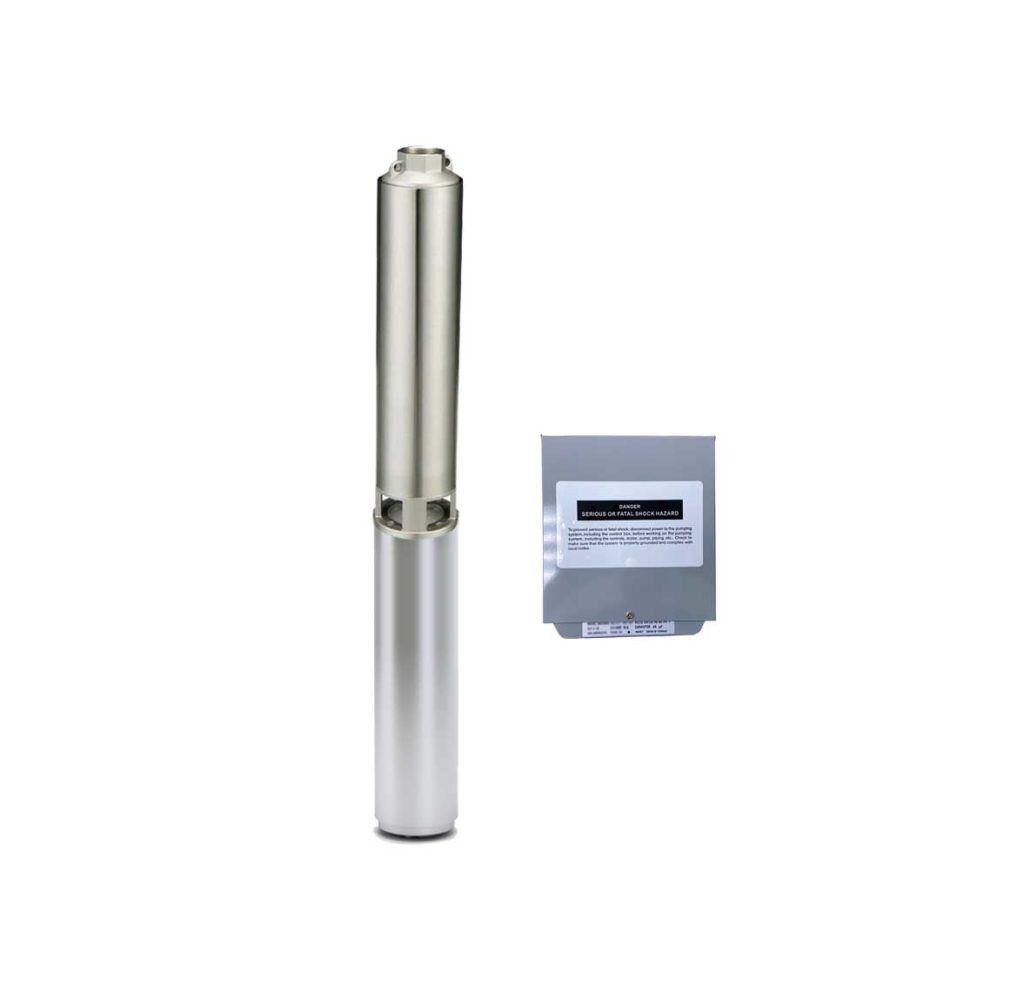

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.(Control Panel Included)
*(Includes wire splice kit)
Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.
*(Includes wire splice kit)
