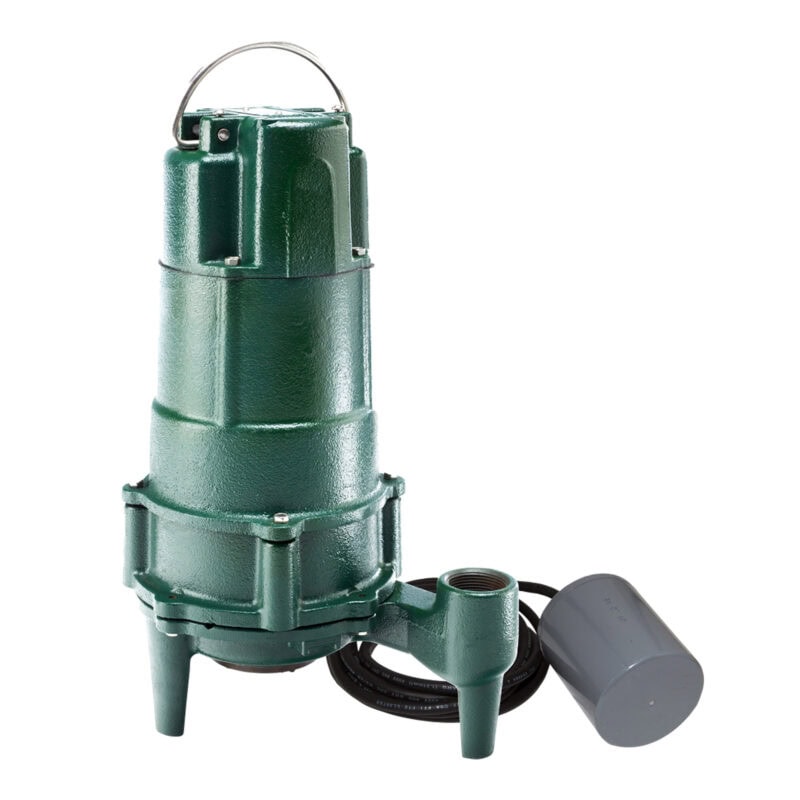

The Shark Series® Model BN805 Grinder Pump is designed to remove raw sewage in sewage ejector applications. The professional-grade, 3/4 HP 805 is a time-tested and reliable grinder pump. The BN805 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The industry proven “scissor like” Tri-Slice® cutter technology includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8″. The vortex impeller passes the slurry through the pump housing. This combination of features lessens the chance of clogging and downtime.
The Model 805’s motor housing, pump housing, and base are each constructed of cast iron. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 805 is able to withstand the most demanding sewage ejector applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.
Features and Benefits
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Nonautomatic pump with a time-tested, reliable piggyback float switch that makes for easy installation
- Proven Tri-Slice® cutter technology: Three independent cutting channels provide over 250,000 cuts per minute
- Piggyback float switch eliminates the possibility of water infiltration allowing the float to remain buoyant and functional at all times
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- Stainless steel screws, handle and hardware to prevent rust and corrosion over the life of the pump
- 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Curve

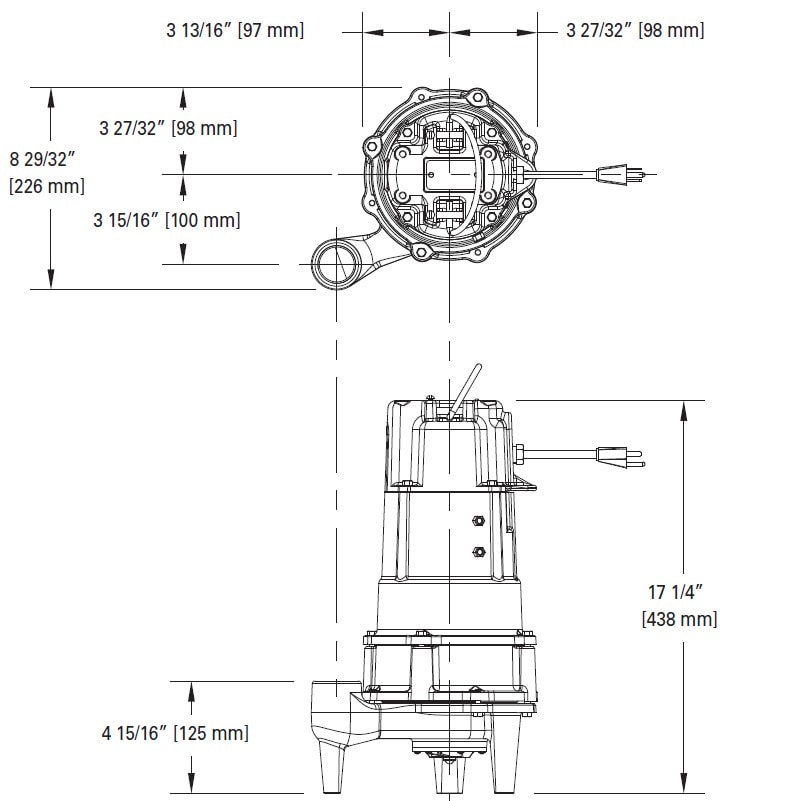

Product Dimensions
Product Specifications
Type: NonAutomatic
Weight: 65 lbs
Dimensions: Height 14 in x Width 7 1/2 in x Length 9 3/4 in.
Horsepower: 3/4HP
Voltage: 115 V
Phase: 1 Ph
Amps: 9.0
Hertz: 60 Hz
RPM: 3400
Discharge: 1 1/4″ NPT
Solids Handling: Slurry
On/Off Points: Variable level float switch, customer sets
Impeller Material: Engineered Plastic
Impeller Type: Vortex
Cord Length: 15′
Certificate: CSA – UL
