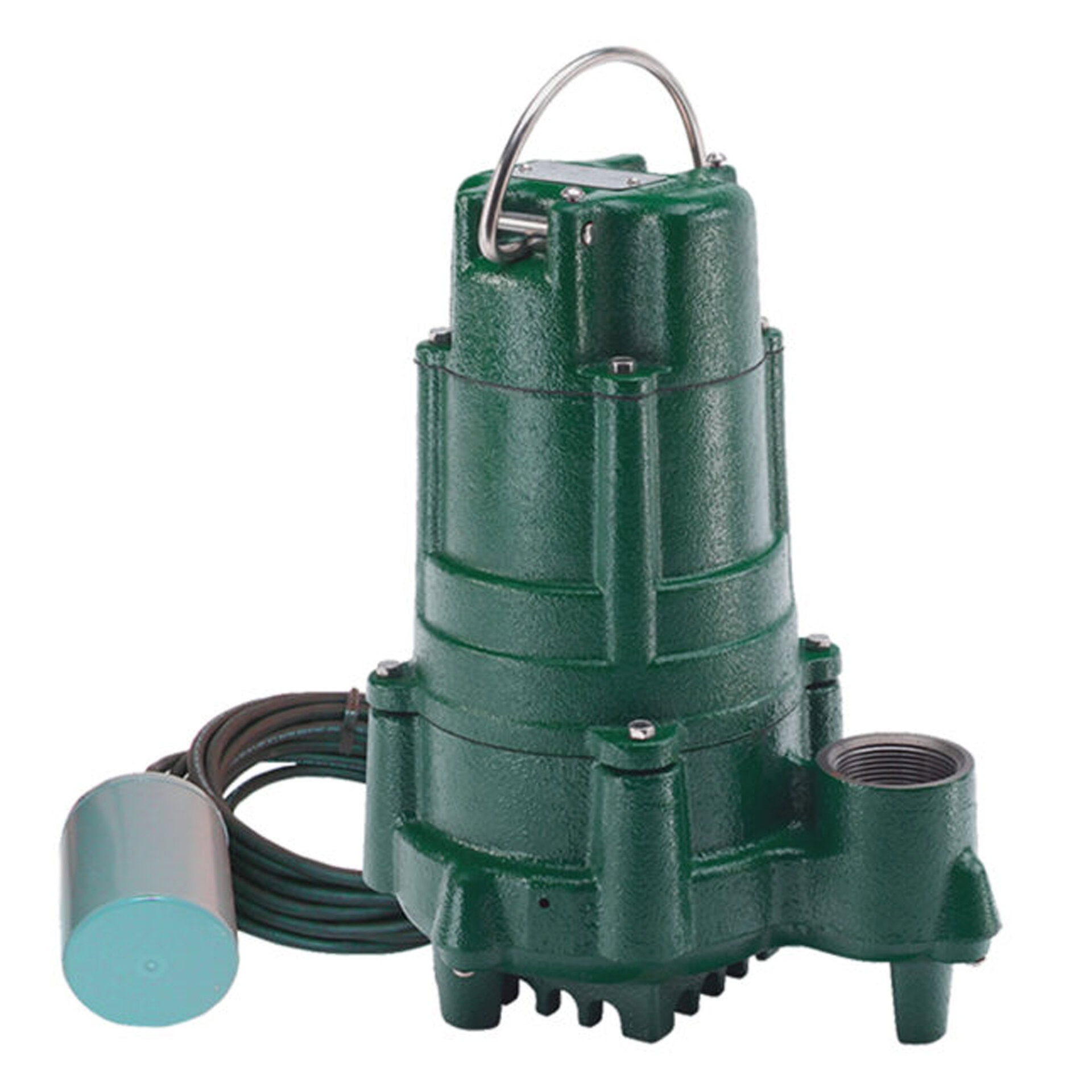

Our Model BN140 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1 HP Model 140 is known for its dependability. The BN140 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 140’s switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 140 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Features and Benefits
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Nonautomatic pump with piggyback variable level float switch which allows you to adjust the on / off level for optimal runtime
- Corrosion resistant engineered plastic vortex impeller to allow free passage of 2″ spherical solids which prevents clogging and increases reliability
- Stainless steel screws, handle, and piggyback switch pipe clamp to prevent rust and corrosion
- Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments
- 100% factory tested: Our factory-tested effluent pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures
- 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Product Curve
Product Materials and Dimensions
Product Specifications
Shipping Weight:
47 lbs
Shipping Dimensions:
Height 14 1/4 in x Width 8 63/1000 in x Length 10 7/8 in.
Horsepower:
1 HP
Voltage:
115 V
Phase:
1 Ph
Amps:
12.0
Hertz:
60 Hz
RPM:
3450
Discharge:
1-1/2″ NPT
Solids Handling:
1/2″ (12 mm) spherical solids
On/Off Points:
Variable level float switch, customer sets
Impeller Material:
Engineered Plastic
Impeller Type:
Vortex
Cord Length:
20′ (6 m), 20′ (6m) float switch
Certificate: CSA – UL
