Description

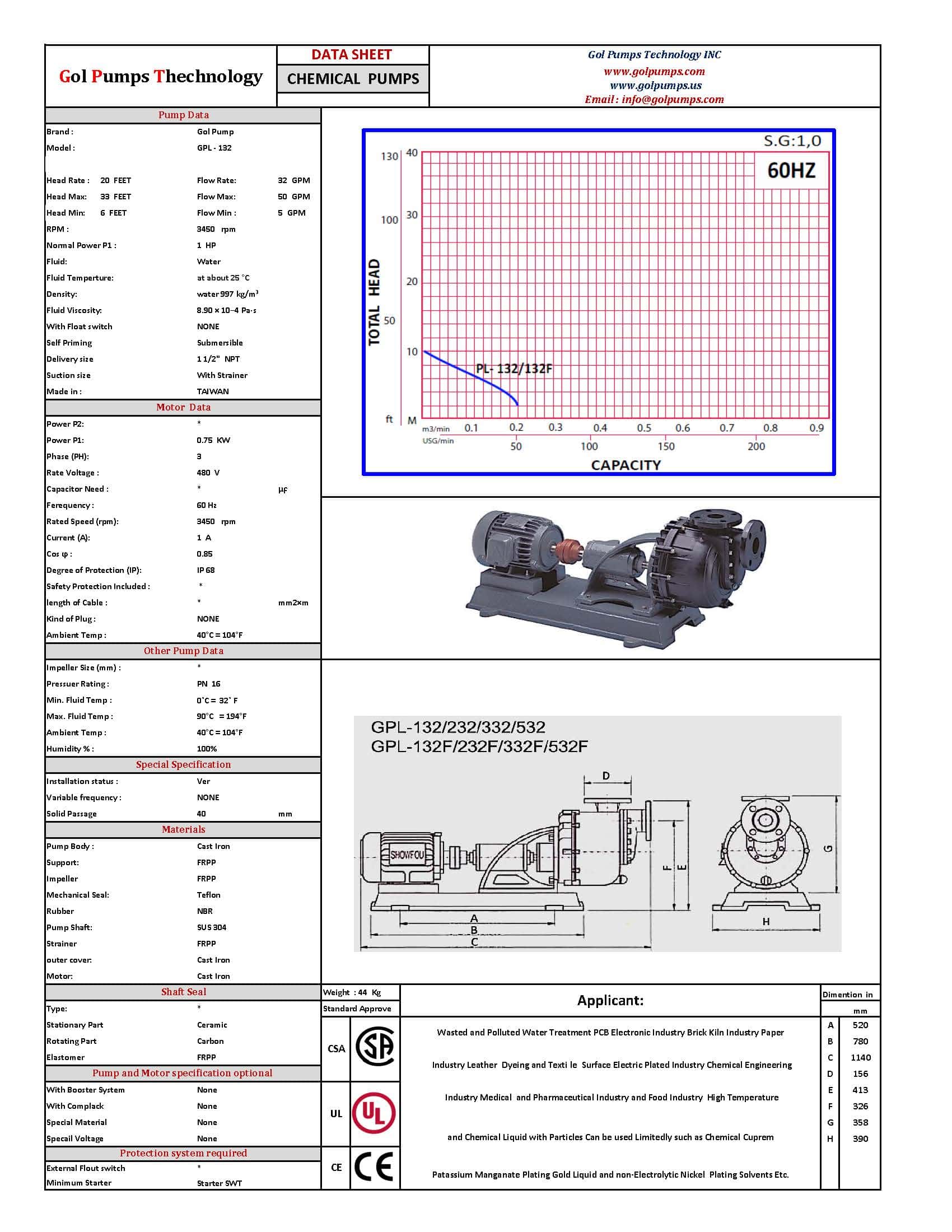

Download Data Sheet PDF | Download GPL-Manual
FRPP: Fiber Reinforced Polypropylene
- Equipped with Teflon Bellow Seal
- The weight of motor are not included
- Especially design for electroplating industries.
- The motors of PUPL-F need to be ordered separately
Applications
- Wasted and polluted water treatment.
- PCB electronic industry brick kiln industry.
- Paper industry, leather industry, dyeing and text.
- Surface electric plated industry.
- Chemical engineering industry.
- Medical and pharmaceutical industry and food industry.
| Hz | TYPE | S.G | MOTOR | PUMP | |||||
| FRPP | POWER | PHASE | VOLT | BORE SIZE | MAX. HEAD | MAX.FLOW | |||
| KW/HP | PH | V | INLET(INCH) | OUTLET(INCH) | FT | GAL/MIN | |||
| 60 | GPL-132 | 1 | 0.75KW/1HP | 1-3 | 115V-265/480V | 1 1/2 | 1 1/2 | 33 | 3012 |
More Spec.
| WEIGHT | HEIGHT | PUMP DIA |
| LBS | INCH | INCH |
| 97 | 16 | 45 |
Performance Curve:
Structure:
Dimensions:
Installation:
- For the first installation, please fill the pump the liquid to prevent the mechanical seal damage.
- Lay down a strainer at the suction inlet of pipe to avoid incoming rubbish and foreign matter, and we also recommend you to use a foot valve at the suction inlet of pipe to get even better performance.
- Place a check valve at discharge pipe line and air bypass under the check valve in order to avoid breakage by water hammer.
- In case of high temperature liquid over 40″C, place flexible joints and bending in pipe line to avoid piping load to pump by pipe’s expansion.
- Avoid deformation of pump by over-tightening when using a flexible joint, a loose flange made of metal or an inner packing on the piping line.
- Place each flange surface of pipe and pump in parallel and do not over-tightening by bolts.
- Use resin pipe, avoid metal pipe as much as possible.
