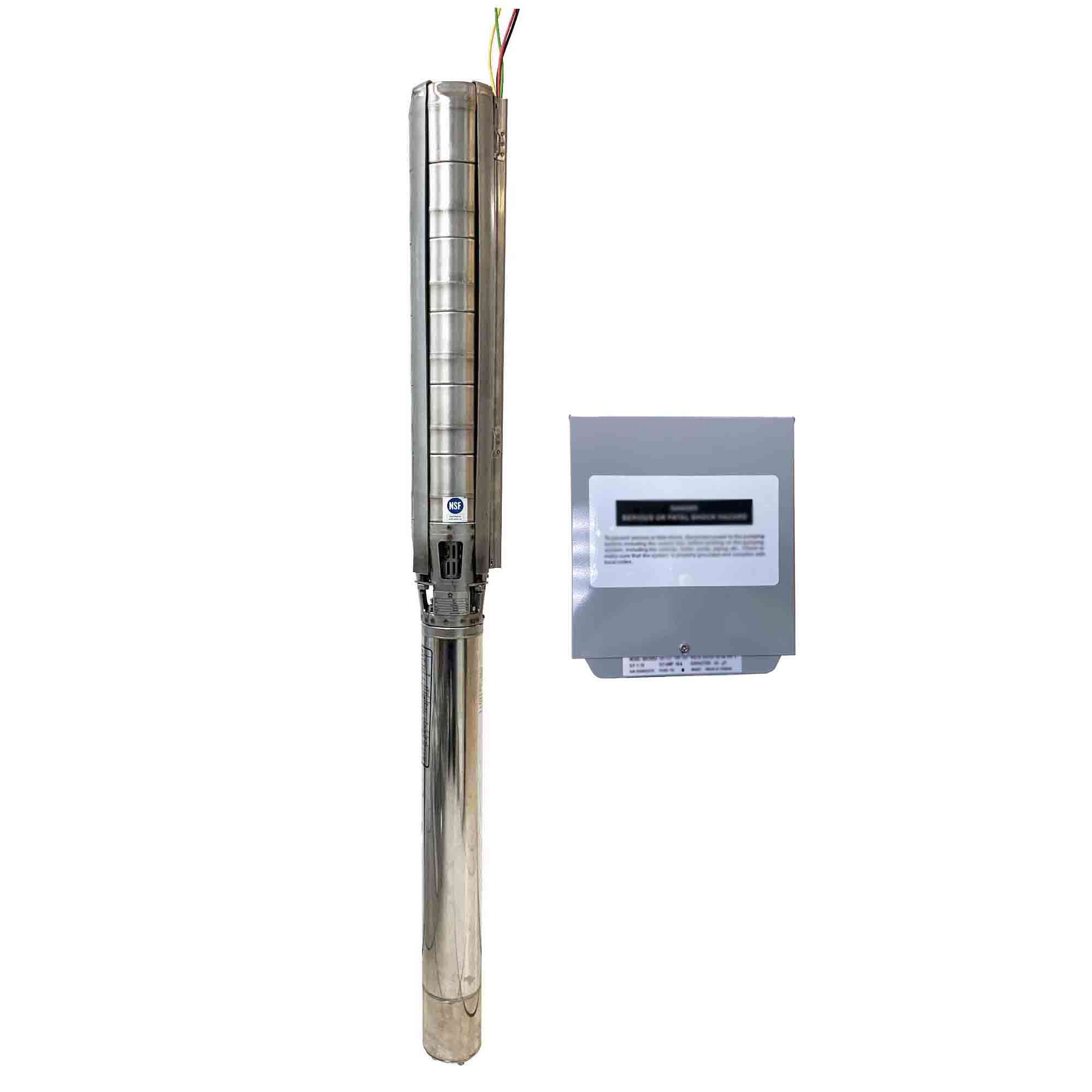

SP 6″ submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The SP series of pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction and long service life for the most demanding applications.
Unit Price Only
$3,773.68
Note: This item is heavy and delivery requires a forklift or loading dock for unloading only at commercial locations.
If the delivery address is residential and a forklift/dock is not available, please add the Liftgate + Non-Commercial Delivery Service from here:
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Model | Pump | SP 90-3 |
| Motor | 4CN6566D | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 3.7 |
| HP | 5 | |
| Service Factor | 1.15 | |
| Material | Pump | Stainless Steel 316 |
| Motor | Stainless Steel 316 | |
| Voltage – Phase | 230V – Single Phase | |
| Wire | 3 | |
| In | A | 22.9 |
| Imax | A | 26.2 |
| Istart | A | 106.7 |
| PF (%) | Allowable Load | 0.99 |
| Overload Factor | 0.99 | |
| Efficiency (%) | Allowable Load | 69.9 |
| Overload Factor | 69.3 | |
| R.P.M | 3450 | |
| Thrust | N | 6000 |
| Capacitor | UF | – |
| Cable | AWG | 14 |
| Length (ft.) | 8.2 | |
| Production Country | Taiwan | |

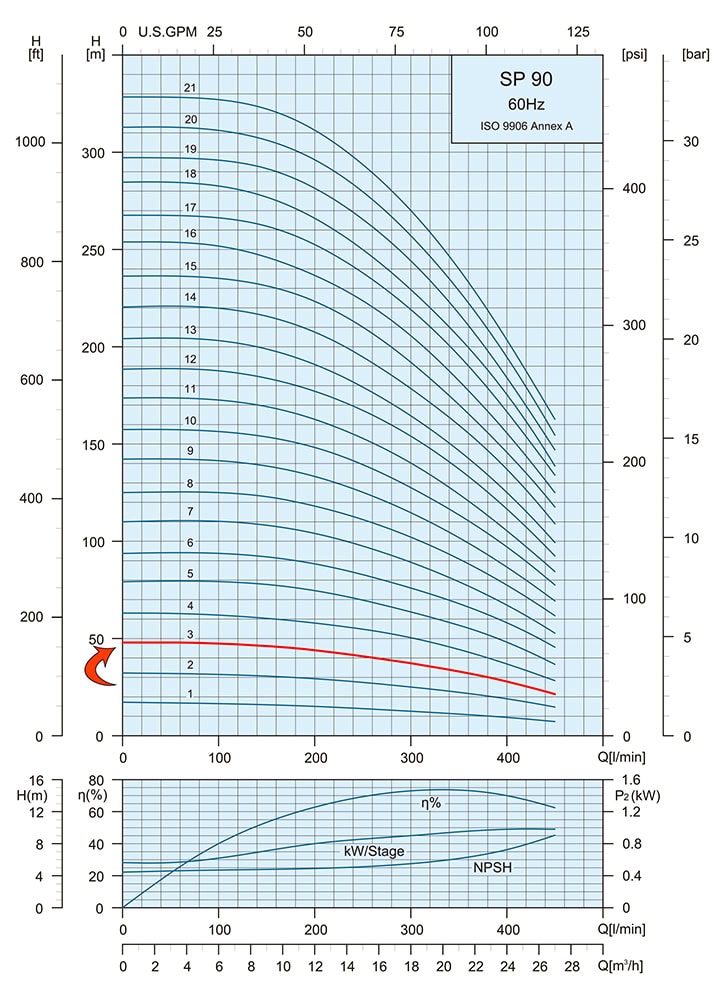

| Pump Model | Motor | Q Capacity 3500RPM | |||||||||
| kW | HP | Gal/Min | 26.4 | 39.6 | 52.8 | 66 | 79.3 | 92.5 | 105.7 | 118.9 | |
| SP 90-3 | 3.7 | 5 | Head (ft.) | 157.5 | 154.2 | 144.4 | 134.5 | 124.7 | 108.3 | 91.9 | 72.2 |
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | ||||
| A | B | C | Pump | Motor | Pump + Motor | ||
| NPT 3″ | 4″ | 18.3″ | 46″ | 5.2″ | 17.4 | 63.4 | 80.8 |
| No. | Part Name | Materials |
| 01 | Discharge | AISI 316 |
| 04 | Valve Cone | AISI 316 |
| 11 | Top Diffuser | AISI 316 |
| 12 | Diffuser | AISI 316 |
| 18 | Impeller | AISI 316 |
| 19 | Ring of Impeller | AISI 316 |
| 21 | Split Cone | AISI 316 |
| 22 | Split Cone Nut | AISI 316 |
| 26 | Spacing Washer for Stop Ring | Carbon + Graphite + PTFE |
| 23 | Neck Ring Retainer | AISI 316 |
| 34 | Strainer | AISI 316 |
| 36 | Suction Interconnector | AISI 316 |
| 37 | Pump Shaft | AISI 316 |
| 44 | Coupling | AISI 316 |
| 47 | Strap | AISI 316 |
| 52 | Cable Guard | AISI 316 |
| 86 | Valve Seat | AISI 316 + HNBR |
| 87 | Neck Ring Nut | AISI 316 + HNBR |
| 88 | Nut | AISI 316 |
| 89 | Bearing | HNBR |
| 90 | Screw | AISI 316 |
| 91 | Key | AISI 316 |
| 92 | O-ring | HNBR |
